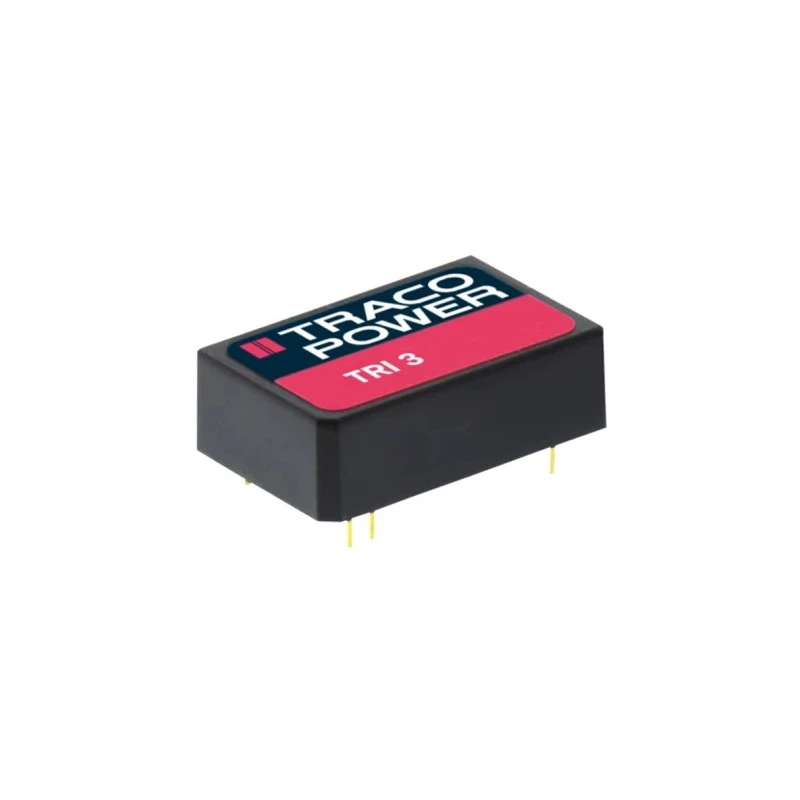

TRACOPOWER DC/DC Converter 12V DC Output, 290mA, 9V DC Input, 4.5V DC Input, 3.5W, Through Hole Mount, Max Temp TRI 3-0512
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 3 DC/DC Converter, 12V dc/ 290 mA |
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 31.8mm |
| Model | TRI 3-0512 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5815000h |
| Number of outputs | 1 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 290mA |
| Isolation Voltage | 7kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- High isolation voltage of 7kV DC ensures robust electrical isolation.
- Operating temperature range from -40°C to 90°C without derating.
- Efficiency rated at 83% for energy saving performance.
- DIP package with 7 pins for reliable through hole mounting.
- Highly durable with MTBF of 5,815,000 hours for long service life.
- Reinforced I/O isolation rated at 5000 VAC for industrial safety standards.
- Protection against overload, overvoltage and short circuit enhances reliability.
- Designed for industrial, electronic components, and power supply applications.
Product Description
TRACOPOWER TRI 3-0512 is a high-quality DC/DC Converter featuring a 12V DC output voltage with a maximum current of 290mA and power rating of 3.5W. This device operates within an input voltage range of 4.5V to 9V DC and utilizes a through hole DIP package with 7 pins for easy PCB mounting.
It offers reinforced IO isolation rated at 5000 VAC and ultra-high isolation peak voltage of 9000 VDC for 1 second, making it highly suitable for demanding industrial environments. The converter supports a 2:1 input ratio, ensuring flexibility in power input scenarios.
The unit operates efficiently at 83%, reducing power wastage and improving overall system energy consumption. Operating temperature range spans from -40°C to +90°C without derating, enabling usage in harsh environmental conditions. The product boasts a mean time between failures (MTBF) of 5,815,000 hours, reflecting its reliability for extended operation.
Its compact physical dimensions of 31.8mm length, 20.3mm width, and 12mm depth allow integration into space-constrained designs. The converter offers protection against overload, overvoltage, and short circuits, enhancing the safety and durability of connected systems.
Typical applications include industrial automation, electronic power supplies, telecommunications, and embedded systems requiring isolated DC power conversion. Its reinforced isolation and high efficiency cater to stringent electrical standards and demanding industrial use cases.
Country of origin is Taiwan, Province Of China, ensuring recognized manufacturing quality. The device is supplied as new with a standard 3-year warranty from TRACOPOWER. High isolation voltage of 7kV DC for system safety.
Wide operating temperature range (-40 to +90°C). Efficiency up to 83% reduces energy losses. Through hole DIP package with 7 pins. Robust protection features against electrical faults. Compact size suited for embedded applications.
Long MTBF ensures reliability in critical systems. Reinforced IO isolation rated at 5000 VAC. Input ratio of 2:1 for flexible voltage input. Designed for industrial, laboratory, and commercial power conversion needs. Discover more DC/DC Converter products from TRACOPOWER and explore comprehensive selections in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 12V DC output voltage with a maximum current of 290mA.
The converter operates within an input voltage range of 4.5V to 9V DC.
It has an efficiency rating of 83%, which helps in reducing energy losses.
The dimensions are 31.8mm in length, 20.3mm in width, and 12mm in depth.
This unit utilizes a through hole DIP package with 7 pins for mounting.
The maximum operating temperature is 90°C, allowing it to function in high-temperature environments.
It includes protection against overload, overvoltage, and short circuits, enhancing system reliability.
It has a high isolation voltage rating of 7kV DC, ensuring robust electrical isolation.
The MTBF is rated at 5,815,000 hours, indicating its reliability for extended operation.
Typical applications include industrial automation, electronic power supplies, telecommunications, and embedded systems.
The input ratio is 2:1, providing flexibility in power input scenarios.
The country of origin for this product is Taiwan, Province Of China.
