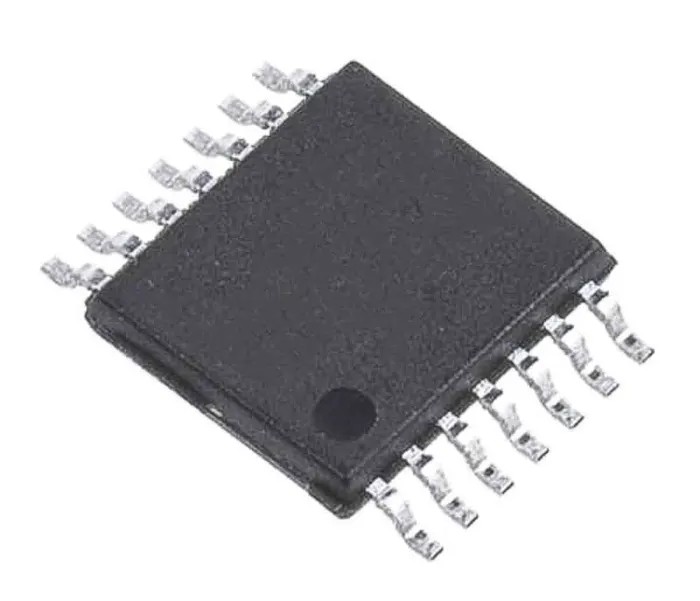

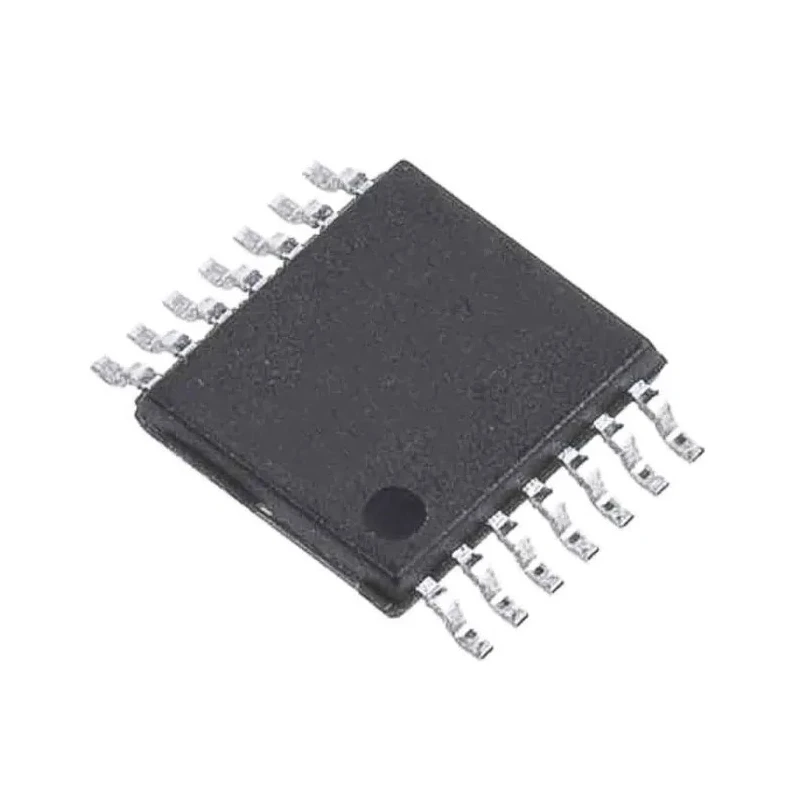

STMicroelectronics Quad Channel Operational Amplifier 4 MHz Gain Bandwidth, 14-Pin Surface Mount TSSOP Package TS924AIPT

STMicroelectronics TS924AIPT is a quad channel operational amplifier designed for precision signal amplification with a gain bandwidth product of 4 MHz. It features a 14-pin TSSOP surface mount package with compact dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height. The device operates over a wide voltage range from 2.7 V minimum to 12 V maximum, suitable for low-voltage and battery-powered applications.

This high-speed BiCMOS op amp offers rail-to-rail input and output stages, delivering high output current capability up to 80 mA, which enables driving low impedance loads such as 32 Ω speakers. The low input offset voltage of 900 μV maximum and low input bias current of 100 nA guarantee accurate signal processing essential for audio and industrial instrumentation systems.

The TS924AIPT provides a slew rate of 1.3 V per microsecond facilitating rapid output voltage changes with minimal distortion. It maintains low noise performance with a noise density of 9 nV/√Hz, making it well-suited for high-fidelity audio and sensitive measurement applications.

Designed for robust operation, it withstands temperatures from -40°C to 125°C and complies with automotive grade standard AEC-Q100. Its integrated ESD protection rated at 3 kV ensures device reliability in demanding environments.

The device is fully RoHS compliant, supporting environmentally safe manufacturing. Typical applications include audio signal processing, portable instrumentation, and other low power industrial or consumer electronic systems requiring stable, low noise amplification.

The device supports rail-to-rail input and output operation for enhanced signal range. It delivers high output current of up to 80 mA, capable of driving low impedance loads such as 32 Ω. Low input offset voltage of 900 μV max ensures precision amplification.

Slew rate is 1.3 V/μs, supporting fast signal changes. Operating temperature range is from -40°C to 125°C for versatile applications. The device incorporates ESD protection rated to 3 kV and conforms to AEC-Q100 automotive standard.

Compact dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height in TSSOP package. Optimized for low noise of 9 nV/√Hz and low input bias current of 100 nA. Suited for battery-operated and audio systems requiring low distortion and low offset.

RoHS compliant device ensuring environmental safety standards.

This product is categorized under operational amplifiers suitable for industrial electronics, audio amplification, and low voltage circuit design. Explore more Operational Amplifiers at EnvMart for your electronic component needs.
