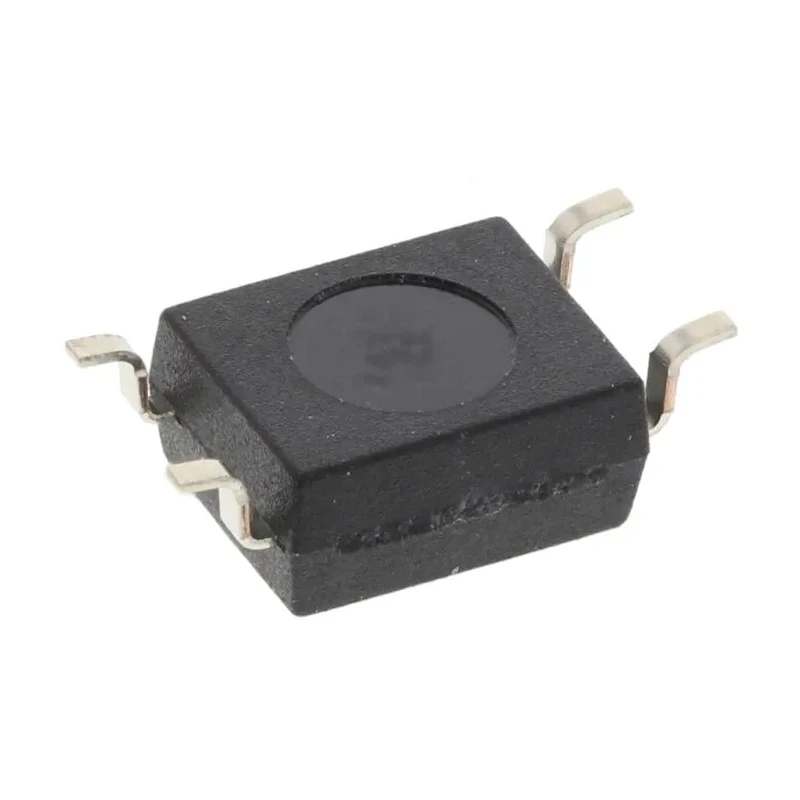

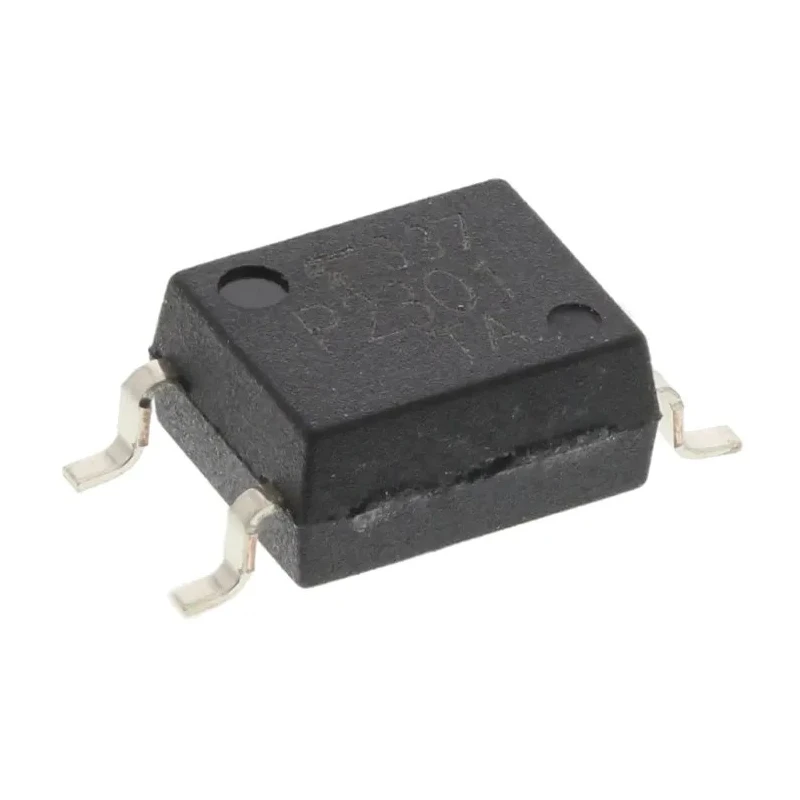

Toshiba DC Input Surface Mount Optocoupler, Transistor Output, 4-Pin SOIC Package TLP2301
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP2301 |
| Mount Type | Surface |
| Output type | Transistor |
| Series | TLP2301 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 15μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 8μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Features surface mounting for compact PCB integration.
- Transistor output type suitable for various electronic applications.
- Operates with a maximum forward voltage of 1.4 volts.
- Single channel device with 4-pin SOIC package.
- Maximum input current rating is 50 mA ensuring robust input handling.
- Wide operating temperature range from -55°C to 125°C.
- Typical rise and fall times of 15μs and 8μs respectively for efficient switching speed.
- High isolation voltage of 3750 Vrms for electrical safety.
Product Description
The Toshiba TLP2301 DC Input Surface Mount Optocoupler with Transistor Output in a 4-Pin SOIC package is designed to provide electrical isolation and signal transfer in various industrial and electronic applications. It is suitable for use in circuits requiring compact surface-mount solutions with robust electrical characteristics.
This optocoupler features a maximum forward voltage of 1.4 volts and a maximum input current of 50 mA, ensuring reliable input signal control. It supports a single channel and is housed in a compact 4-pin SOIC package for easy PCB mounting.
The device operates over a wide temperature range from -55°C to 125°C, making it suitable for harsh industrial environments, including power electronics, control systems, and instrumentation. Its high isolation voltage rating of 3750 Vrms ensures safety and noise immunity.
Typical switching times include a 15 microseconds rise time and 8 microseconds fall time, optimizing performance in fast switching applications.
The TLP2301 complies with various safety and quality standards including cUL CSA No.5A, BSI BS EN60065, SEMKO EN60065, and UL1577 (pending), enhancing confidence for use in commercial and industrial products.
This optocoupler facilitates signal isolation in automation systems, power supplies, industrial controls, instrumentation, and telecommunication equipment. Features surface mounting for compact PCB integration. Transistor output type suitable for various electronic applications.
Operates with a maximum forward voltage of 1.4 volts. Single channel device with 4-pin SOIC package. Maximum input current rating is 50 mA ensuring robust input handling. Wide operating temperature range from -55°C to 125°C.
Typical rise and fall times of 15μs and 8μs respectively for efficient switching speed. High isolation voltage of 3750 Vrms for electrical safety. Compliance with multiple international standards including UL, CSA, BSI, SEMKO, and pending VDE approvals.
Browse more Optocouplers and related Toshiba electronic components on EnvMart for industrial, laboratory, manufacturing, and automation applications.
