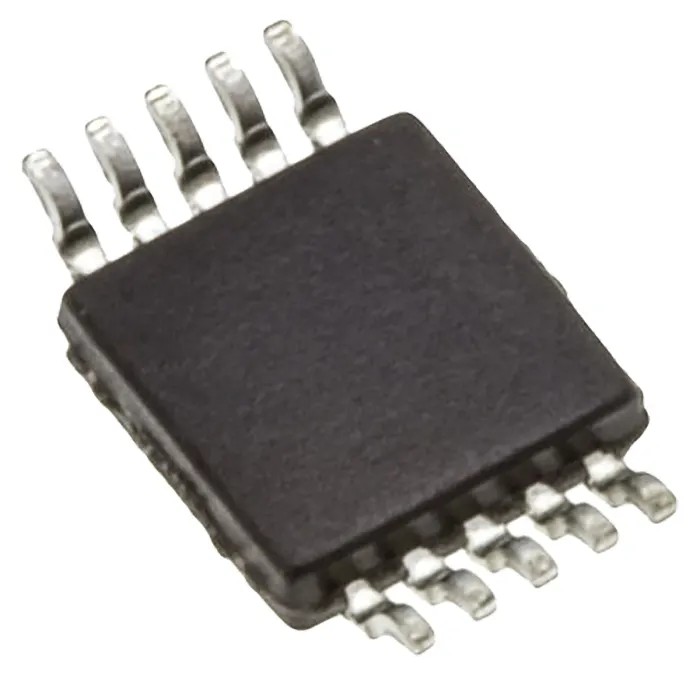

STMicroelectronics Operational Amplifier 420 kHz 10-Pin MSOP 5.5V TSV623IST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.94mm |
| Length | 3.1mm |
| Model | TSV623IST |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TSV623 |
| Output Current | 4mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Shutdown Mode | 5 nA typical |
| Standards/Approvals | RoHS |
| Pin Count | 10 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.5V |
| GBP - Gain Bandwidth Product | 420kHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 0.19V/μs |
Key Features
- Dual channel operational amplifier for precise electronic signal amplification.
- Gain bandwidth product of 420 kHz offering moderate frequency response.
- Operates with supply voltage range of 1.5 V to 5.5 V for flexible power management.
- Low power consumption with typical current of 29 µA and shutdown mode current of 5 nA.
- Low input offset voltage of 800 µV maximum (A version) ensures accurate operation.
- Surface mount MSOP package measures 3.1 mm by 3.1 mm with height of 0.94 mm.
- Wide operating temperature range from -40°C to 125°C supports industrial environments.
- Output current capability of 4 mA suitable for various electronic applications.
Product Description
STMicroelectronics TSV623IST is a dual-channel operational amplifier designed for low power consumption and high precision applications. Featuring a gain bandwidth product of 420 kHz, this device is capable of handling moderate frequency amplification tasks within a supply voltage range of 1.5 V to 5.5 V. Packaged in a compact 10-pin MSOP casing measuring 3.1 mm by 3.1 mm with a height of 0.94 mm, it provides an efficient surface mount solution for space-constrained designs.
This operational amplifier includes low input offset voltage characteristics, with a maximum of 800 µV on the A version, and an input bias current of 100 pA, making it ideal for precision analog circuits. It boasts extremely low power consumption, with a typical operating current of 29 µA and an ultra-low shutdown current of 5 nA, contributing to energy-saving designs.
Engineered to operate reliably over a wide temperature range from -40°C to 125°C, TSV623IST is suitable for demanding industrial, automotive, and consumer electronic environments. It delivers an output current of up to 4 mA, supporting a variety of load conditions.
The device complies with RoHS environmental directives, ensuring it meets modern regulatory requirements for hazardous materials. Its compact MSOP package is optimized for automated assembly and mass production.
Dual channel operational amplifier with rail-to-rail input and output. Low input offset voltage and bias currents for precision applications. Low power consumption ideal for battery-powered and portable devices. Wide operating voltage and temperature ranges suitable for robust designs.
Compact MSOP 10-pin surface mount package for space-saving PCB layouts. Compliant with RoHS for environmental safety. Applicable in instrumentation, signal conditioning, and automotive electronics. Explore the extensive range of STMicroelectronics Operational Amplifiers at EnvMart for various industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TSV623IST operational amplifier is 420 kHz, allowing it to handle moderate frequency amplification tasks.
This model operates within a supply voltage range of 1.5 V to 5.5 V, providing flexibility for various power management needs.
The TSV623IST can deliver an output current of up to 4 mA, making it suitable for various electronic applications.
The MSOP package of the TSV623IST measures 3.1 mm in length and width, with a height of 0.94 mm.
The maximum input offset voltage for the A version of the TSV623IST is 800 µV, which ensures accurate operation in precision applications.
This operational amplifier has a typical current consumption of 29 µA, contributing to its low power characteristics.
The TSV623IST operates reliably over a wide temperature range from -40°C to 125°C, suitable for industrial environments.
This operational amplifier is designed for surface mounting, making it suitable for space-constrained applications.
The input bias current for the TSV623IST is 100 pA, which is beneficial for precision analog circuits.
Yes, the TSV623IST complies with RoHS environmental directives, ensuring it meets modern regulatory requirements for hazardous materials.
This model features dual channels, making it suitable for applications requiring multiple signal processing paths.
The slew rate of the TSV623IST is 0.19 V/μs, which impacts its ability to respond to rapid changes in input signals.
