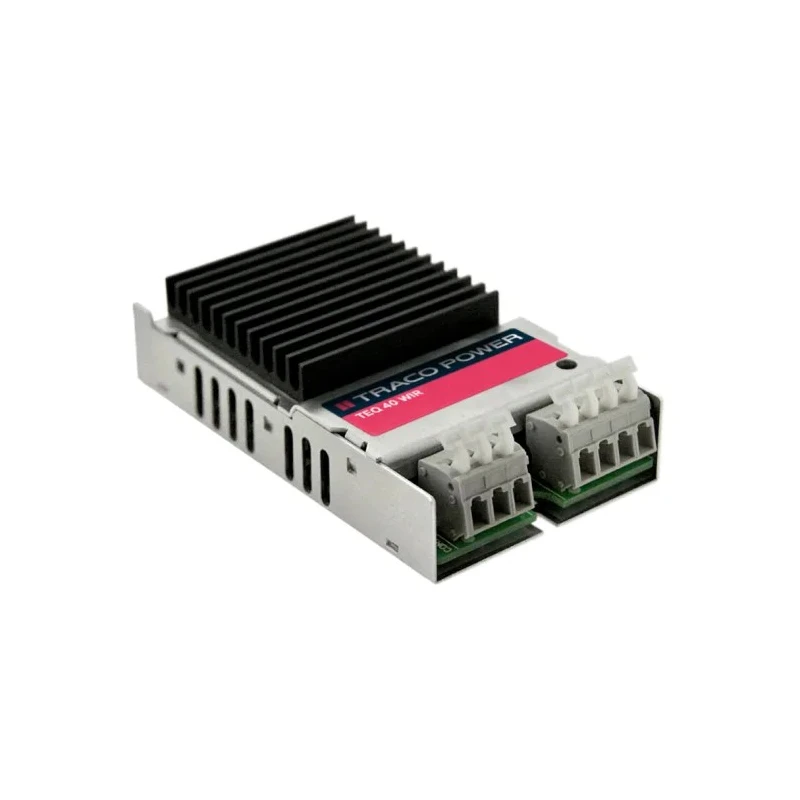

TRACOPOWER DC/DC Converter, 40W Power, 12V DC Output, 160V DC Max Input, Chassis Mount, -40°C to 92°C TEQ 40-7222WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEQ 40WIR DC/DC Converter, 12V dc/, 160 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 103mm |
| Model | TEQ 40-7222WIR |
| Depth | 26.1mm |
| Width | 57.2mm |
| Mount Type | Chassis Mount |
| Series | TEQ 40WIR |
| Maximum Operating Temperature | 92°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 3kV dc |
| Output Current 2 | 1670mA |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Operates with a maximum input voltage of 160V DC and minimum input of 43V DC.
- High efficiency of 88% and robust metal chassis mount construction for durability.
- Supports operating temperatures from -40°C up to 92°C with thermal protection.
- Provides electrical isolation up to 3000V DC for safety in industrial environments.
- Mean Time Between Failures (MTBF) is 1,000,000 hours ensuring reliability.
- Compact size with dimensions Length 103mm, Width 57.2mm, Depth 26.1mm.
- Designed primarily for railway and industrial power conversion applications.
Product Description
TRACOPOWER TEQ 40-7222WIR DC/DC Converter is a highly reliable, chassis mount DC/DC converter module delivering 40W power at 12V output voltage, designed with an ultra-wide 4:1 input voltage range of 43V to 160V DC. The rugged metal case enables robust performance in industrial and railway applications where PCB mounting is not feasible. It supports dual outputs of 12V DC and -12V DC at currents of 1.67A each, maintaining high efficiency of 88%.
The module is engineered for harsh environments, offering a broad operating temperature range from -40°C to 92°C, with built-in protections including under voltage lockout, thermal shutdown, and short circuit protection. It features electrical isolation up to 3kV DC, ensuring safe operation in demanding industrial settings. The chassis mount format simplifies installation on bulkhead or equipment chassis.
Its compact dimensions (103mm length, 57.2mm width, and 26.1mm depth) and high MTBF of 1,000,000 hours demonstrate excellent reliability and space-saving design. The TEQ 40WIR Series is ideal for power conversion needs in industrial automation, railway systems, telecommunications, and other critical infrastructures requiring stable DC output under varying input conditions.
Operates with an ultra-wide input voltage range of 43-160V DC enabling flexible input sources. High efficiency of 88% reduces heat generation and energy loss. Dual output rails of 12V and -12V DC provide versatility for complex circuits.
Chassis mount design suits constrained or high-vibration environments where PCB mounting is impractical. Built-in protections enhance longevity and operational safety. Electrical isolation of 3000V DC supports noise immunity and operator safety.
Extended operating temperatures from -40°C to +92°C accommodate industrial thermal demands. Robust metal enclosure ensures mechanical durability and effective thermal management.
Choose the TRACOPOWER TEQ 40-7222WIR for reliable, efficient DC/DC power conversion in industrial, railway, telecom, and automation applications. Browse the Electronics & Electricals > Voltage Converters > DC/DC Converter category at EnvMart for similar high-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an ultra-wide input voltage range of 43V to 160V DC.
It provides dual output voltages of 12V DC and -12V DC.
The maximum output power is 40W.
The efficiency of this unit is rated at 88%.
This converter has dimensions of 103mm in length, 57.2mm in width, and 26.1mm in depth.
It supports an operating temperature range from -40°C to 92°C.
The TEQ 40-7222WIR is designed for chassis mounting.
It features electrical isolation up to 3000V DC.
The MTBF is 1,000,000 hours, indicating high reliability.
This model includes under voltage lockout, thermal shutdown, and short circuit protection.
It is primarily designed for railway and industrial power conversion applications.
The country of origin for this model is Taiwan.
