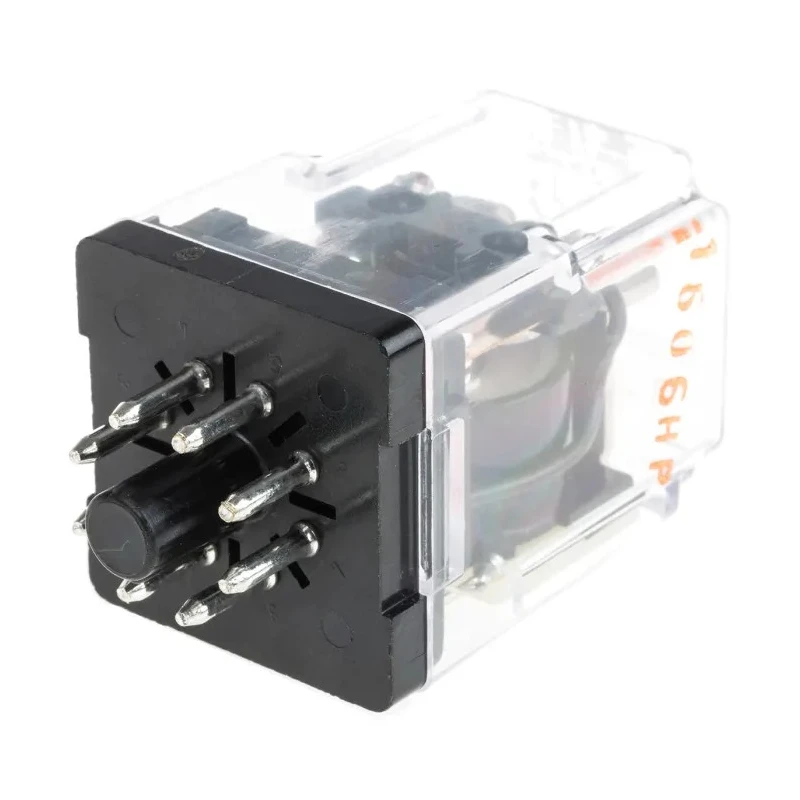

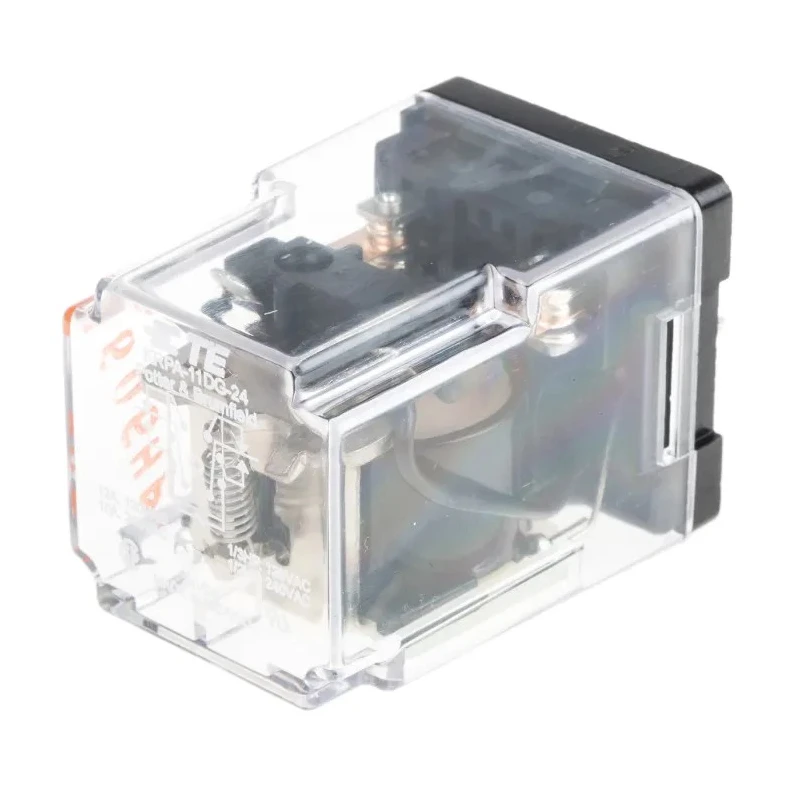

TE Connectivity Power Relay 24V DC Coil 10A Switching Current DPDT KRPA-11DG-24

TE Connectivity KRPA-11DG-24 power relay is a precision-engineered component designed for industrial and commercial electrical control systems that require reliable switching capabilities. This relay operates with a 24V DC coil voltage providing precise control by activating or deactivating electrical circuits as required.

The double pole double throw (DPDT) contact configuration offers flexibility for complex switching demands, enabling two separate circuits to be controlled simultaneously, which is integral in automation and machinery control applications. It supports a switching current rating of 10A, enabling it to handle moderate load currents with excellent performance and durability.

Its plug-in terminal type facilitates quick installation and straightforward replacement in industrial control panels or electronic projects, saving time and reducing maintenance effort. The silver alloy contact material enhances conductivity and reduces wear, ensuring long operational life even under frequent switching cycles.

Designed to operate within a wide temperature range from -45°C to 70°C, the relay ensures consistent performance in harsh environments including industrial automation, manufacturing equipment, HVAC control systems, and electrical panels in commercial buildings.

The compact footprint with precise dimensions (Length: 48.8mm, Width: 37.3mm, Height: 34.9mm) minimizes space requirements while meeting rigorous industry standards including CSA, UL, and UR certifications for guaranteed safety and conformity.

The relay coil operates at 24V DC providing reliable control power. Double Pole Double Throw (DPDT) contacts allow multiple circuit switching. The maximum switching current rating is 10A suitable for medium power loads. The relay has a switching power of 1.2W and switching AC voltage up to 240V AC.

Constructed with silver alloy contact material for durability and stable electrical performance. Designed with a plug-in terminal type for easy installation and maintenance. Operates within a temperature range from -45°C minimum to 70°C maximum.

Compact dimensions allow space saving in control panels. Coil resistance of 472Ω ensures optimal coil current flow. Certified to standards including CSA, UL, and UR ensuring compliance and safety.

This power relay is ideal for industrial automation, electrical control, building management systems, and various applications where secure, high-current switching is required. Explore more products like TE Connectivity KRPA-11DG-24 Power Relays in the Electronics & Electricals category at EnvMart.
