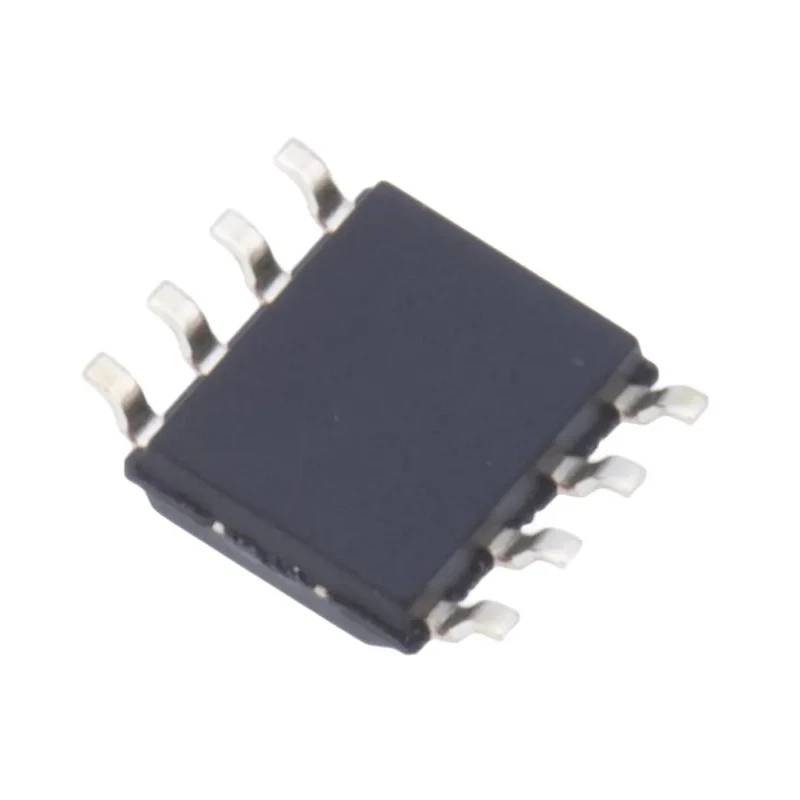

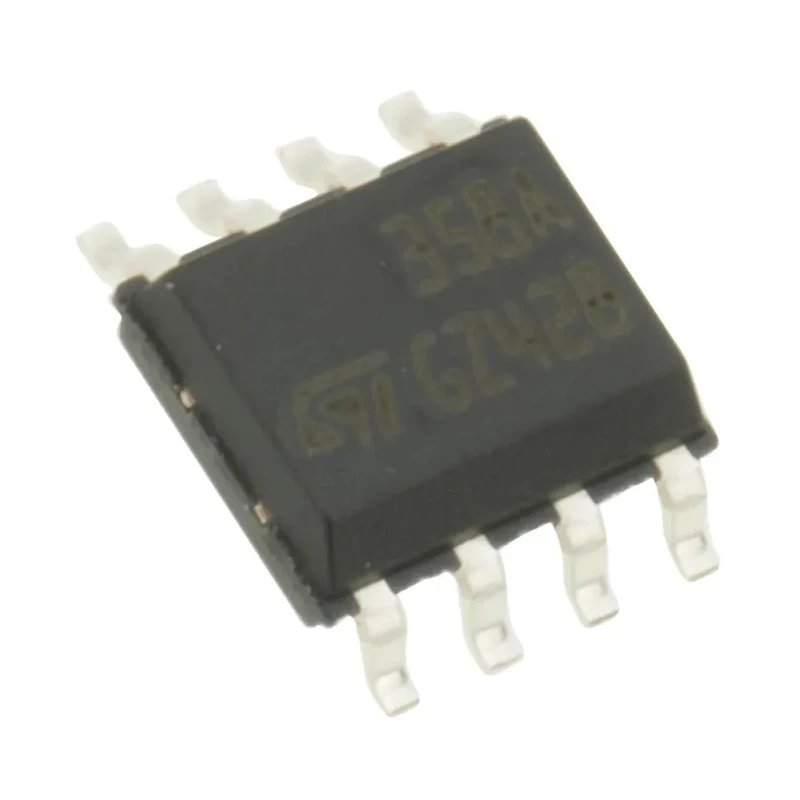

STMicroelectronics Operational Amplifier 1.1 MHz 8-Pin SOIC 5-30V LM358ADT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | LM358ADT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM358A |
| Output Current | 60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.1MHz |
| Input Bias Current | 50 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 10 nA |
| Wide bandwidth (unity gain) | 1.1 MHz |
| LM358ADR2G onsemi, Operational Amplifier, 1 MHz, 8-Pin 32V SOICBrand | onsemi |
| LM358ADR Texas Instruments, Operational Amplifier, 700 kHz, 8-Pin 30V SOICBrand | Texas Instruments |
Key Features
- Operates from a single power supply voltage ranging from 5 to 30 volts.
- Provides two independent, high-gain internally frequency-compensated amplifiers in one package.
- Input bias current is low at 50 nA, with input offset voltage of 3 mV for accurate signal amplification.
- Slew rate of 0.6 V/μs ensures moderate speed response suitable for numerous applications.
- Wide operating temperature range from 0°C to 70°C supports reliable use in varied environments.
- Low input offset current of 10 nA enhances precision in amplification tasks.
- Output current capacity up to 60 mA allows flexible drive capabilities for different loads.
- RoHS compliant with automotive qualification per AEC-Q100 standards for quality assurance.
Product Description
STMicroelectronics LM358ADT is a dual operational amplifier designed for surface mount applications. It combines two independent, internally frequency-compensated operational amplifiers in a compact 8-pin SOIC package. The device offers a wide power supply range from 5 V to 30 V, allowing for flexible integration in diverse electronic circuits.
These operational amplifiers feature a gain bandwidth product of 1.1 MHz, enabling moderate frequency response suitable for analog signal conditioning, filtering, and amplification tasks commonly found in industrial, automotive, and consumer electronics.
The op-amps have low input bias currents of 50 nA and input offset voltage of 3 mV, ensuring precision in signal processing. Their slew rate of 0.6 V/μs offers sufficient speed for various control and measurement applications. Output current capability of 60 mA allows driving of moderate loads without additional amplification stages.
The LM358ADT operates reliably over a temperature range of 0°C to 70°C and meets stringent automotive AEC-Q100 standards. Its compact package dimensions enable high-density PCB layouts in industrial, laboratory, automotive, and consumer electronic designs.
Operates from single power supply 5 - 30 V. Dual independent op amps with internal compensation. Gain bandwidth product rated at 1.1 MHz. Low input bias current of 50 nA and offset voltage of 3 mV. Slew rate of 0.6 V/μs for balanced speed.
Output current up to 60 mA. Compact 8-pin SOIC package measuring 4.9 x 3.9 x 1.25 mm. Complies with RoHS and automotive AEC-Q100 standards.
This product is suited for use in industrial control, automotive electronics, laboratory instrumentation, and general purpose amplification applications. STMicroelectronics provides certified quality and reliability in this trusted brand operational amplifier model LM358ADT.
Discover further electronic components in the Operational Amplifier category on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates from a single power supply voltage ranging from 5 to 30 volts.
The gain bandwidth product is rated at 1.1 MHz, which enables moderate frequency response suitable for various applications.
This model features two independent operational amplifiers in one package, providing two channels.
The output current capacity is up to 60 mA, allowing it to drive moderate loads effectively.
The input bias current is low at 50 nA, which helps ensure precision in signal amplification.
The input offset voltage is 3 mV, contributing to accurate signal processing.
It operates reliably over a wide temperature range from 0°C to 70°C.
This operational amplifier comes in a compact 8-pin SOIC package.
The dimensions of this model are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It complies with automotive qualification per AEC-Q100 standards, ensuring quality assurance for automotive applications.
The slew rate is 0.6 V/μs, providing a balanced speed response suitable for various applications.
Yes, it is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.
