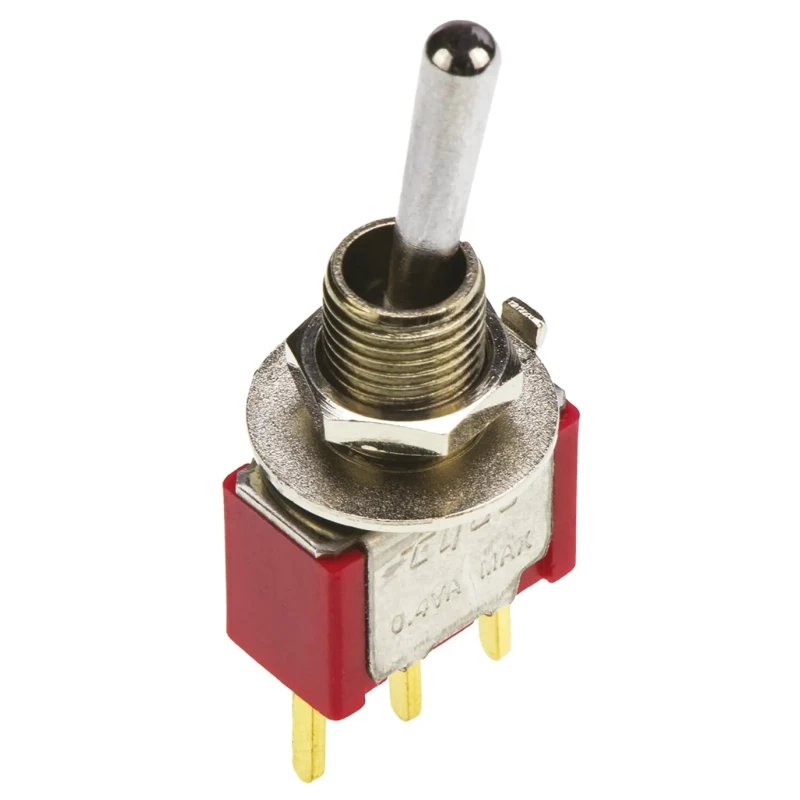

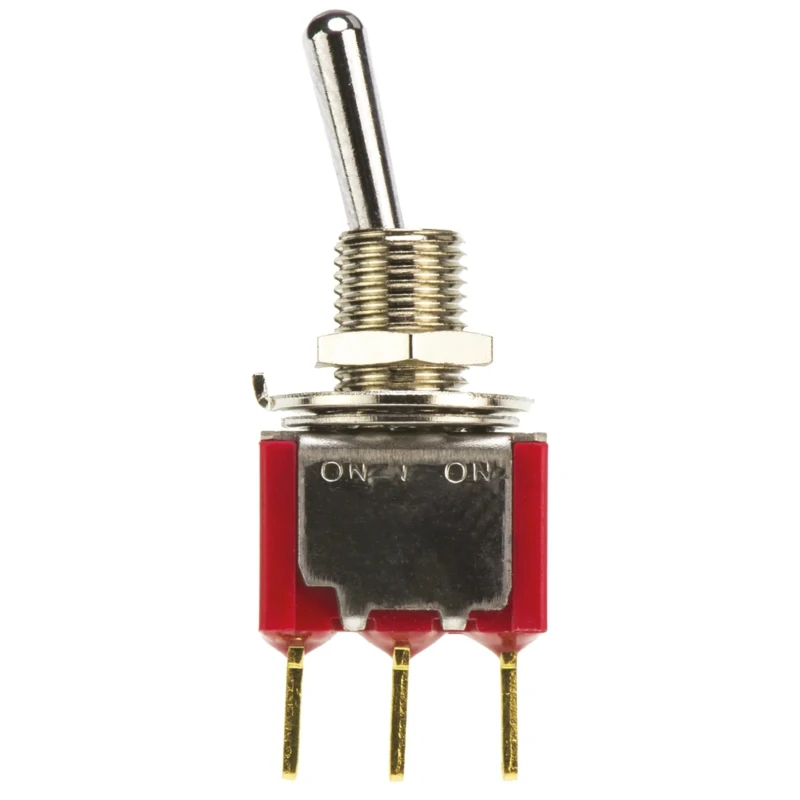

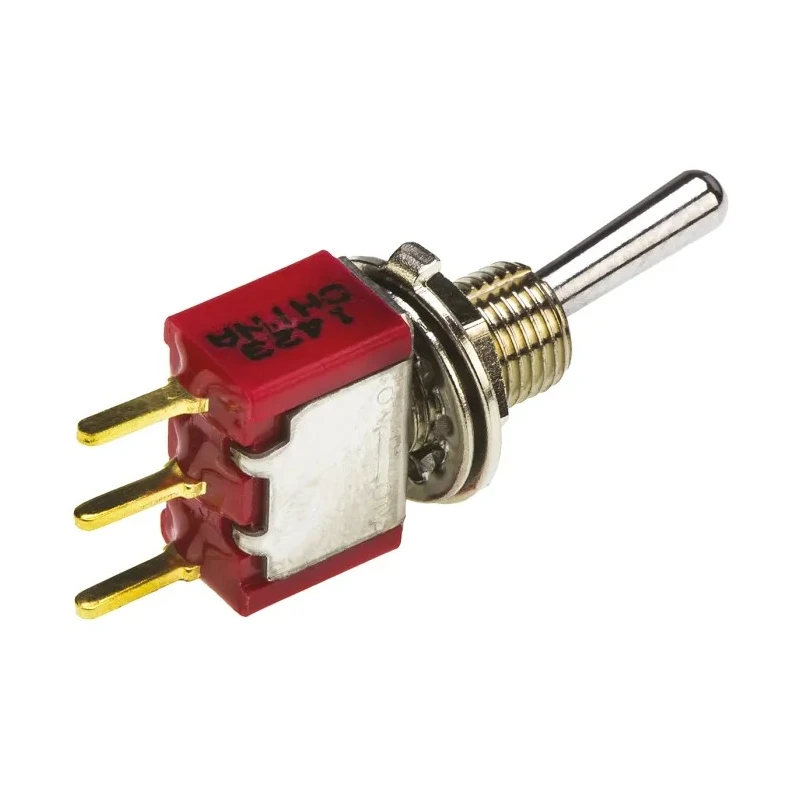

TE Connectivity Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 28 V dc, 115 V ac 4-1825136-4

TE Connectivity 4-1825136-4 Toggle Switch is a robust PCB mount toggle switch designed to provide reliable electrical switching performance in industrial and commercial environments. Featuring a Single Pole Double Throw (SPDT) contact configuration and On-On switch operation, it supports both 28 V dc and 115 V ac voltages, making it versatile for varied electrical control applications.

The switch’s through hole terminal type and PCB mount design enable easy integration into printed circuit boards, ensuring secure and stable mounting suited for automated assembly processes. The device holds a high ingress protection rating of IP67, offering excellent resistance to dust and water, which makes it suitable for harsh environmental conditions.

The actuator is constructed from phenolic material, known for its durability and chemical resistance, with a length of 10.41 mm for comfortable manual operation. Its size, measuring 0.5 inches in length, 0.35 inches in height, and 0.27 inches in width, allows compact installation in control panels and other electronic assemblies.

Operating temperature ranges from -30°C to 85°C, making this switch suitable for applications requiring tolerance to temperature extremes. The panel cutout size for mounting is 6.35 mm, compatible with standard industrial panel openings.

Part of the Gemini A Series, this toggle switch complies with RoHS standards, assuring environmental safety and regulatory compliance. The switch is manufactured in China under strict quality controls, ensuring high reliability and long service life.

The switch features a contact configuration of Single Pole Double Throw (SPDT). It supports a switch contact current of 400mA. The mount type is PCB with through hole terminal connection. The device has an IP67 rating for protection against dust and water ingress.

The actuator is made of phenolic material with a length of 10.41 mm. Operating temperature ranges from -30°C minimum to 85°C maximum. The panel cutout size for installation is 6.35 mm. The switch dimensions are approximately 0.5 inches length, 0.35 inches height, and 0.27 inches width.

It complies with RoHS standards, ensuring environmental and safety compliance. Manufactured under the Gemini A Series and made in China.

This toggle switch is ideal for use in industrial machinery, electronic devices, HVAC control systems, and automation equipment where durable, reliable switching is essential. Browse EnvMart’s extensive range of industrial Toggle Switches to find compatible mounting accessories and complementary components.
