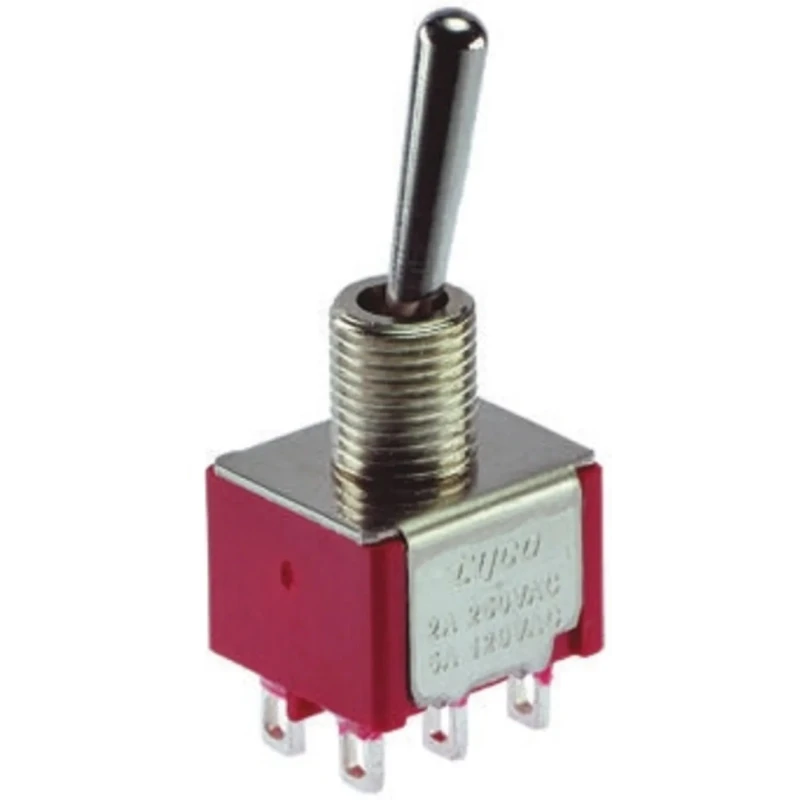

TE Connectivity Gemini A Series Toggle Switch, Panel Mount, DPDT On-On, Solder Terminal, 28 V dc, 125 V ac, Model 3-1825138-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch features a double pole double throw (DPDT) contact configuration.
- The switch operation is On-On, enabling selection between two circuits.
- It supports a switch contact current of 5 amperes for reliable performance.
- Solder type terminals facilitate secure electrical connections.
- The panel cutout size required is 6.35 mm for proper mounting.
- The actuator length is 10.41 mm, with a phenolic actuator material for durability.
- Operates in temperature ranges from -30°C to a maximum of 85°C.
- The switch has epoxy sealed terminals and a stainless steel frame with brass tin plated solder support.
Product Description
TE Connectivity 3-1825138-8 Gemini A Series Toggle Switch is a high-quality panel mount toggle switch designed for industrial and electrical applications requiring DPDT On-On switching operation. It features a robust stainless steel frame and epoxy sealed terminals ensuring long service life and reliable electrical performance.
Operating at a contact current of 5A, and rated for voltages of 28 V dc and 125 V ac, this toggle switch is suitable for use in control panels, automation systems, and machinery. The solder terminal type provides secure and stable electrical connections, making installation efficient and reliable.
This switch includes a durable phenolic actuator with a length of 10.41 mm and requires a panel cutout of 6.35 mm for mounting. It operates reliably between -30°C and 85°C, making it suitable for diverse industrial environments.
The compact dimensions of 0.5 inch length, 0.45 inch width, and 0.35 inch height allow for versatile panel fitting and integration in electrical enclosures. Double pole double throw (DPDT) contact configuration for versatile switching.
On-On switch operation enabling dual circuit selection. 5A contact current rating ensures reliable electrical performance. Phenolic actuator material for durability and strength. Epoxy sealed terminals provide enhanced protection against environmental factors.
Stainless steel frame with brass tin plated solder support for mechanical stability. Compact size suitable for various panel mounting applications. RoHS compliant, meeting environmental safety standards.
This toggle switch is ideal for use in industrial automation, electrical distribution, HVAC control systems, and manufacturing equipment. It provides dependable circuit control and user-friendly operation within a compact footprint.
Explore more high-quality Toggle Switches and other industrial electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching between two circuits.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for various industrial environments.
It has a rated contact current of 5 amperes, ensuring reliable electrical performance during operation.
This unit is rated for 28 V dc and 125 V ac, making it suitable for a variety of applications.
The required panel cutout size for proper mounting of this switch is 6.35 mm.
The actuator is made of phenolic material, providing durability and strength for reliable operation.
The dimensions of this model are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
It features solder type terminals, which facilitate secure and stable electrical connections during installation.
The minimum operating temperature for this toggle switch is -30°C, allowing it to function in colder environments.
The actuator length of this switch is 10.41 mm, which contributes to its compact design.
Yes, this model is RoHS compliant, meeting environmental safety standards.
It is suitable for use in control panels, automation systems, HVAC control systems, and manufacturing equipment.
