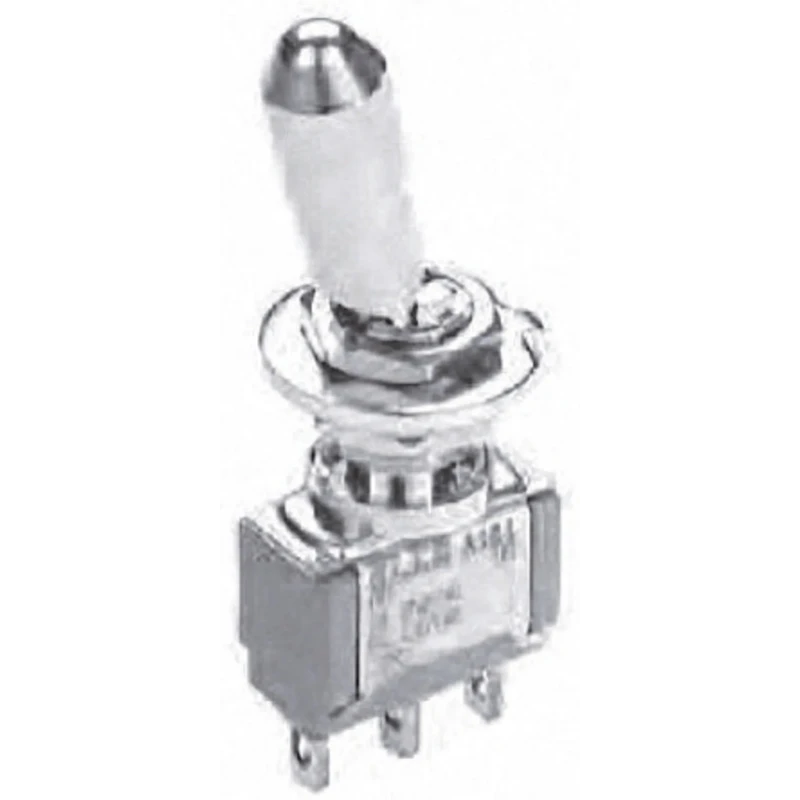

TE Connectivity Panel Mount Toggle Switch On-On SPDT Through Hole Terminal 28 V dc 125 V ac 1825136-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.27in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 0.25 in |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 16.26mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch features a single pole double throw (SPDT) contact configuration.
- It operates with an On-On switch operation for reliable circuit control.
- The switch supports a contact current rating of 5 amperes.
- Mounting is designed for easy panel installation with a cutout size of 0.25 inch.
- The actuator length is 16.26 mm, made of durable phenolic material.
- Operating temperature ranges from -30°C to 85°C, ensuring performance in various environments.
- Constructed with a stainless steel frame and brass tin-plated solder support for robustness.
- This switch is epoxy sealed at terminals for protection and compliance with RoHS standards.
Product Description
TE Connectivity 1825136-7 Panel Mount Toggle Switch On-On SPDT is a high-quality switch designed to provide reliable control in electrical, automation, and industrial applications. Rated for 28 V dc and 125 V ac, it accommodates a 5A contact current for safe circuit switching.
This toggle switch offers a single pole double throw contact configuration with On-On switch operation, making it suitable for selecting between two circuits. The through hole terminal design facilitates secure PCB mounting.
Its compact size, featuring a panel cutout of 0.25 inch and actuator length of 16.26 mm made from phenolic material, ensures durability and long life. The switch is built with a stainless steel frame and brass tin-plated solder support, enhancing mechanical strength and corrosion resistance. The epoxy sealed terminals protect against environmental contaminants.
Operating temperature range from -30°C to 85°C makes this switch applicable across varied industrial, automation, HVAC, and manufacturing environments. This toggle switch features a single pole double throw (SPDT) contact configuration.
Operation with On-On switch functionality for circuit selection. Supports contact current of 5 amperes, suitable for medium power applications. Panel mount designed with a cutout size of 0.25 inch for ease of installation.
Actuator length is 16.26 mm constructed from phenolic for electrical insulation and durability. Epoxy sealed terminals provide protection and compliance with RoHS standards. Stainless steel frame with brass tin-plated solder support enhances robustness and longevity.
Compact physical dimensions: Height 0.35 in, Length 0.5 in, Width 0.27 in. Gemini A series switch suitable for electrical, automation, instrumentation, and control systems.
This TE Connectivity Toggle Switch is ideal for applications in electrical panels, industrial machinery, and automation systems requiring reliable switch operation under moderate voltage and current ratings. Its design ensures long-term stability, performance, and environmental resistance.
Explore more high-quality switches and electrical components from TE Connectivity and similar reputable brands on EnvMart to equip your industrial projects and repair tasks with trusted parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a single pole double throw (SPDT) contact configuration, allowing for reliable circuit control between two circuits.
It supports a contact current rating of 5 amperes, making it suitable for medium power applications.
The switch is rated for 28 V dc and 125 V ac, accommodating various electrical applications.
It operates within a temperature range of -30°C to 85°C, ensuring functionality in diverse environments.
The switch requires a panel cutout size of 0.25 inches for proper installation.
The actuator is made of phenolic material, which provides electrical insulation and durability.
It features through hole terminals, facilitating secure PCB mounting for installation.
This model is RoHS compliant, ensuring it meets environmental regulations regarding hazardous substances.
The dimensions are 0.35 inches in height, 0.5 inches in length, and 0.27 inches in width.
This toggle switch is part of the Gemini A series, designed for various electrical applications.
The terminals are epoxy sealed to protect against environmental contaminants, enhancing durability.
The country of origin for this toggle switch is India.
