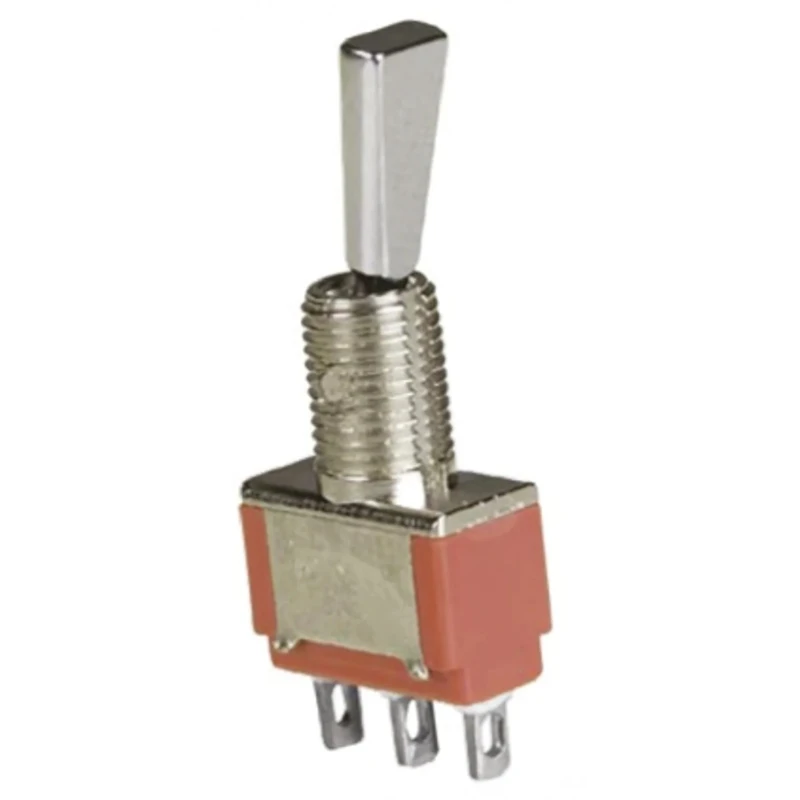

TE Connectivity Panel Mount Toggle Switch On-On SPDT Solder Terminal 28 V dc 120 V ac A101P3ZQ04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.5in |
| Model | A101P3ZQ04 |
| Width | 0.270in |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 11.43mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 120V ac |
Key Features
- Features a single pole double throw (SPDT) contact configuration for versatile circuit control.
- On-On switch operation ensures robust switching with break before make contact timing.
- Supports a switch contact current rating of 5 Amps for efficient electrical handling.
- Panel mount design facilitates easy installation with a 6.35 mm cutout size.
- Solder terminal type allows secure electrical connections for durability.
- Actuator length of 11.43 mm and overall compact size ensure suitability for constrained panel spaces.
- Rated for contact voltages of 28 V dc and 120 V ac accommodating various electrical systems.
- Operational temperature range from -30°C to 85°C provides reliable performance in diverse environments.
Product Description
TE Connectivity A101P3ZQ04 is a panel mount toggle switch designed for reliable electrical circuit control applications. It features a SPDT (single pole double throw) contact configuration with On-On switch operation, allowing effective switching between two circuits. This switch is equipped with solder terminals, easing secure connections to electrical wiring.
The toggle switch supports a switch contact current of 5 Amps and is rated for 28 V dc and 120 V ac contact voltages, making it suitable for various low voltage electrical and automation applications. The panel cutout size is 6.35 mm, providing compatibility with standard panel mounting requirements.
Its construction includes epoxy sealed terminals for protection against environmental factors, a stainless steel frame for structural integrity, and brass tin plated solder support to enhance electrical reliability. The actuator length is 11.43 mm with compact physical dimensions of approximately 0.5 inches length and 0.270 inches width, facilitating installation in limited spaces.
The operating temperature range from -30°C to 85°C enables usage in diverse industrial and commercial environments. With a mechanical life rated for 6000 cycles, this switch ensures durable and dependable operation for extended service life.
Single pole double throw (SPDT) contact configuration. On-On switch operation with break before make contact timing. 5 Amp switch contact current rating. Panel mount design with 6.35 mm cutout size. Solder terminal type for secure electrical connections.
Epoxy sealed terminals for environmental protection. Stainless steel frame with brass tin plated solder support. Compact size with actuator length 11.43 mm. Operating temperature range -30°C to 85°C. Mechanical life of 6000 cycles.
This toggle switch is ideal for use in industrial automation, electrical control panels, machinery, HVAC systems, and other commercial building controls where dependable switching and compact form factor are critical.
Explore a comprehensive range of TE Connectivity Toggle Switches and other electrical components at EnvMart for your system design and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing effective switching between two circuits.
It supports a switch contact current rating of 5 Amps, suitable for efficient electrical handling in various applications.
The switch is rated for contact voltages of 28 V dc and 120 V ac, accommodating different electrical systems.
The panel mount design requires a cutout size of 6.35 mm for proper installation.
It operates effectively within a temperature range of -30°C to 85°C, making it suitable for diverse environments.
The actuator length is 11.43 mm, which helps in fitting the switch in compact spaces.
This model has a mechanical life rated for 6000 cycles, ensuring extended service life for operational reliability.
It features solder terminals, which allow for secure electrical connections and enhanced durability.
The switch includes epoxy sealed terminals for protection, a stainless steel frame for structural integrity, and brass tin plated solder support for electrical reliability.
Yes, it is RoHS compliant, indicating it meets specific environmental and safety standards.
This model is ideal for use in industrial automation, electrical control panels, machinery, HVAC systems, and other commercial building controls.
The country of origin for this switch is India.
