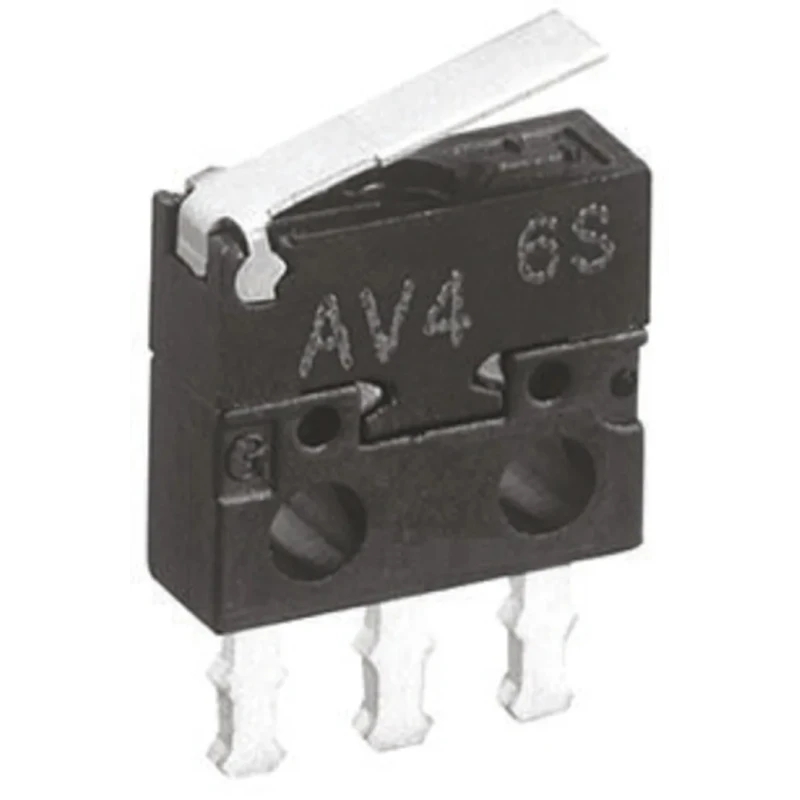

Panasonic Hinge Lever Micro Switch, Snap-In Latch, Solder Terminal, 100mA, 30V dc, AV402461
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | AV402461 |
| Series | AV4 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.25N |
| Mechanical Life | 300000Operations |
| Microswitch Type | Snap-In Latch |
Key Features
- Superminiature snap-action switch for precise operation.
- Hinge lever actuator type provides reliable mechanical performance.
- Solder terminal for secure electrical connections.
- Rated for 100mA contact current and 30V dc voltage.
- Operating force is 0.25 Newtons for sensitive actuation.
- Operates within a temperature range of -25°C to 80°C.
- Snap-in latch type mechanism enhances durability and responsiveness.
- Mechanical life expectancy of 300,000 operations ensures long service.
Product Description
Panasonic AV402461 is a Hinge Lever Micro Switch featuring a snap-in latch mechanism and solder terminal connection. Rated at 100mA and 30V dc, this superminiature switch provides precise and reliable operation in compact visual equipment, small audio devices, and office automation.
This switch has a hinge lever actuator that requires only 0.25N operating force, making it ideal for applications needing sensitive actuation. It operates efficiently across a wide temperature range from -25°C to 80°C, ensuring stable performance in varied environments.
The snap-in latch type design offers a mechanical life of up to 300,000 operations, contributing to its durability for extended industrial, laboratory, and manufacturing applications. This RoHS-compliant device is manufactured in Japan to high-quality standards.
Physically, the solder terminal variant measures 6.6 mm in length, 7.5 mm width, and 4.5 mm height, and weighs approximately 0.3 grams, allowing it to be mounted close together in multi-switch assemblies.
Superminiature snap-action design for compact installations. Hinge lever actuator with low actuation force. Solder terminal type for secure electrical connections. 100mA contact current and 30V dc contact voltage rating.
Operating force of 0.25N ensures sensitive operation. Operating temperature range from -25°C to 80°C for versatility. Snap-in latch mechanism with 300,000 mechanical operations lifespan. RoHS certified for environmental compliance.
Lightweight and compact with dimensions 6.6 x 7.5 x 4.5 mm. Manufactured in Japan with high-quality standards.
This switch is suitable for industrial automation, electronics manufacturing, laboratory instruments, office automation, and other precision applications requiring reliable switching in small form factors.
Explore more Panasonic Micro Switches and enhance your equipment reliability and performance with EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 80°C.
It is rated for a contact current of 100mA and a contact voltage of 30V dc.
This model uses a hinge lever actuator type, which provides sensitive actuation with an operating force of 0.25N.
The mechanical life expectancy of this micro switch is up to 300,000 operations.
This micro switch measures 6.6 mm in length, 7.5 mm in width, and 4.5 mm in height.
The switch features a solder terminal for secure electrical connections.
The minimum operating temperature for this model is -25°C.
Yes, this micro switch is RoHS compliant, ensuring it meets environmental standards.
This model is suitable for applications in industrial automation, electronics manufacturing, laboratory instruments, and office automation.
The contact configuration of this micro switch is SPCO (Single Pole, Change Over).
This micro switch weighs approximately 0.3 grams, making it lightweight for compact installations.
The snap-in latch mechanism enhances the switch's durability and responsiveness, contributing to its reliable operation.
