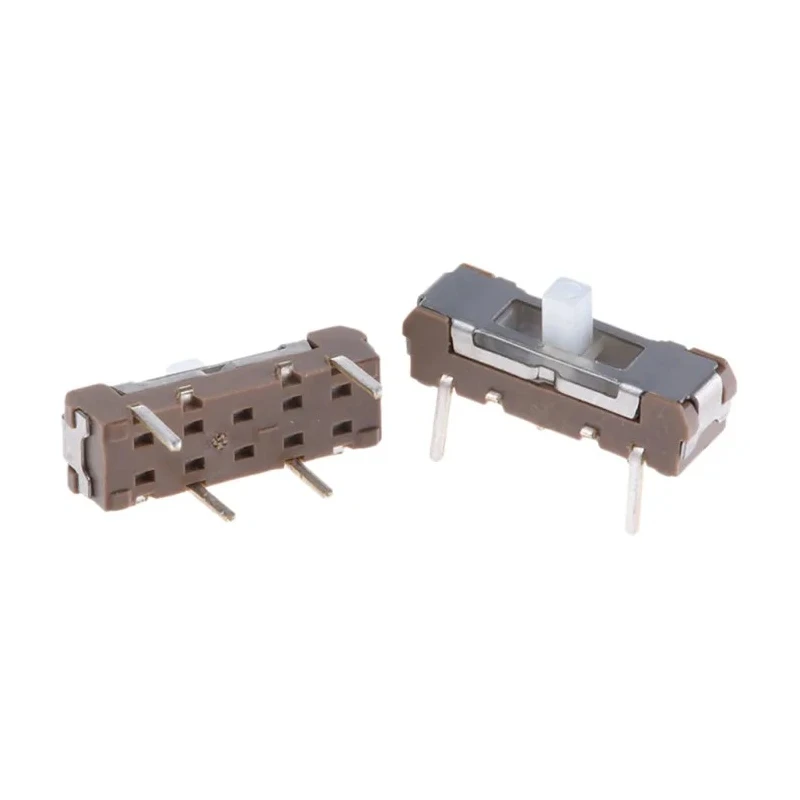

KNITTER-SWITCH PCB Slide Switch SPST On-On-On 200mA 30V dc Polyamide Actuator MMP131

KNITTER-SWITCH MMP131 is a micro miniature PCB slide switch featuring a SPST (single-pole single-throw) contact configuration and On-On-On switch operation. Rated for a maximum current of 200mA and a contact DC voltage of 30V dc, this slide switch is ideal for low power electronic applications requiring compact and reliable switching solutions.

The switch is designed for PCB mount with through hole terminals, ensuring secure and stable connections on printed circuit boards. The actuator is made of polyamide, providing durability and consistent tactile feedback throughout its operational life.

Measuring 13mm in length, 5.5mm in width, and 3.5mm in depth, the MMP131 switch is well suited for space-constrained electronics designs. It offers a mechanical life of up to 5000 operations, which supports moderate usage cycles in automation, instrumentation, and control systems.

This switch complies with RoHS standards, making it a suitable choice for environmentally responsible manufacturing processes. Its operating temperature range from -10°C to 60°C allows it to function reliably in varied ambient conditions.

Features a single-pole single-throw contact configuration. Switch operation is On-On-On for versatile circuit control. Rated for a maximum switch contact current of 200mA. Through hole terminal type for PCB mounting. Constructed with polyamide actuator material for durability.

Compact form factor with 13mm length and 5.5mm width. Mechanical life rated at 5000 operations. RoHS compliant for environmental safety. Operating temperature range from -10°C to 60°C.

The KNITTER-SWITCH MMP131 slide switch is widely used in industrial automation, consumer electronics, instrumentation, and other electrical control applications that demand reliable low current switching with a compact design. Browse our PCB Slide Switch category for more options.
