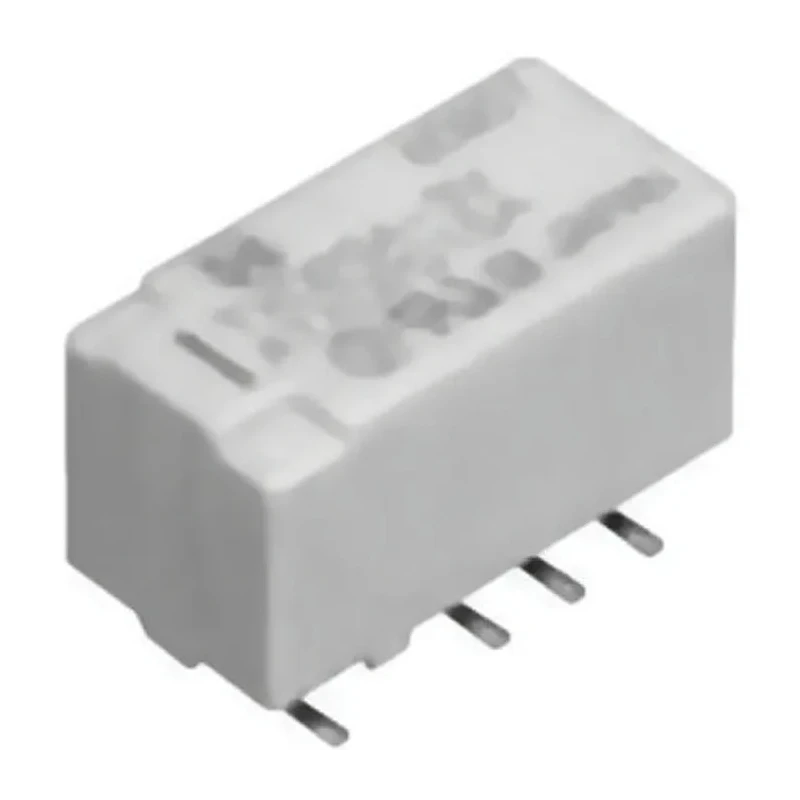

Panasonic Surface Mount Signal Relay 12V DC Coil 2A 220V DC Switching Power TX2SA-LT-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2SA-LT-12V |
| Width | 7.4mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | TX |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Coil Power | 200mW |
| Switching Power | 60W |
| UL recognised, | CSA,:BSI |
Key Features
- Compact surface mount design for PCB installation.
- High sensitivity coil power consumption of 200mW.
- Switching capacity up to 2A at 220V DC voltage.
- Operating temperature range from -40°C to 85°C.
- Gold plated contacts ensure reliable electrical performance.
- Through hole terminal type for secure mounting.
- Compliant with RoHS standards for environmental safety.
- High resistance to vibration and shock for industrial use.
Product Description
Panasonic TX2SA-LT-12V is a surface mount signal relay designed for precise control and switching of electrical signals. Featuring a 12V DC coil and a DPDT contact configuration, this relay supports switching currents of up to 2A and switching voltages of 220V DC, making it suitable for various control and automation applications.
This relay belongs to the TX series and is engineered for high durability with a contact resistance of just 100mΩ and gold plated contacts, ensuring long-lasting and reliable electrical connections. Its coil power consumption is low at 200mW, offering efficiency in electrical consumption. The device operates reliably in temperature extremes ranging from -40°C to a maximum of 85°C, making it ideal for use in environments requiring robust performance under varying environmental conditions.
Measuring 15mm in length, 8.2mm in height, and 7.4mm in width, the compact design facilitates easy integration on PCBs via through-hole terminals. These relays are capable of withstanding 2000 Vac breakdown voltage and exhibit exceptional resistance to surges, vibration, and shock, suitable for demanding industrial, communications, measurement, automotive, home appliance, medical, and security systems.
Compact surface mount design for PCB installation. High sensitivity coil power consumption of 200mW. Switching capacity up to 2A at 220V DC voltage. Operating temperature range from -40°C to 85°C. Gold plated contacts ensure reliable electrical performance.
Through hole terminal type for secure mounting. Compliant with RoHS standards for environmental safety. Dimensions: 15mm length, 8.2mm height, and 7.4mm width. High resistance to vibration and shock for industrial use. Additional certifications include UL recognition, CSA, and BSI approvals, ensuring compliance with international safety standards. Country of origin is Japan.
These relays are widely used in industrial automation, signal conditioning, measurement equipment, automotive electronics, telecommunications, and medical instrumentation due to their reliability and robust construction.
Explore more Panasonic Signal Relays and related components in the Electronics & Electricals category on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching capacity of up to 2A at 220V DC voltage.
The relay operates with a coil voltage of 12V DC.
It measures 15mm in length, 8.2mm in height, and 7.4mm in width.
This unit features a through-hole terminal type for secure mounting.
The relay operates reliably in temperatures ranging from -40°C to 85°C.
It has a DPDT (Double Pole Double Throw) contact configuration.
The coil power consumption is low at 200mW.
The contacts are made of gold plated material, ensuring reliable electrical performance.
Yes, it is compliant with RoHS standards and has UL, CSA, and BSI approvals.
The contact resistance is specified at 100mΩ.
This relay is suitable for various applications including industrial automation, telecommunications, and medical instrumentation.
The country of origin for this relay is Japan.
