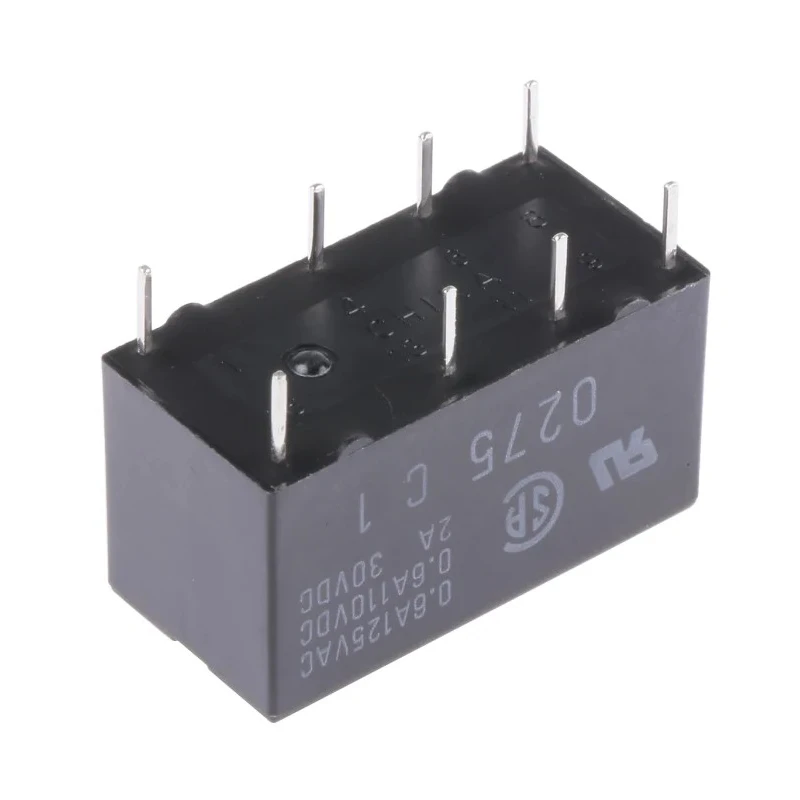

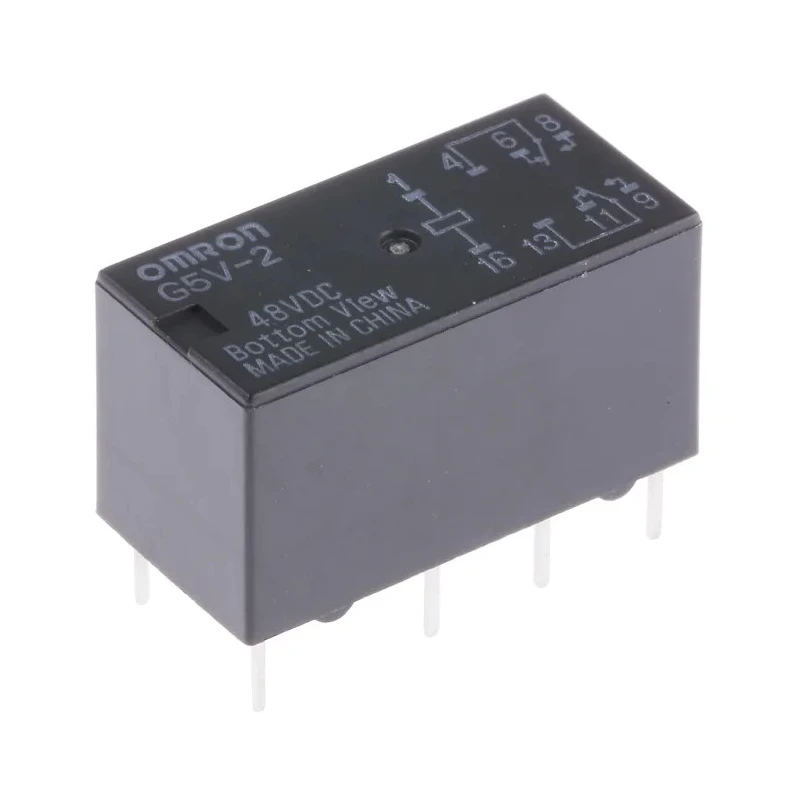

Omron PCB Signal Relay 48V DC Coil 2A Switching Current DPDT Contact Configuration G5V-2 DC48
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.2mm |
| Model | G5V-2 DC48 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | MT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 4000Ω |
| Coil Voltage | 48V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 580mW |
Key Features
- Operates with a coil voltage of 48V DC.
- DPDT contact configuration ensures reliable double pole double throw switching.
- Supports switching currents up to 2A with 125V AC/DC voltage ratings.
- Constructed with gold plated contact material for enhanced conductivity.
- Fully sealed design suitable for immersion cleaning.
- Coil resistance rated at 4000Ω and coil power consumption of 580mW.
- Operating temperature range from -25°C to 70°C.
- Ideal for signal switching in industrial and electronic applications.
Product Description
Omron G5V-2 DC48 PCB Signal Relay is a high-quality Signal Relay designed specifically for printed circuit board (PCB) mounting. Featuring a 48V DC coil voltage and a 2A switching current, this DPDT (Double Pole Double Throw) relay offers reliable and precise signal switching suitable for various industrial and electronic uses.
This relay is fully sealed, making it compatible with immersion cleaning processes, and conforms to stringent BT Type 47 and BT specification 4597 standards. The gold-plated contacts ensure optimal conductivity and long service life, handling switching voltages up to 125V AC or DC. Its compact dimensions (20.2mm length, 10mm width, and 11.5mm height) make it ideal for dense PCB layouts.
Key features include a coil resistance of 4000Ω with a power consumption of only 580mW, allowing efficient operation within a wide temperature range from -25°C up to 70°C. The solder terminal type facilitates straightforward and secure PCB connections.
Omron G5V-2 DC48 relays are utilized extensively in industrial automation, signal conditioning, and control systems, offering consistent performance for signal switching tasks within manufacturing, testing, and instrumentation environments.
Operates on 48V DC coil voltage ensuring precise electrical control. DPDT contact configuration supports complex switching needs. Gold plated contacts for enhanced conductivity and durability. Fully sealed construction suitable for immersion cleaning.
Compliant with RoHS directives for environmental safety. Compact size supports efficient circuit design integration. Wide operating temperature range from -25°C to 70°C. Low coil power consumption at 580mW promotes energy efficiency.
Solder terminal type for firm PCB mountings. Designed for industrial and electronic signal switching applications. The product is in new condition and originates from India. Explore EnvMart categories to find more industrial relays and electronic components for your automation and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay is 48V DC.
It can handle a maximum switching current of 2A.
This relay features a DPDT (Double Pole Double Throw) contact configuration.

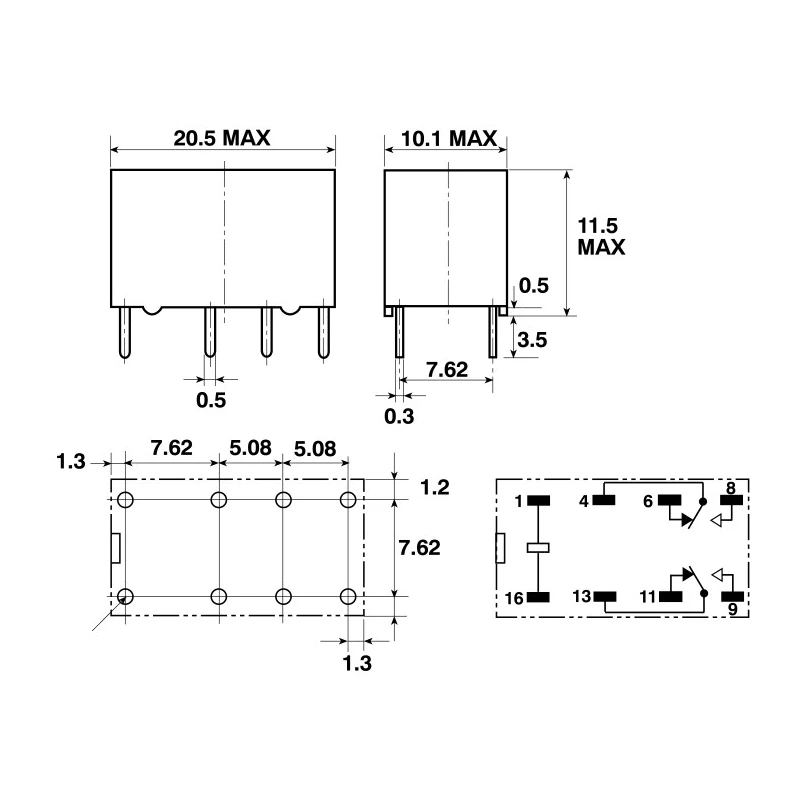

The dimensions are 20.2mm in length, 10mm in width, and 11.5mm in height.
The coil resistance is rated at 4000Ω.
The coil power consumption is 580mW.
The operating temperature range is from -25°C to 70°C.
It has solder terminals for secure PCB mounting.
The switching voltage rating is up to 125V for both AC and DC.
Yes, it features a fully sealed design that makes it suitable for immersion cleaning processes.
This relay complies with RoHS directives for environmental safety.
The relay is manufactured in India.
