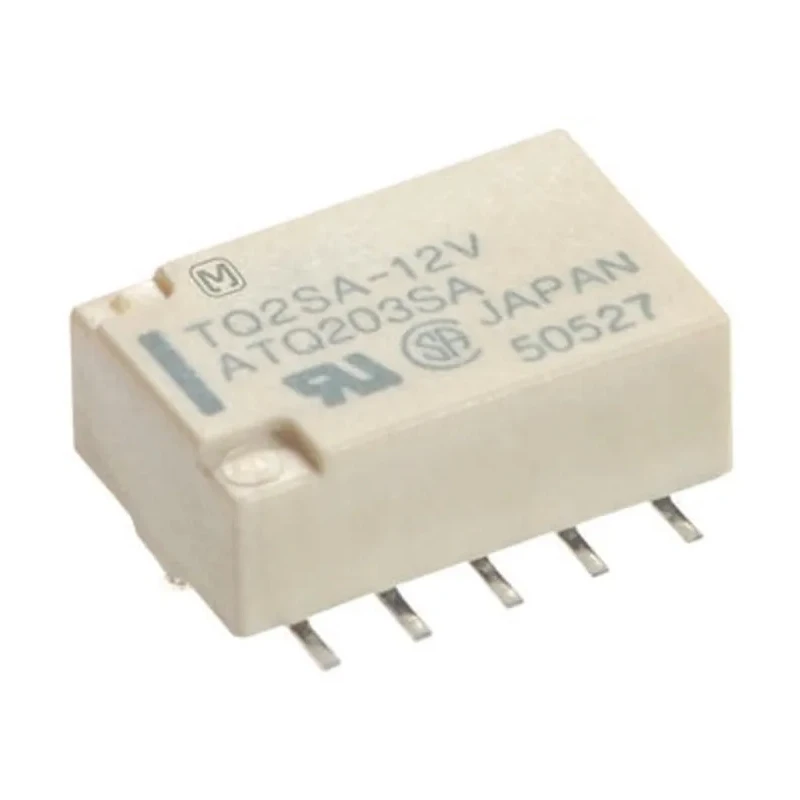

Panasonic Surface Mount Signal Relay, 5V DC Coil, 2A Switching Current, DPDT Contacts, Gold Plated Contact TQ2SA-L-5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.6mm |
| Length | 14mm |
| Model | TQ2SA-L-5V |
| Width | 9mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | TQ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 357Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 70mW |
| Switching Power | 60W |
Key Features
- The relay features a DPDT contact configuration for versatile switching.
- It supports switching AC voltage up to 125V AC and DC voltage up to 220V DC.
- The compact body has dimensions of 14mm length, 9mm width, and 5.6mm height for space-saving PCB mounting.
- Gold plated contacts ensure reliable electrical connectivity and low contact resistance of 50mΩ.
- The coil is designed with resistance of 357Ω and nominal coil power of 70mW for efficient operation.
- It operates over a temperature range from -40°C to 70°C, suitable for diverse environmental conditions.
- Low profile surface mount terminals enable compatibility with automated SMD assembly.
- The relay is RoHS compliant and made in Japan, assuring quality and regulatory adherence.
Product Description
Panasonic TQ2SA-L-5V is a high-quality surface mount signal relay designed for compact and sensitive electronic switching applications. It boasts a 5V DC coil voltage and a switching current capacity of 2 amperes, making it suitable for handling moderate electrical loads with DPDT (Double Pole Double Throw) contact configuration.
Constructed with a flat, compact body measuring 14mm in length, 9mm in width, and a low height of 5.6mm, this relay is optimized for space-saving PCB designs, suitable for various industrial and laboratory equipment requiring reliable signal switching.
The relay features gold plated contacts to provide excellent conductivity and durability, combined with a low contact resistance of 50mΩ. It can switch AC voltages up to 125V and DC voltages up to 220V, supporting a switching power of 60W.
The coil has a resistance of 357Ω and consumes approximately 70mW of power for nominal operation. It is engineered for high-frequency characteristics with low thermal electromotive force (approx. 2μV), enhancing signal integrity and operational reliability in communication, measurement, and quality assurance instruments.
Rated for operation in temperatures ranging from -40°C to 70°C, the relay is designed to perform consistently in varied industrial environments. Its surface mount design allows easy automated insertion, making it well-suited for mass production of electronic assemblies.
The product complies with RoHS standards, reflecting environmental compliance. Made in Japan, the relay ensures superior manufacturing quality and durability.
This signal relay is ideal for use in industrial automation, communication equipment, test and measurement devices, and other electrical control systems requiring efficient and reliable signal switching.
For engineers and designers looking for a compact, low-power relay with robust switching capabilities, the Panasonic TQ2SA-L-5V surface Signal Relay delivers an excellent balance of size, performance, and durability.
