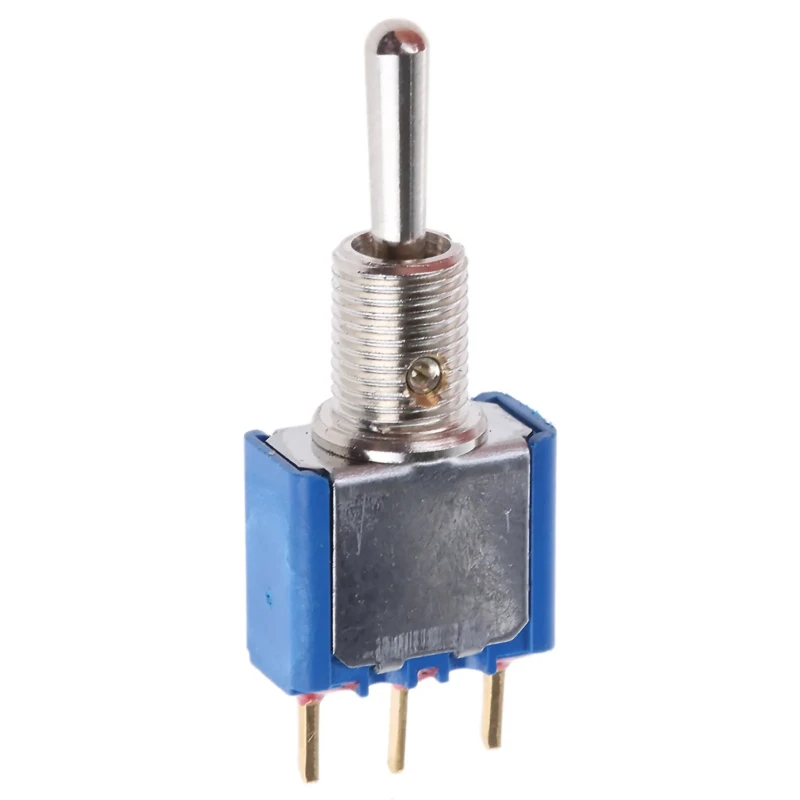

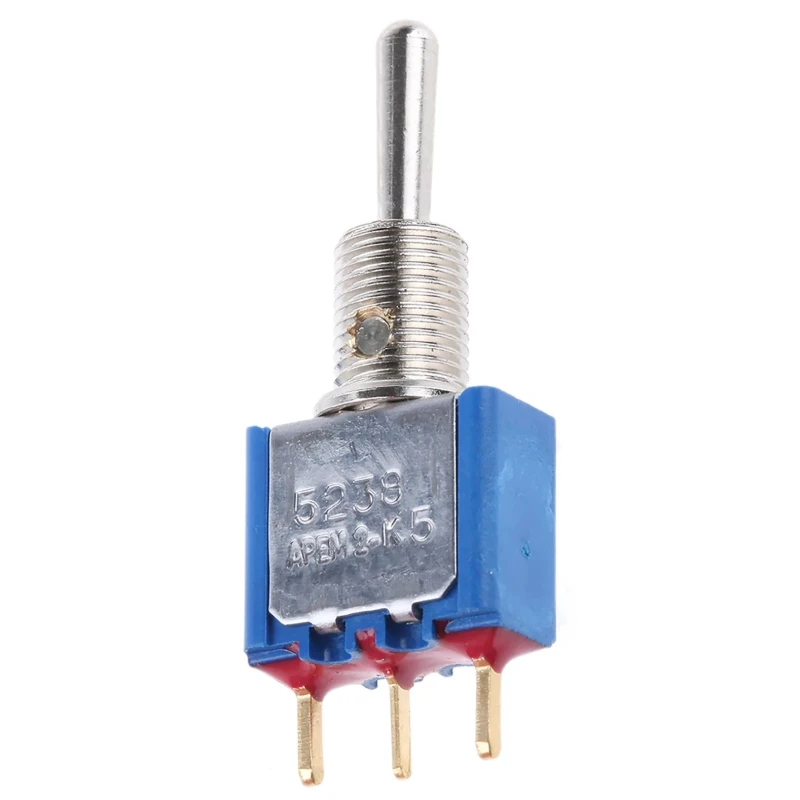

APEM Toggle Switch PCB Mount On-Off-On SPST 24 V DC 250 V AC Nickel Plated Brass Actuator 5238CDB

Free Delivery in India | Lowest Global Shipping Charges

APEM Toggle Switch PCB Mount On-Off-On SPST 24 V DC 250 V AC Nickel Plated Brass Actuator 5238CDB

Name: APEM Toggle Switch PCB Mount On-Off-On SPST 24 V DC 250 V AC Nickel Plated Brass Actuator 5238CDB
Brand: APEM
SKU: 416343
Price: 383.85 INR
Availability: InStock



Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Height	36mm
Length	14mm
Model	5238CDB
Width	12mm
Mount Type	PCB
Series	5000
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off-(On)
Minimum Operating Temperature	-40°C
Panel Cutout Size	6.5 mm
Terminal type	PC Terminal
Standards/Approvals	NFVDE, UL, RoHS, CSA, CECC
Switch Operation	On-Off-On
Actuator Length	10.5mm
Contact DC Voltage	24V dc
Switch Contact Current	400mA
Mechanical Life	100000Operations
Contact AC Voltage	250V ac
Actuator Material	Nickel Plated Brass
RS PRO Toggle Switch, PCB Mount, On-Off-(On), SPDT, Through Hole TerminalBrand	RS PRO

Key Features

The switch features a single pole single throw (SPST) contact configuration.
PCB mounting type with PC terminals ensures easy integration into printed circuit boards.
Actuator is made of nickel plated brass, providing durability.
The switch operates within a temperature range of -40°C to 85°C.
Mechanical life is rated for 100,000 operations, ensuring longevity.
Panel cutout size is 6.5 mm, with overall dimensions of height 36 mm, width 12 mm, and length 14 mm.
Switch contact current is 400 mA suitable for low current applications.
Complies with standards including NFVDE, UL, RoHS, CSA, and CECC.

Product Description

The APEM 5238CDB Toggle Switch is a high-quality PCB mount switch featuring an On-Off-On switch operation and a SPST contact configuration. It is designed for industrial, electrical, automation, and manufacturing applications where reliable low current switching is needed.

With a contact DC voltage rating of 24 V DC and contact AC voltage rating of 250 V AC, this toggle switch suits a wide range of control circuit requirements. The nickel plated brass actuator offers robust mechanical performance and reliable tactile feedback for precise switching action.

The switch operates over a broad ambient temperature range from -40°C up to 85°C, enhancing its versatility in harsh environments. Installation is straightforward with PC terminal types allowing easy soldering to printed circuit boards. The compact size with panel cutout dimension of 6.5 mm and overall dimensions (36 mm height, 12 mm width, and 14 mm length) enable use in compact assemblies.

The mechanical life expectancy is 100,000 operations, providing long-term durability and reducing maintenance cycles. Conformance to international standards such as NFVDE, UL, RoHS, CSA, and CECC reflect its compliance with safety and environmental regulations.

This toggle switch finds applications in industrial automation, control panels, HVAC controls, laboratory instruments, and commercial electrical equipment requiring precise on-off switching functions.

The switch features a SPST contact configuration with On-Off-On switch operation. It is PCB mount type with PC terminal connections for reliable circuit integration. Actuator constructed of nickel plated brass ensures mechanical durability.

Operating temperature range from -40°C to +85°C suits demanding environments. Panel cutout size is 6.5 mm for mounting compatibility. Rated for 24 V DC and 250 V AC contact voltage. Mechanical life of 100,000 operations guarantees long-term use.

Compliance with NFVDE, UL, RoHS, CSA, and CECC standards. Dimensions: Height 36 mm, Width 12 mm, Length 14 mm. Made in France, ensuring quality manufacturing. Explore the Electronics & Electricals Toggle Switch category on EnvMart for this and other high-performance switches suitable for your industrial and automation needs.
