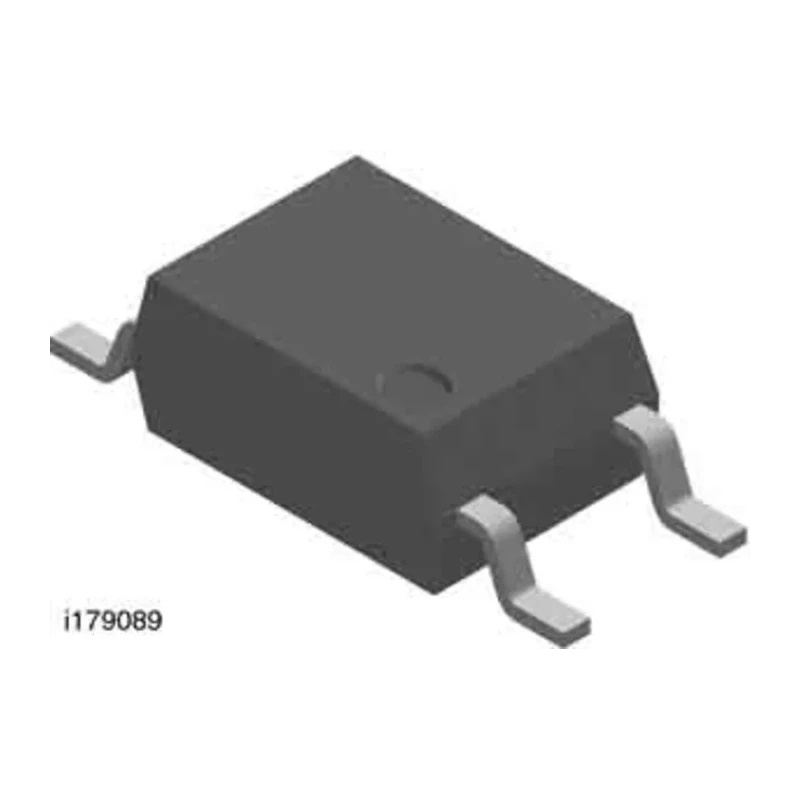

Vishay DC Input Optocoupler Surface Mount 4-Pin SOP High Isolation Voltage 3.75kVrms VOM617A-3T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOM617A-3T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | VOM |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, EN |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 7μs |
| Maximum Current Transfer Ratio | 2% |
| Minimum Current Transfer Ratio | 100% |
Key Features
- Incorporates a GaAs infrared emitting diode with silicon planar phototransistor detector.
- Operates over a temperature range from -55°C to 110°C.
- High isolation voltage of 3750 VRMS ensures safety and circuit protection.
- Typical rise and fall times are 7μs for efficient signal response.
- Maximum input current rated at 60mA with DC input current type.
- Packaged in tape and reel for surface mount applications.
- Compliant with UL and EN standards for quality assurance.
- Features minimum current transfer ratio of 100% and maximum current transfer ratio of 2%.
Product Description
Vishay VOM617A-3T is a DC Input Optocoupler designed for reliable signal transmission between two electrically separated circuits. The device utilizes a gallium arsenide (GaAs) infrared emitting diode coupled optically to a silicon planar phototransistor detector. Housed in a 4-pin Small Outline Package (SOP) with a 100 mil lead pitch, it is intended for surface mount technology (SMT) applications.
This optocoupler is rated for an operating temperature range from -55°C to 110°C, making it suitable for various industrial and electronic applications. It provides a high isolation voltage of 3750 VRMS to ensure safety and protection from high voltage spikes.
Featuring low coupling capacitance and fast switching times with typical rise and fall times of 7 microseconds, the VOM617A-3T supports high-speed signal transmission. The device handles a maximum forward voltage of 1.6V and maximum input current of 60mA, optimized for DC input current.
Its packaging in tape and reel format supports automated assembly processes typical in industrial manufacturing and electronics production lines. Conformance to UL and EN standards guarantees compliance with international safety and performance requirements.
GaAs infrared diode emitter and silicon planar phototransistor detector provide efficient optical coupling. High isolation voltage of 3750 VRMS ensures reliable circuit separation. Operating temperature range from -55°C to 110°C for demanding environments.
Surface mount 4-pin SOP package suitable for compact PCB layouts. Fast typical rise and fall times of 7μs for responsive switching. Maximum input current of 60mA designed for DC input applications. Packaging in tape and reel format facilitates automated SMT processes.
UL and EN approved for industrial and commercial applications.
The Vishay VOM617A-3T optocoupler is ideal for use in industrial automation, power supply isolation, signal conditioning, and electronic instrumentation. It ensures electrical isolation while allowing transmission of digital signals in control, communication, and measurement equipment.
Explore the Vishay range of Optocouplers and related electronic components available on EnvMart for quality and reliability in your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this model is 3750 VRMS, ensuring reliable circuit separation and safety.
It operates over a temperature range from -55°C to 110°C, making it suitable for various industrial applications.
The maximum input current rated for this unit is 60mA, designed for DC input applications.
The typical rise and fall times are 7 microseconds, allowing for efficient signal response.
It is packaged in tape and reel format, which facilitates automated assembly processes in surface mount technology applications.
This model features a 4-pin configuration, suitable for compact PCB layouts.
The output type of the VOM617A-3T is a phototransistor, which is used for signal transmission.
It is compliant with UL and EN standards, ensuring quality assurance and safety in its applications.
The minimum current transfer ratio is 100%, which supports effective signal coupling.
The maximum forward voltage is rated at 1.6V, which is optimized for its operation.
This optocoupler is suitable for applications such as industrial automation, power supply isolation, and electronic instrumentation.
It supports surface mounting, making it ideal for modern PCB designs.
