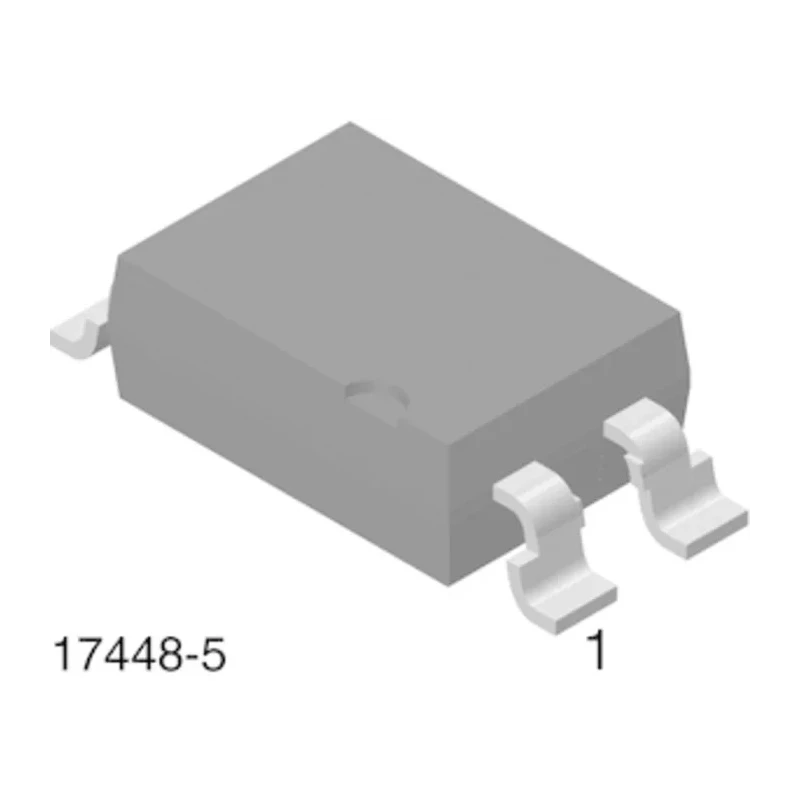

Vishay DC Input Optocoupler Surface Mount 4-Pin 60mA 1.65V Forward Voltage SFH6156-4
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Model | SFH6156-4 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | SFH6156 |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.65V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 320% |
| Minimum Current Transfer Ratio | 40% |
Key Features
- This optocoupler features a GaAs infrared diode emitter optically coupled to a silicon planar phototransistor detector.
- Designed for signal transmission between electrically separated circuits with an isolation voltage of 5300 VRMS.
- Typical rise and fall times of 2 microseconds ensure fast response.
- Maximum forward voltage is 1.65V with a maximum input current of 60mA.
- Maximum current transfer ratio of 320% and minimum of 40% enable accurate signal amplification.
- Operates reliably between -55°C and 100°C temperature range.
- Surface mount package enables compact PCB design.
- Complies with standards including EN60950-1, IEC 60065, UL1577, and DIN EN 60747-5-5.
Product Description
Vishay SFH6156-4 DC Input Optocoupler Surface Mount is a high-performance optoelectronic device featuring a GaAs infrared diode emitter paired with a silicon planar phototransistor detector in a durable 4-pin surface mount plastic package. This configuration enables effective signal transmission between two isolated electrical circuits with superior electrical isolation of 5300 VRMS.
The device exhibits typical rise and fall times of 2 microseconds ensuring rapid signal switching capabilities and has a maximum forward voltage of 1.65 volts at a maximum input current of 60 milliamps. It delivers a current transfer ratio (CTR) ranging from 40% minimum up to 320% maximum, providing excellent linearity depending on the forward current applied. The SFH6156-4 operates across a wide temperature range from -55°C to 100°C, making it suitable for demanding industrial and commercial environments.
This optocoupler conforms to important international standards such as EN60950-1, BSI IEC 60950, cUL, IEC 60065, and UL1577, ensuring compatibility and safety across multiple regulatory regimes. The surface mount package allows easy integration into compact circuit boards and automated assembly processes.
Applications include switchmode power supply systems, telecom equipment, and portable battery-powered devices requiring high-voltage isolation and quick response times. The device does not meet automotive standard requirements and is manufactured in Malaysia.
This optocoupler features a GaAs infrared diode emitter optically coupled to a silicon planar phototransistor detector. Designed for signal transmission between electrically isolated circuits with 5300 VRMS isolation voltage.
Fast switching characteristics with typical rise and fall times of 2 microseconds. Maximum forward voltage of 1.65 volts and maximum input current of 60 mA. Current transfer ratio ranging from 40% minimum to 320% maximum depending on forward current.
Operating temperature range from -55°C to 100°C. Compliance with multiple safety and performance standards including EN60950-1 and UL1577. Surface mount 4-pin package suitable for compact and automated PCB assembly. Applications in switchmode power supplies, telecom, and battery-operated equipment.
Explore more electronic components and Optocouplers at EnvMart to meet your industrial, laboratory, and commercial requirements with trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 60mA.
It features an isolation voltage of 5300 VRMS, allowing for effective signal transmission between electrically isolated circuits.
This unit operates reliably between -55°C and 100°C, making it suitable for various industrial and commercial environments.
The typical rise and fall times are both 2 microseconds, ensuring fast response for signal switching.
The maximum forward voltage for this model is 1.65V.
The current transfer ratio (CTR) ranges from a minimum of 40% to a maximum of 320%, depending on the forward current applied.
It comes in a surface mount 4-pin package, suitable for compact PCB designs and automated assembly processes.
It complies with several important standards including EN60950-1, IEC 60065, UL1577, and DIN EN 60747-5-5.
This optocoupler is suitable for applications such as switchmode power supply systems, telecom equipment, and portable battery-powered devices.
This model has one channel.
The country of origin for this optocoupler is Malaysia.
It is packaged in tape and reel format, which is suitable for automated assembly.
