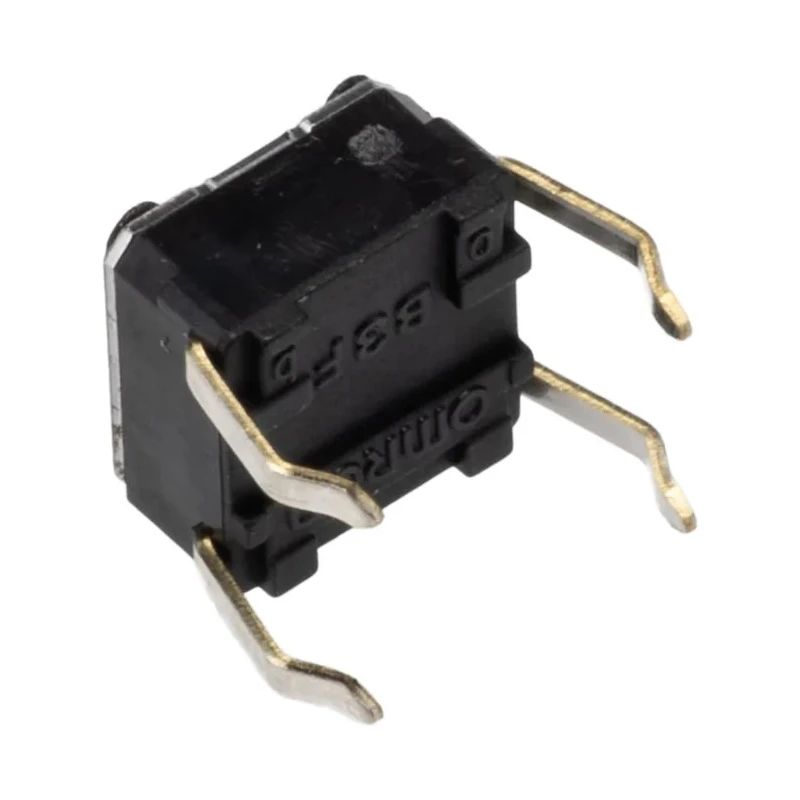

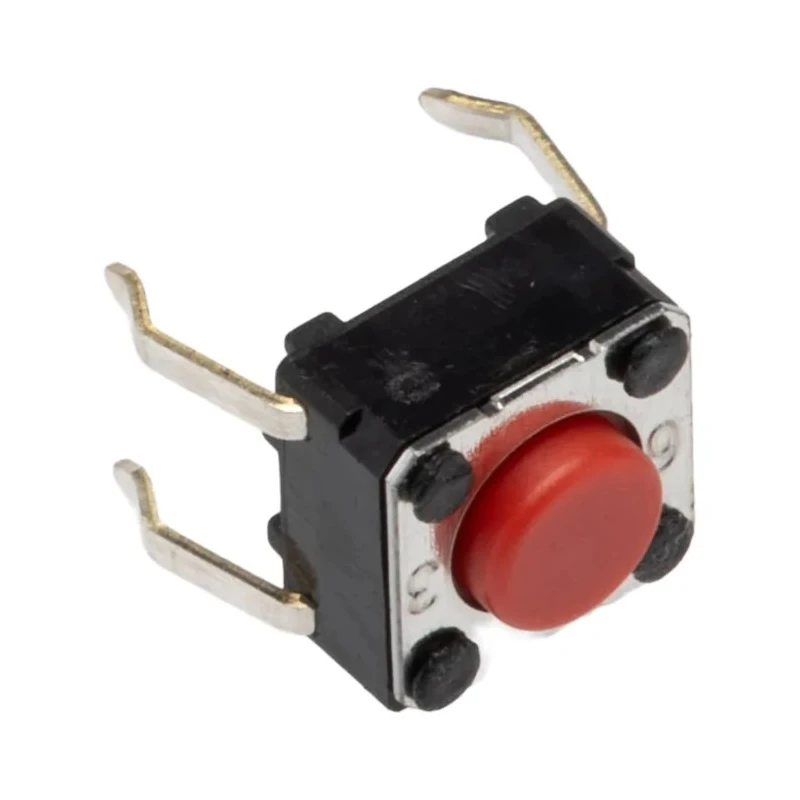

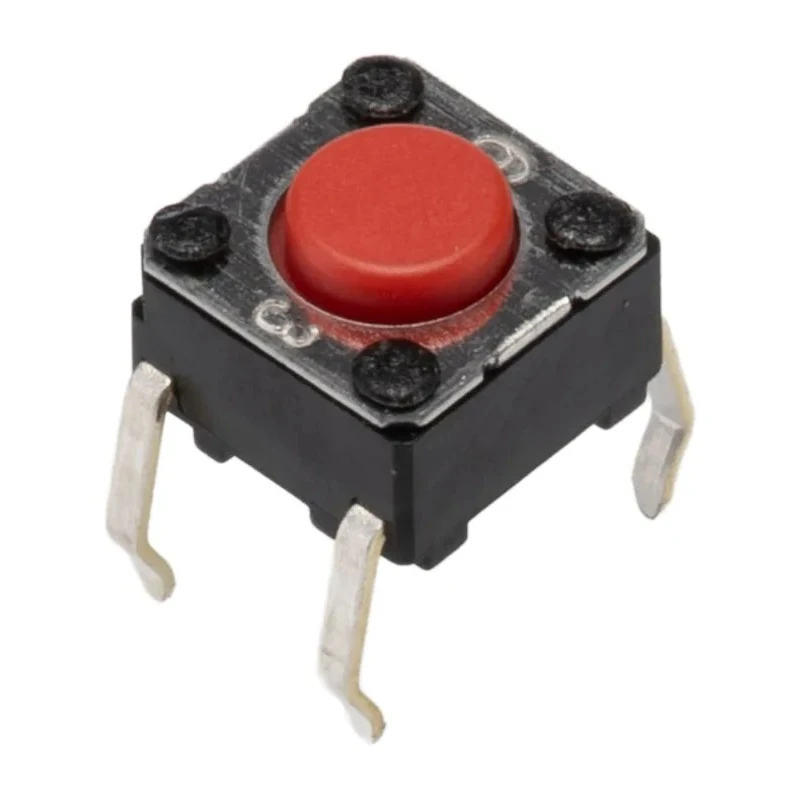

Omron Tactile Switch Plunger 0.9 mm SPST 50mA 24 V dc Through Hole B3F-1006
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 4.3mm |
| Length | 6mm |
| Model | B3F-1006 |
| IP Rating | IP00 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Actuator Length | 0.9mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 50mA |
| Operating Force | 4.9N |
| Mechanical Life | 50000Operations |
| Aratas Grey Tactile Switch Plunger, 0.9 mm, SPST 50mA 24 V dc, Through HoleBrand | Omron |
Key Features
- Compact 6mm x 6mm size for space efficient applications.
- Operates reliably within temperature range -25°C to 70°C.
- Mechanical life rating of 50,000 operations ensuring durability.
- Operating force required is 4.9N, providing positive tactile feedback.
- Designed with solder terminal type for robust PCB mounting.
- Non-illuminated switch tailored for control and user input devices.
- Rated IP00, indicating no environmental protection but suitable for protected environments.
- Manufactured in Japan ensuring high quality standards.
Product Description
Omron B3F-1006 tactile switch plunger is a compact, precision electrical switch designed primarily for use in audio equipment, office electronics, communication devices, measuring instruments, TVs, and PVRs. This switch features a 0.9 mm plunger actuator providing a positive click action and excellent tactile feedback for user input.
The switch has a Single Pole Single Throw (SPST) contact configuration, supports a contact current of 50mA at 24 V dc, and is designed for through-hole mounting on printed circuit boards using solder terminals. Its compact dimensions are 6 mm in length, 6 mm in width, and 4.3 mm in height, making it suitable for space-constrained applications.
Rated to operate within a temperature range of -25°C to 70°C, it boasts a mechanical life of 50,000 operations, ensuring reliable long-term performance in industrial, laboratory, manufacturing, and commercial environments. The operating force of 4.9N delivers a well-defined tactile response, essential for precision control interfaces.
This switch is IP00 rated, meaning it has no special dust or water protection and should be used in enclosed or protected environments. The absence of illumination makes it suitable for applications where lighting is unnecessary.
Compact 6x6mm footprint with 0.9 mm plunger actuator. SPST contact for simple on/off switching. Solder terminal ensures secure PCB connections. Positive tactile feedback with 4.9N operating force. Durable with 50,000 mechanical cycles lifespan.
Operating temperature range: -25°C to 70°C. Manufactured in Japan to high-quality standards.
Omron tactile switches like the B3F-1006 are widely used across various electronics and industrial automation applications requiring reliable, precise user input switches. They suit equipment in audio and communications fields and other precision instruments.
Explore more Tactile Switches and components in the Electronics & Electricals category on EnvMart for comprehensive industrial and commercial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The mechanical life rating of this tactile switch is 50,000 operations, ensuring reliable long-term performance.
It operates within a temperature range of -25°C to 70°C, making it suitable for various environments.
The switch features a Single Pole Single Throw (SPST) contact configuration, allowing for simple on/off switching.
The required operating force for the B3F-1006 is 4.9N, providing positive tactile feedback during operation.
This model has dimensions of 6 mm in length, 6 mm in width, and 4.3 mm in height, making it compact for space-efficient applications.
It is designed for through-hole mounting on printed circuit boards using solder terminals.
The maximum contact current for the B3F-1006 is 50mA at 24 V dc, suitable for various electronic applications.
No, this switch is non-illuminated, making it suitable for applications where lighting is unnecessary.
The B3F-1006 has an IP00 rating, indicating no special dust or water protection, and should be used in protected environments.
The actuator style of this switch is a plunger with a length of 0.9 mm, providing a positive click action.
This tactile switch complies with RoHS standards, ensuring it meets environmental regulations.
It is manufactured in Japan, ensuring adherence to high-quality standards.
