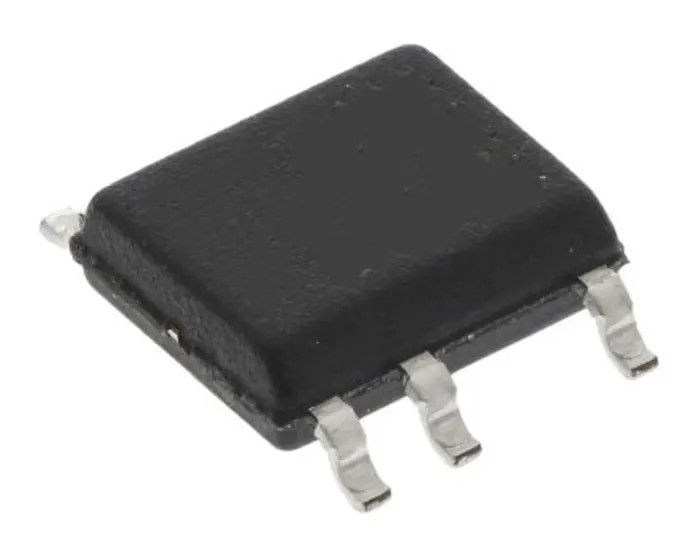

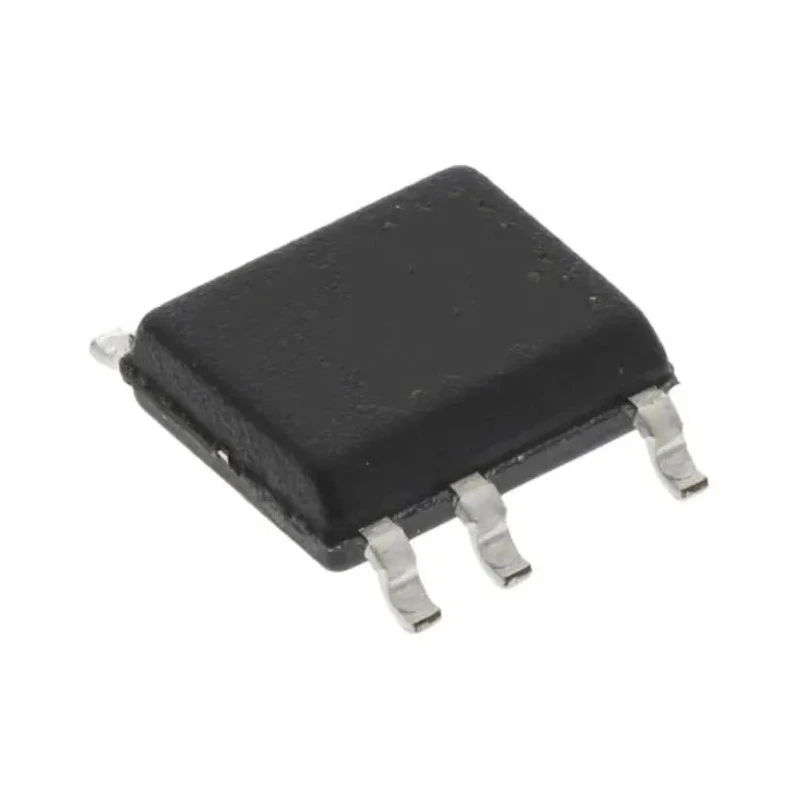

onsemi 7-Pin SOIC 5-Channel Current Mode PWM Controller, 65 kHz, 28V, 14V Output, 500mA Output Current NCP12400CBAAB0DR2G

onsemi NCP12400CBAAB0DR2G is a 7-pin SOIC package 5-channel PWM controller designed for power management applications requiring precise current mode control. This device operates at a fixed frequency of 65 kHz and supports a maximum supply voltage up to 28 V, delivering an output voltage of 14 V and output current up to 500 mA per channel.

Engineered with a flyback topology, the NCP12400 incorporates advanced features like Dynamic Self-Supply, which simplifies auxiliary supply design by activating an internal startup current source during power-up, transients, and standby modes. It also includes a special high-voltage detector to detect AC input unplug events and brown-out conditions, enhancing system reliability.

The PWM controller offers an adjustable compensation network and timer-based fault detection to ensure overload protection and maintain maximum power independent of input voltage variations. Its maximum duty cycle of 85% enables highly efficient power conversion, meeting CoC Tier 2 compliance for average efficiency.

With a compact size of 5 mm by 4 mm with a 1.5 mm profile, this surface mount device is suitable for space-constrained industrial, consumer electronics, and power supply manufacturing applications. The robust design supports operation in extreme temperatures from -40°C to 150°C, making it ideal for automotive and industrial environments.

The device features a current-mode PWM control topology for flyback converters. Dynamic Self-Supply function simplifies auxiliary power design. High voltage detector enables brown-out and unplug detection. Timer-based fault detection for overload protection.

Compact 7-pin SOIC surface mount package. Supports wide operating temperature range from -40°C to 150°C. Designed for industrial and automotive power management applications. Meets CoC Tier 2 average efficiency compliance.

This PWM Controller is a reliable choice for power management in industrial machines, HVAC systems, construction electronics, and manufacturing equipment requiring efficient and robust PWM solutions. Explore more power management ICs and controllers on EnvMart to meet your design and production needs.
