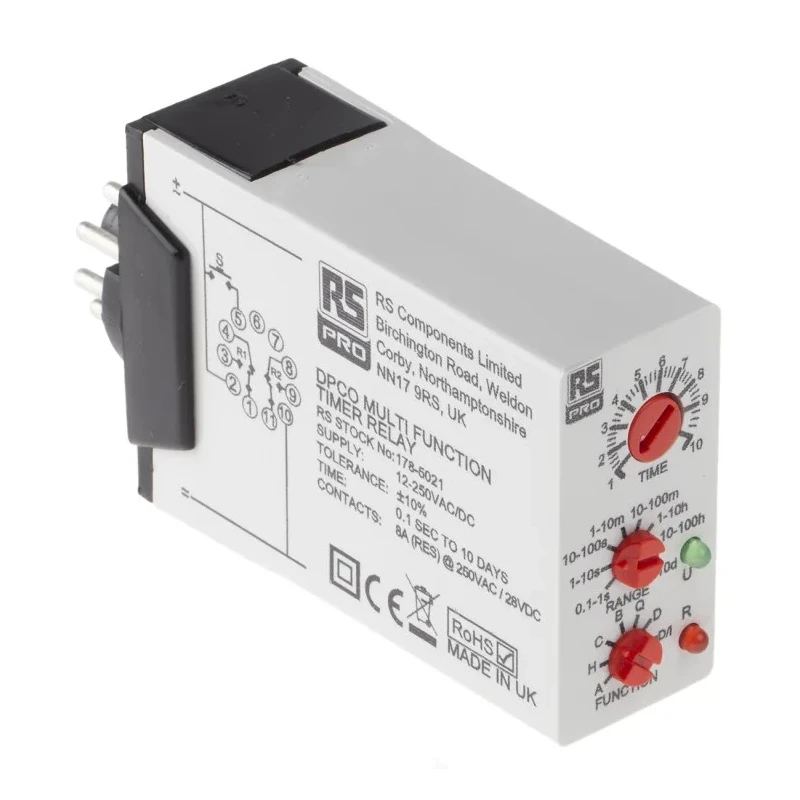

RS PRO Timer Relay, Multifunction, 12 to 240 V ac/dc Supply, DPDT Contact Configuration, 0.1 s to 100 Days Timer 178-5021

The RS PRO 178-5021 timer relay is a high-performance multifunction device engineered for industrial automation and control systems. It operates within a wide supply voltage range of 12 to 240 V ac/dc, making it versatile for various electrical environments. The timer supports an adjustable timing range from 0.1 seconds up to 100 days, allowing precise timing functions for complex applications.

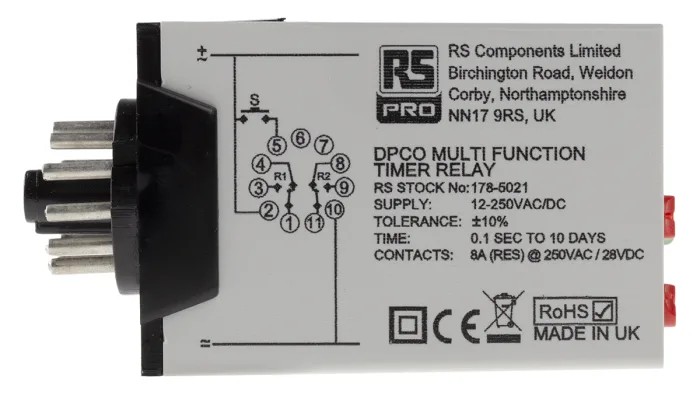

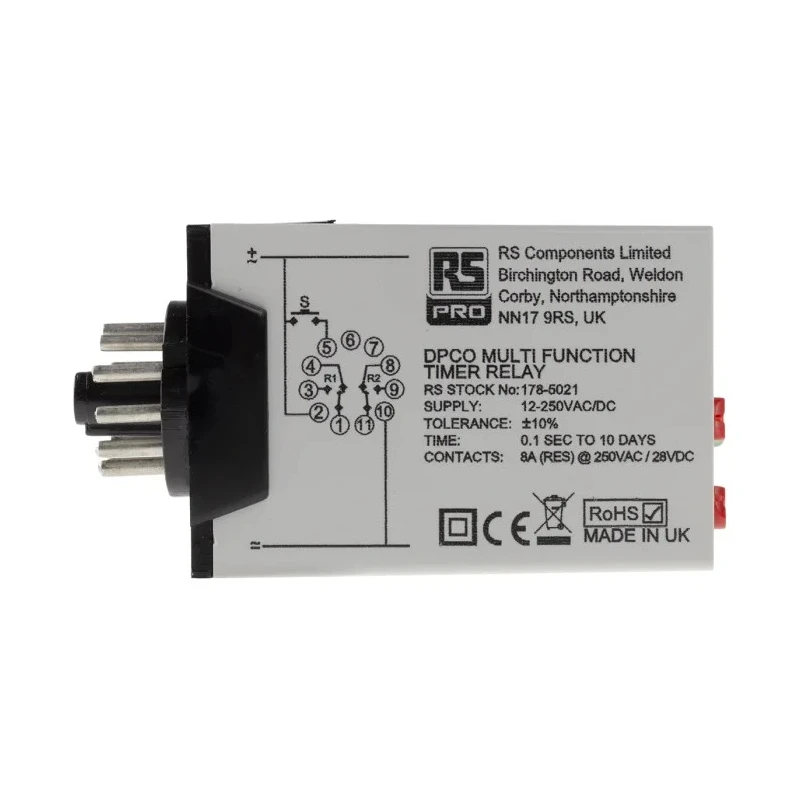

Its DPDT (Double Pole Double Throw) contact configuration with an 8A contact current rating ensures reliable switching for diverse industrial, manufacturing, and automation setups. The device is designed with an 11-pin terminal configuration, facilitating straightforward installation and wiring in control panels.

The relay maintains operational integrity across a temperature range from -20°C to 65°C, suitable for harsh industrial conditions. Dual LED indicators provide immediate visual feedback on operational status, enhancing user convenience and maintenance efficiency.

Compact physical form factor with dimensions 74mm height, 48mm length, and 24mm width optimizes space utilization in electrical enclosures. This timer relay complies with RoHS standards and is produced in the United Kingdom adhering to stringent quality and safety requirements.

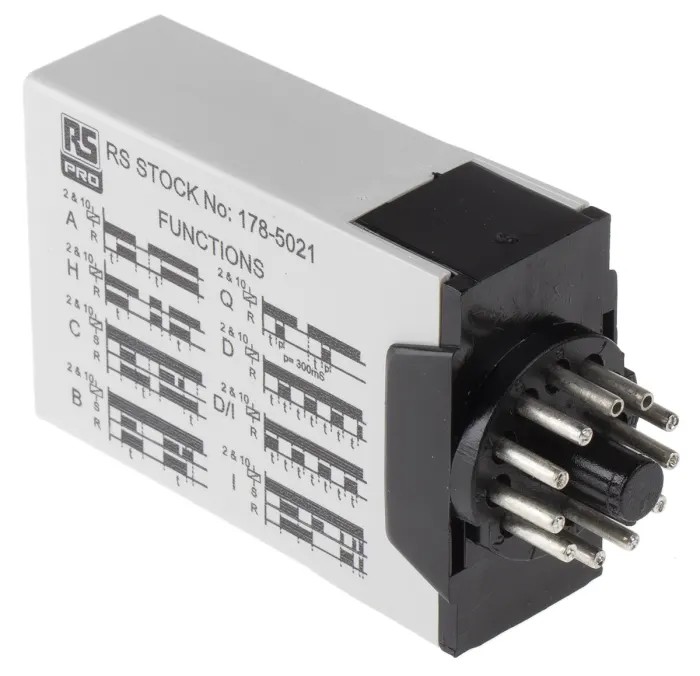

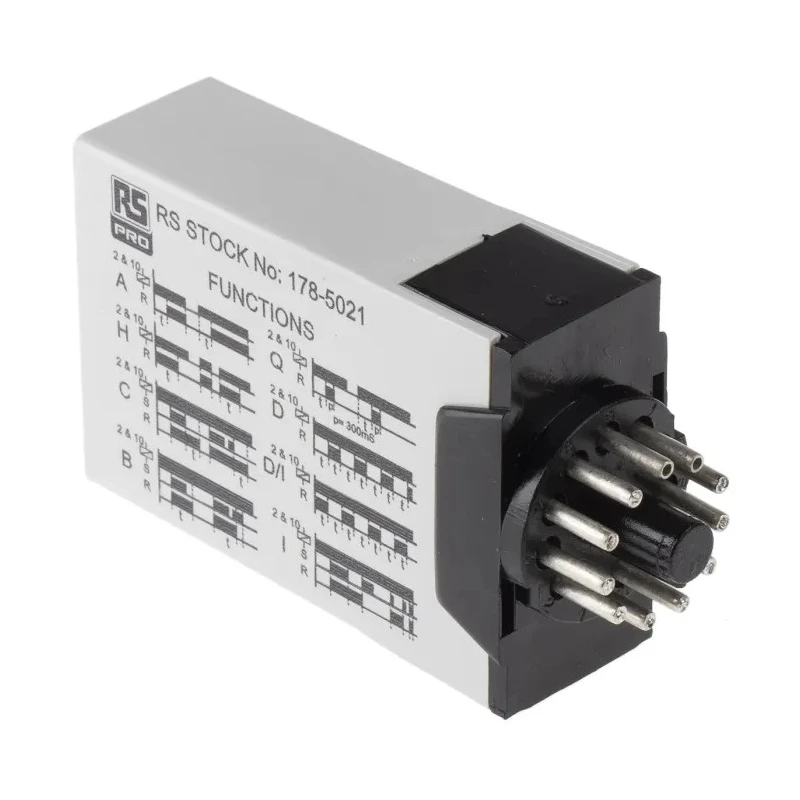

Common use cases include industrial process control, automation timing, delay functions in electrical circuits, and any application requiring versatile and robust timing control. Its multifunction capabilities make it adaptable to numerous timing scenarios, enhancing system flexibility.

The timer features a DPDT contact configuration suitable for diverse industrial control applications. It supports an 8A contact current for reliable switching performance. Operating temperature spans from -20°C to 65°C ensuring robust operation in varied environments.

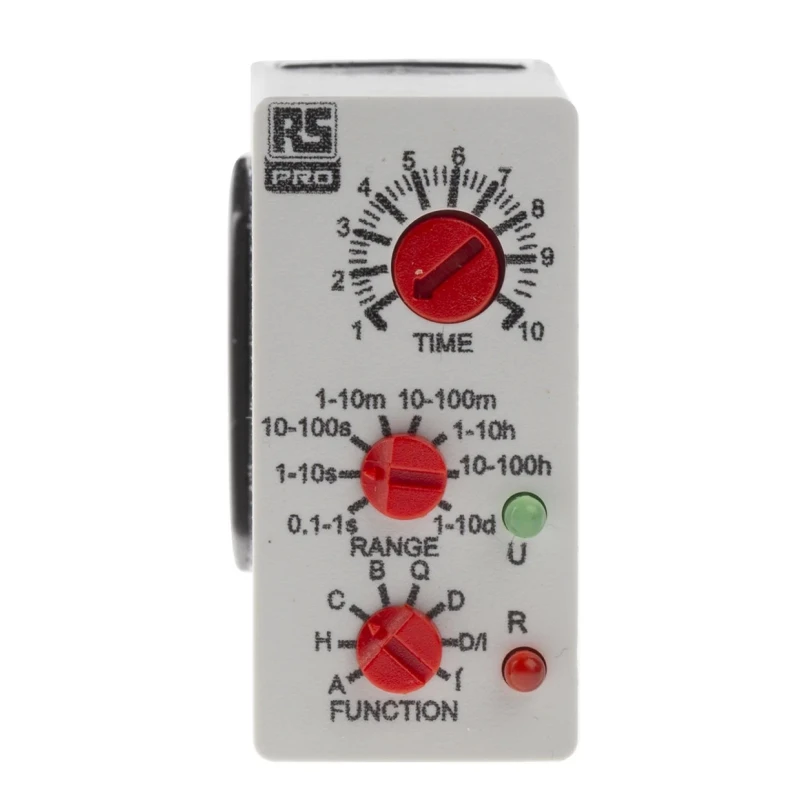

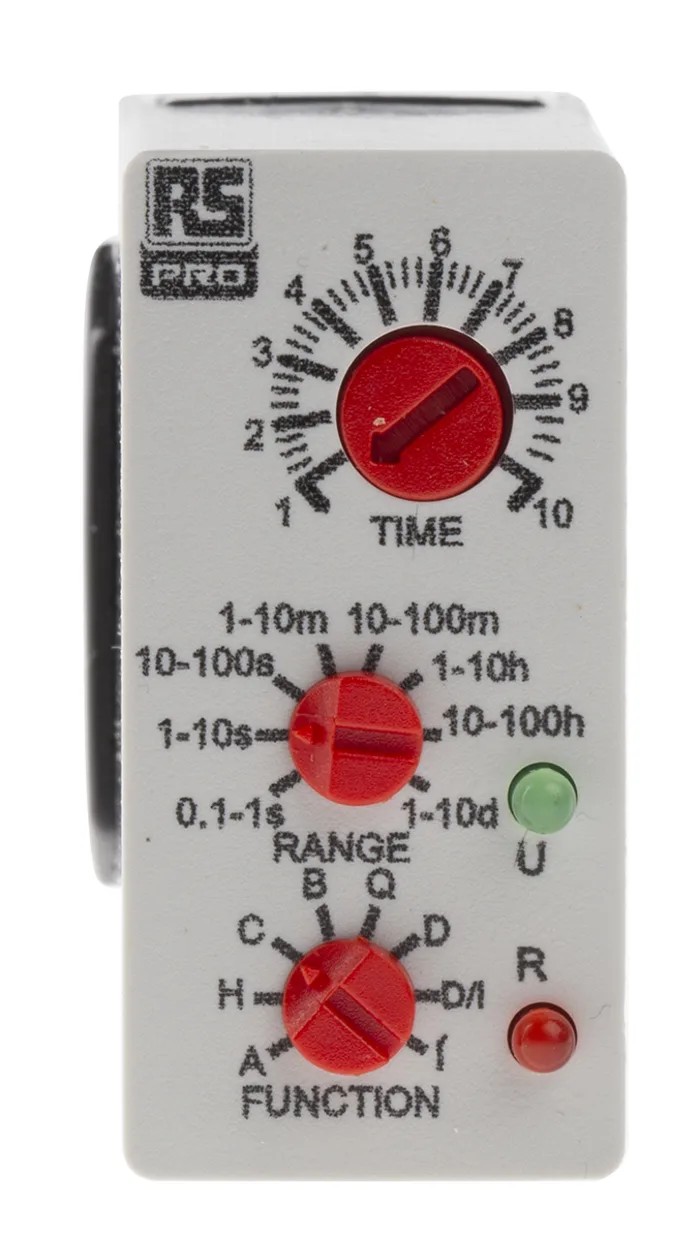

Equipped with dual LED indication for clear status monitoring. Designed with an 11-pin terminal type for easy integration into control panels. Compact dimensions: Height 74mm, Length 48mm, Width 24mm allow efficient use of panel space.

Certified RoHS compliant and manufactured under high-quality standards in the United Kingdom.

Explore the RS PRO Timer Relay series for advanced industrial automation solutions. The extensive multifunction timer options support precise and reliable control in rigorous environments.
