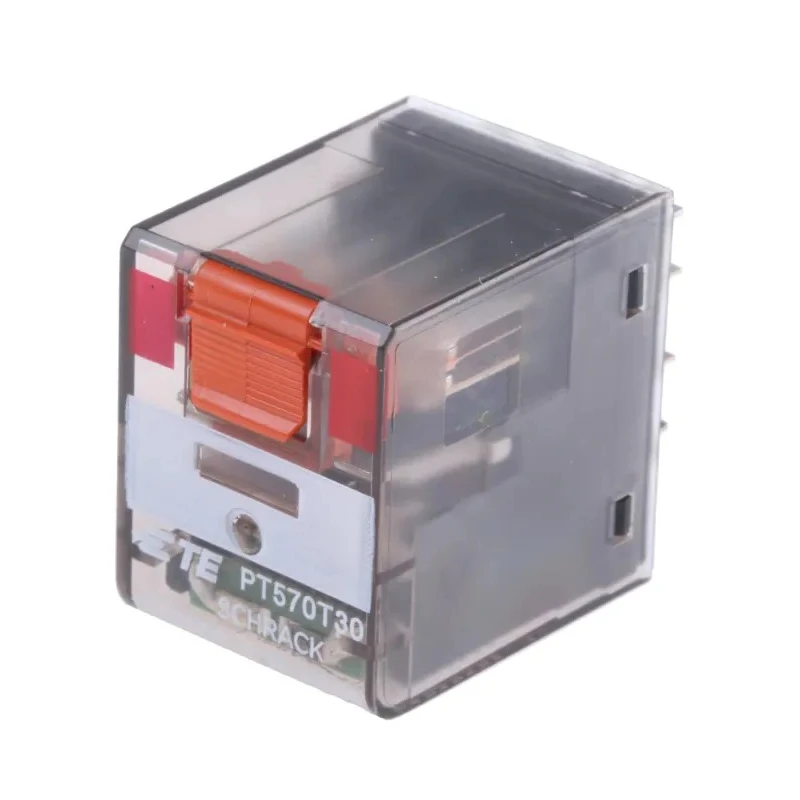

TE Connectivity PCB Power Relay 230V AC Coil, 6A Switching Current, 4PDT PT570T30 8-1415001-1

TE Connectivity PT570T30 8-1415001-1 is a high-performance PCB power relay designed for industrial and automation applications requiring reliable control and switching.

This power relay features a coil voltage of 230V AC and supports switching currents up to 6A, making it suitable for various electrical control circuits. The 4PDT contact configuration allows multiple circuits to be controlled simultaneously, enhancing operational flexibility.

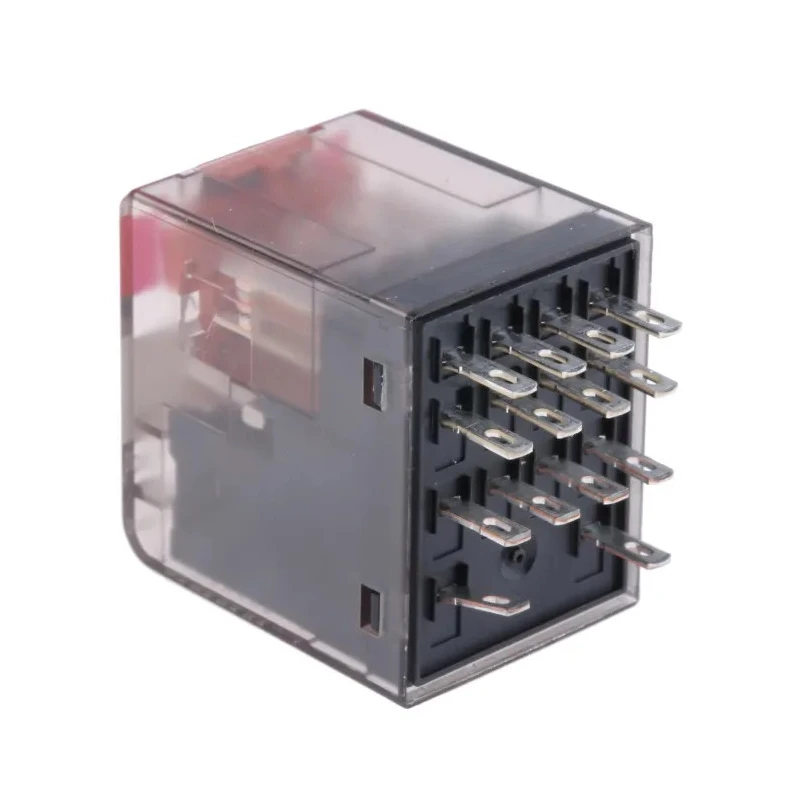

The relay is designed for PCB mount with quick connect terminals, enabling straightforward installation and replacement in control panels and other electronic assemblies. Constructed with silver nickel alloy contact material, it provides excellent electrical conductivity and long contact life.

Operating reliably across a wide temperature range from -40°C to 70°C, it is well-suited for use in harsh environmental conditions typical in industrial, manufacturing, HVAC, and electrical automation sectors.

The PT series includes features such as an LED and mechanical indicator for status monitoring and a manual lockable test facility that simplifies maintenance and testing procedures. The isolation between coil and contacts withstands voltages up to 2.5 kV, enhancing safety and dependability in demanding applications.

This relay meets rigorous standards including VDE, UL, RoHS, and IEC, ensuring compliance with international safety and environmental requirements. Operates with a coil voltage of 230V AC for robust control performance. Features a 4PDT contact configuration suitable for complex circuit switching.

Mounted on PCBs using quick connect terminals for easy installation. Capable of switching currents up to 6 amperes with a switching power of 1.5 kVA. Built to operate reliably from -40°C up to 70°C ambient temperature. Constructed with silver nickel alloy contact material for durability and conductivity.

Complies with VDE, UL, RoHS, and IEC standards ensuring quality and safety. Includes LED mechanical indicator and manual lockable test facility for maintenance ease. Dimensions are compact at 22.5mm width, 28mm length, and 35mm height for space-efficient applications.

This PCB power relay is ideal for use in industrial automation systems, electrical equipment, and other manufacturing processes requiring dependable and efficient relay switching performance. Explore the range of TE Connectivity Power Relays for comprehensive solutions in electronic control applications on EnvMart.
