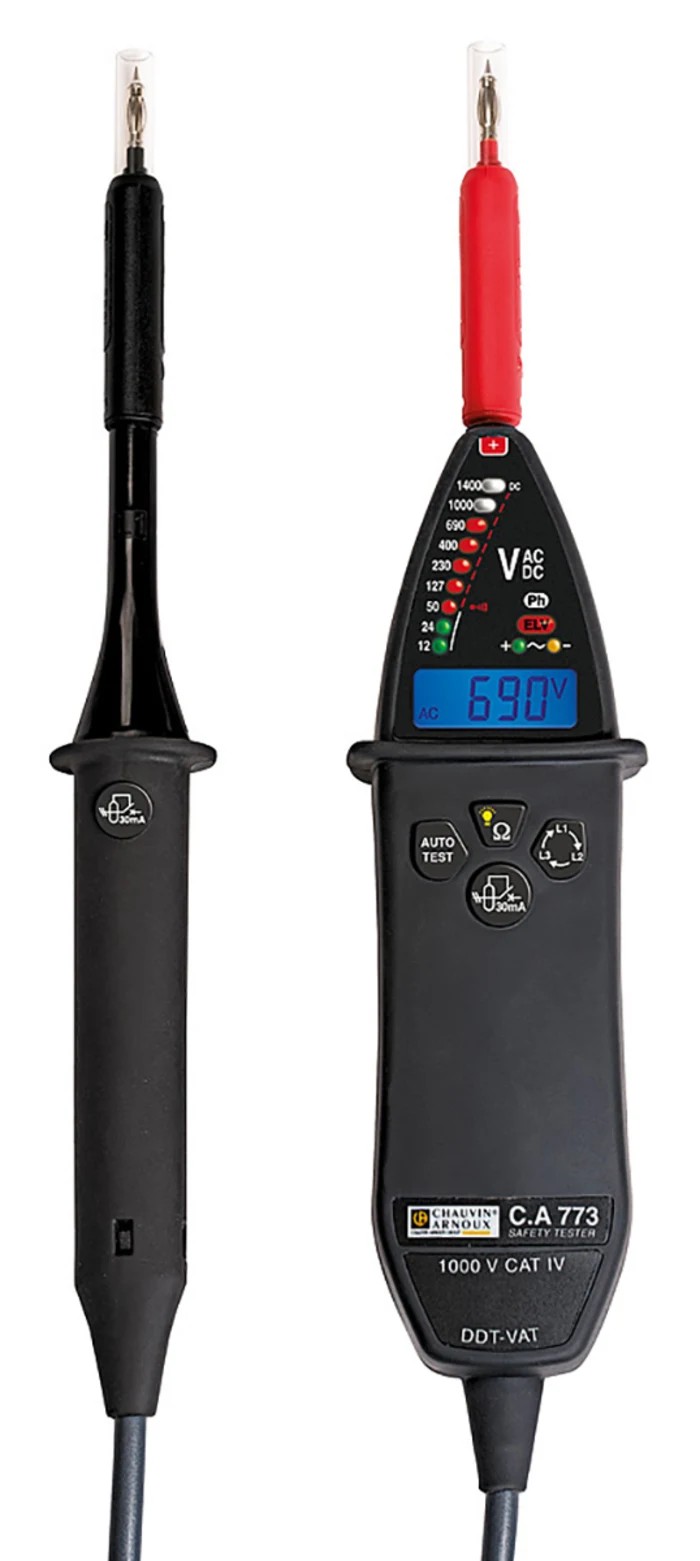

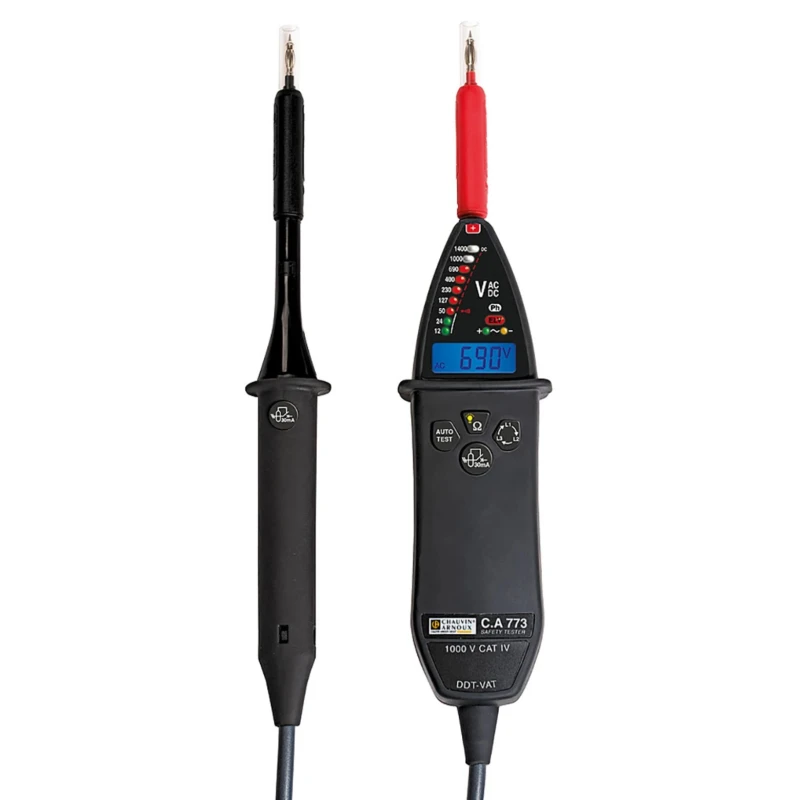

Chauvin Arnoux LCD Backlight Voltage Tester 1000 V AC, 1400 V DC Continuity Check CAT IV P01191773A
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Testers Chauvin Arnoux, LCD Backlight Voltage Tester, 1000 V ac, 1400V dc Contin |
| Display Type | LCD Backlight |
| Brand | Chauvin Arnoux |
| Battery type | LR6, AA Alkaline |
| Height | 39mm |
| Length | 228mm |
| Model | P01191773A |
| IP Rating | IP65 |
| Gross Weight | 350g |
| Width | 60mm |
| Maximum Operating Temperature | +45°C |
| Minimum Operating Temperature | -15°C |
| Maximum Voltage | 1000, 1400V ac |
| Standards/Approvals | CE, IEC 612433 |
| Safety Category Level | CAT IV |
| Safety Category Voltage | 1kV |
| IEC 61243-3 | 2009, EN 61243-3:2010, IEC 61010 1,000 V CAT IV |
Key Features
- Equipped with an easy-to-read LCD backlight display.
- Includes continuity check with audible and visual indication.
- Supports RCD trip testing for devices rated 30 mA or less.
- Features IP65 protection rating for durability in harsh environments.
- Powered by LR6 AA alkaline batteries for reliable operation.
- Designed for single-pole phase voltage absence testing.
- Offers two-pole phase sequence testing using a 2-wire method.
- Includes lighting of the test probe for clear point of measurement.
Product Description
Chauvin Arnoux P01191773A LCD Backlight Voltage Tester is designed for industrial and electrical maintenance professionals requiring accurate detection of voltage absence and continuity with enhanced safety features. This CAT IV rated tester supports voltage measurements up to 1000 V AC and 1400 V DC, ensuring safe operation in high-energy electrical environments.
The instrument includes a clear LCD backlight display, audible and visual continuity checking, and phase rotation testing by a two-pole 2-wire method. It also supports RCD trip testing for devices rated at 30 mA or less, allowing comprehensive circuit safety verification.
With an IP65 ingress protection rating, this tester is resistant to dust and water, suitable for demanding industrial, laboratory, construction, and maintenance applications. Powered by LR6 AA alkaline batteries, it offers reliable field use with long battery life.
Key functionalities include lighting the test probe for precise measurement points and single-pole phase testing, making it a versatile tool in electrical testing and fault detection tasks.
The C.A 773 model conforms to international standards IEC 61243-3:2009 and EN 61243-3:2010, providing assured quality and accuracy. It comes supplied with removable IP2X test probes of 4 mm diameter, a user's guide in five languages, and a Velcro strap for easy handling.
Equipped with an easy-to-read LCD backlight display. Continuity check with audible and visual indication. Supports RCD trip test for safety device verification. Watertight and dust-resistant IP65 rating. Powered by standard LR6 AA alkaline batteries.
Phase sequence tests for electrical system diagnostics. Includes lighting of measurement point for enhanced clarity. Compact and ergonomic design for field portability. Complies with IEC and EN standards for voltage testing safety.
Suitable for industrial, laboratory, electrical maintenance applications.
This Voltage Tester provides superior performance for electricians, technicians, and engineers involved in electrical system installation, maintenance, and safety compliance audits. Explore more voltage testing solutions on EnvMart for comprehensive electrical diagnostics tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure voltages up to 1000 V AC and 1400 V DC.
It complies with CAT IV safety category, suitable for high-energy electrical environments.
It has an IP65 rating, making it resistant to dust and water.
It features an LCD backlight display for easy readability in various lighting conditions.
The operating temperature range is from -15°C to +45°C.
It is powered by LR6 AA alkaline batteries.
It supports RCD trip testing for devices rated at 30 mA or less and phase rotation testing using a two-pole method.
The dimensions are 228 mm in length, 60 mm in width, and 39 mm in height.
It conforms to IEC 61243-3:2009 and EN 61243-3:2010 standards.
It comes with removable IP2X test probes, a user's guide in five languages, and a Velcro strap for handling.
It is suitable for industrial, laboratory, and electrical maintenance applications.
