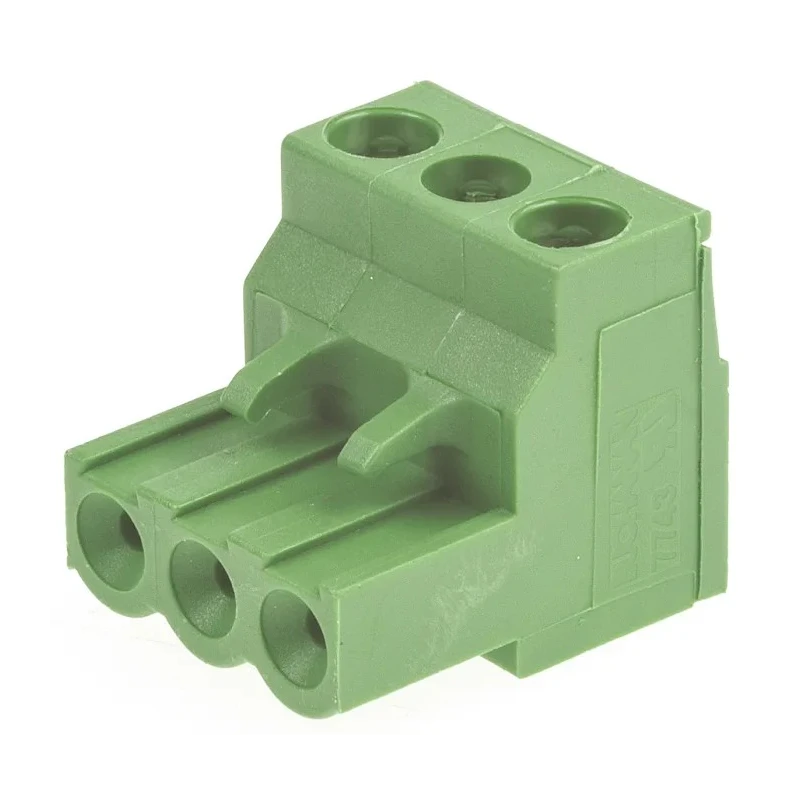

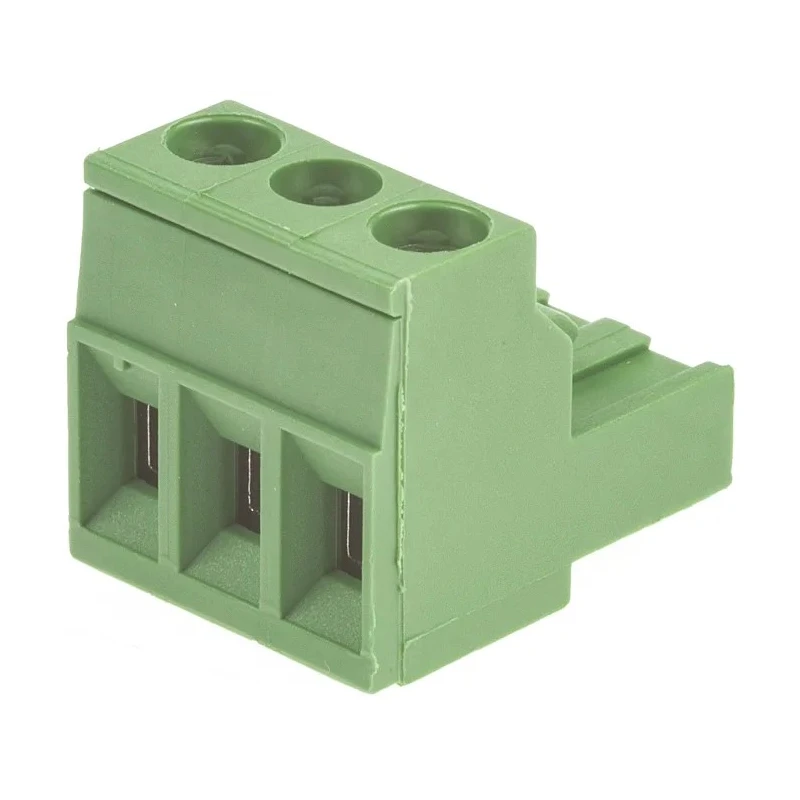

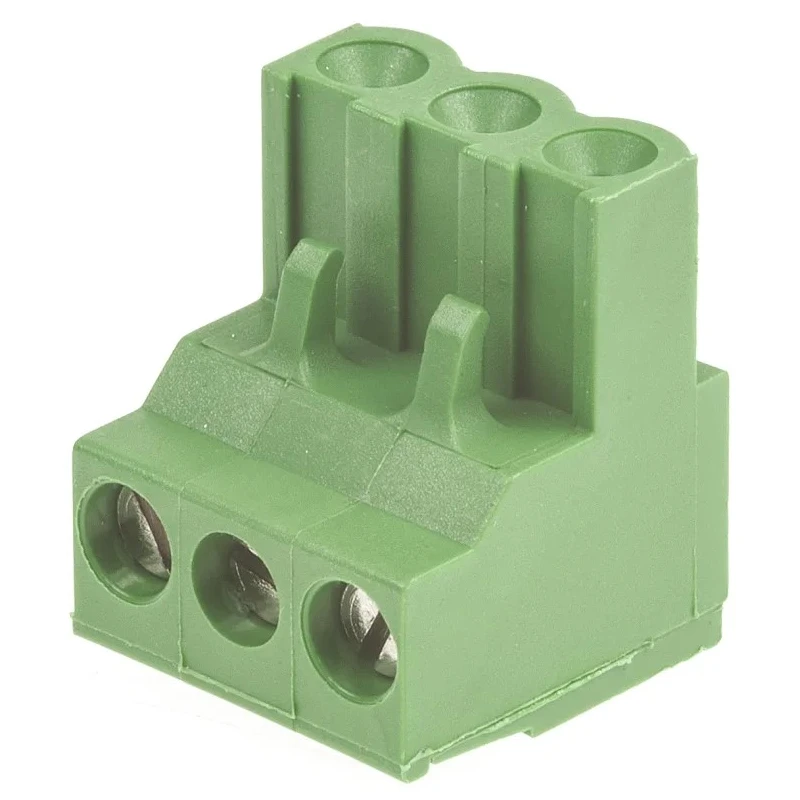

TE Connectivity Buchanan Series Pluggable Terminal Block 3-Contact 5 mm Pitch 1 Row 796640-3

TE Connectivity 796640-3 is a high-quality Buchanan Series pluggable terminal block engineered for electronic and electrical applications requiring secure and efficient PCB connections. This 3-contact terminal block is designed with a 5 mm pitch and a single row, making it ideal for compact and precise circuit board assemblies.

The product features a durable green polyamide 6.6 GF housing that offers excellent electrical insulation and mechanical strength. Its right angle orientation enables optimized PCB layouts and easy insertion in constrained spaces. It supports wire sizes ranging from 0.05 mm² to 3 mm², suitable for 30 to 12 AWG cables, providing versatility for various wiring demands.

This terminal block supports a current rating of 15 A and is rated for operation at voltages up to 300 V AC, making it reliable for many industrial, commercial, and electronic uses. The secure M3 screw terminals ensure solid wire retention while the side stackable feature allows multiple units to be mounted adjacently for efficient space utilization.

Additional user-friendly features include a retention latch and a polarization key that prevent accidental disconnections and ensure correct assembly, enhancing safety and reliability in control panels, machinery, and electrical equipment.

Dimensions of 15.5 mm (width), 15 mm (length), and 18.4 mm (depth) make this terminal block suitable for dense PCB designs. It complies with flame retardant standards UL 94V-0 to ensure safety in operation environments.

This Pluggable Terminal Block supports a current rating of 15 A for robust performance. Constructed from green polyamide housing for durability and insulation. Suitable for wire sizes ranging from 0.05 mm² up to 3 mm² (30 to 12 AWG).

Designed for right angle orientation, ensuring optimal PCB layout compatibility. Operates safely at voltages up to 300 V AC. Features an M3 screw terminal for secure wire retention. Side stackable design for flexible installation and space-saving layouts.

Includes a retention latch and polarization key to prevent incorrect connections. The compact size measures 15.5 mm width, 15 mm length, and 18.4 mm depth. Manufactured to meet UL 94V-0 flame retardant standards.

This terminal block is widely used in industrial, electronic, power distribution, control systems, and manufacturing sectors for secure and reliable electrical interconnections. It is suitable for use in PCB assemblies involving automation equipment, instrumentation, and control cabinets. The Buchanan series guarantees consistent quality and performance for demanding applications.
