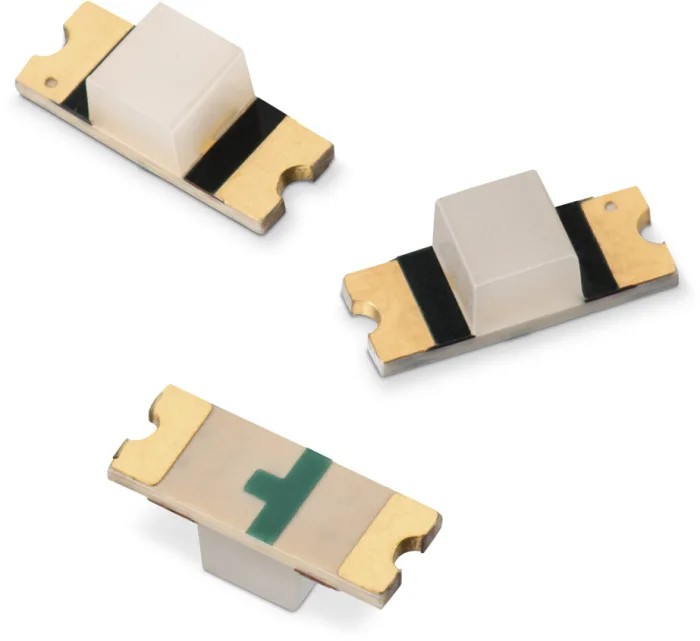

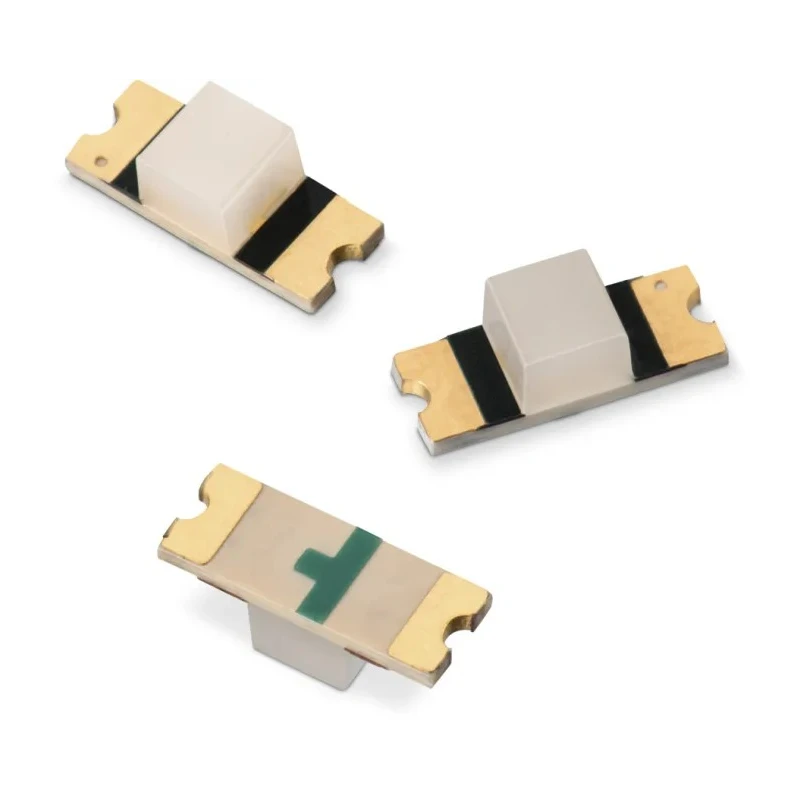

Wurth Elektronik 2.4 V Red LED 1205 Surface Mount WL-SMRD 156125RS57000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156125RS57000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRD |
| Maximum forward current | 30mA |
| Viewing angle | 160 ° |
| Package Type | 1205 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 624nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 110 mcd |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 3.2 x 1.2 x 1.1 mm |
| Lens Shape | Rectangular |
| Lens Finish | Diffused |
Key Features
- Compact 1205 package with dimensions 3.2 x 1.2 x 1.1 mm ideal for space saving applications.
- Maximum forward current is 30 mA with power dissipation of 48 mW for low power consumption.
- Diffused lens provides soft, uniform light output with 110 mcd luminosity brightness.
- Surface mount type designed for compatibility with automatic placement machines.
- Dominant wavelength at 624 nm producing vivid red light suited for indicators.
- Offers wide 160° viewing angle for broad visibility in various display and lighting uses.
- Meets RoHS standards and originates from Taiwan, Province of China.
Product Description
Wurth Elektronik 156125RS57000 is a 2.4 V red LED designed in a compact 1205 surface mount package with WL-SMRD series specifications. This LED provides a rectangular diffused lens that emits red light with a dominant wavelength of 624 nm and a wide viewing angle of 160°, making it ideal for various electronic and lighting applications requiring clear visual indicators.
It features a maximum forward current rating of 30 mA and a power dissipation limit of 48 mW, ensuring efficient energy usage with durable performance. The LED luminosity is 110 mcd, delivering bright output suitable for front panel indicators, LCD backlighting, keypad illumination, and backlighting for push buttons or switches.
The product's small size and thin form factor make it highly suitable for use in narrow space environments, enabling space saving in electronic circuit designs. Its surface mount type allows easy integration in automated manufacturing processes, improving production efficiency.
This LED complies with RoHS directives, ensuring it meets environmental safety standards. It is manufactured in Taiwan, Province of China, known for quality electronic components.
Common applications include front panel and switch backlighting, symbol illumination, general indication, and various commercial, industrial, and consumer electronics requiring reliable and visible red LED indicators.
Compact 1205 package with a diffused rectangular lens. High brightness 110 mcd luminosity red LED. Wide 160° viewing angle for enhanced visibility. Low power consumption with 30 mA forward current max. Compatible with automatic surface mount placement machines.
Suitable for front panel, keypad, and indicator lighting. RoHS compliant and environmentally safe.
For reliable red LED solutions, browse the Electronics Components and LED categories on EnvMart to discover diverse options for various industrial, commercial, and consumer applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 30 mA.
The dominant wavelength of the red light emitted is 624 nm.
The dimensions of the 1205 package are 3.2 x 1.2 x 1.1 mm.
This model has a wide viewing angle of 160°.
The power dissipation limit for this LED is 48 mW.
Yes, this LED meets RoHS standards, ensuring it complies with environmental safety regulations.
This LED is designed for surface mounting, making it compatible with automatic placement machines.
The luminosity of this LED is 110 mcd, providing bright output suitable for indicators.
It features a diffused rectangular lens that emits soft, uniform light.
This LED is packaged in tape and reel format, suitable for automated assembly.
This LED is suitable for front panel indicators, keypad illumination, and various display applications.
This LED originates from Taiwan, Province of China.
