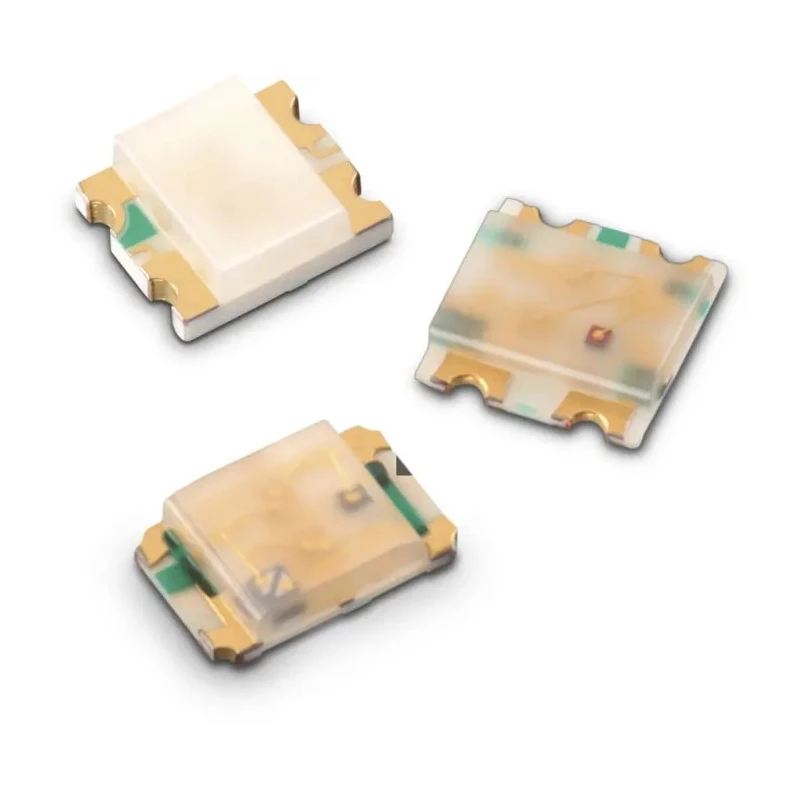

Wurth Elektronik High Efficiency 2.4 V RGB LED 1616 Surface Mount WL-SFCD 150066M153000

Wurth Elektronik 150066M153000 is a high-efficiency RGB LED in a compact 1616 surface mount package with a forward voltage of 2.4 V. Designed for electronic component applications, this LED is engineered to provide vibrant RGB colors with low power consumption and reliable performance.

This LED incorporates three light-emitting diodes to produce red, green, and blue light outputs within one package, enabling dynamic color mixing capabilities. Its compact rectangular shape measuring 1.6 x 1.6 x 0.4 mm enables integration into space-constrained designs.

The device features a wide 120° viewing angle enabled by a diffused clear lens which ensures uniform illumination across indicators or backlighting applications. It is suitable for surface mount technology (SMT) assembly with compatibility for standard tape and reel packaging and reflow soldering procedures.

With a maximum forward current rating of 40 mA and power dissipation of 48 mW, the LED operates efficiently with stable electrical characteristics. The four-pin configuration provides secure electrical contacts for device operation.

This RGB LED is widely used in consumer electronics, industrial equipment, office automation devices, and control panels as backlighting, status indicator, or icon illumination. Features three RGB LEDs combined in a single package.

Maximum forward current is 40 mA ensuring reliable operation. Compact 1616 rectangular package dimensions of 1.6 x 1.6 x 0.4 mm. Wide 120-degree viewing angle with diffused clear lens finish for uniform light distribution.

Compatible with standard surface mount reflow soldering processes. Suitable for backlighting, status indicators, and front panel applications. Operates at dominant wavelengths of 470 nm (blue), 525 nm (green), and 624 nm (red).

RoHS compliant and manufactured in Taiwan, Province of China. Contains four pins for electrical connection and a maximum power dissipation of 48 mW.

This product is ideal for use in electronic manufacturing, industrial instrumentation, embedded system indicators, and automotive display systems where precise RGB color output and compact size are required.
