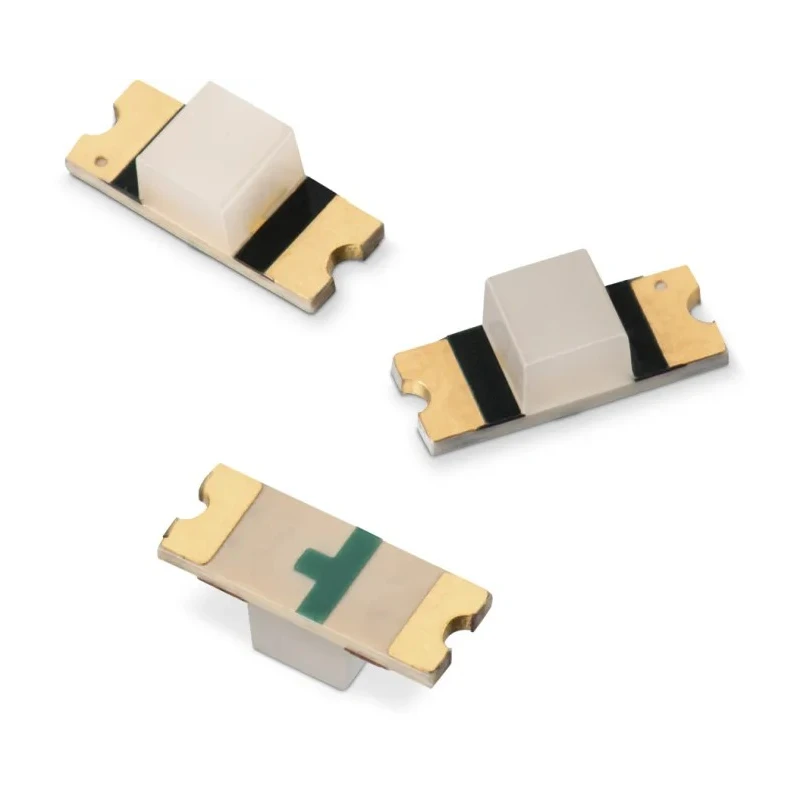

Wurth Elektronik 3.9 V Blue LED 1205 Surface Mount WL-SMRD 156125BS57000

Wurth Elektronik 156125BS57000 is a blue LED in a 1205 surface mount package operating at 3.9 V forward voltage with a maximum power dissipation of 78 mW. This component is engineered for use in electronic indicators and lighting within a variety of industrial and commercial applications. Its small size and thin body design allow space-saving integration in narrow locations typical of modern electronic displays.

The LED exhibits a rectangular lens with diffused finish to provide uniform light distribution with minimal glare, making it ideal for front panel indicators, keypad illumination, LCD backlighting, push button backlighting, and symbol or switch illumination. The viewing angle of 160 degrees ensures wide visibility, crucial for control panels and instrumentation.

This device supports automated placement with an industry-standard footprint and is supplied in tape and reel packaging for efficient manufacturing line use. RoHS compliance confirms adherence to environmental regulations, making it suitable for incorporation into sustainable product designs.

The 2-pin configuration simplifies integration, while the maximum forward current of 60 mA guarantees reliability and consistent brightness of 80 mcd luminous intensity. The lens dimensions of 3.2 x 1.2 x 1.1 mm reduce the mounting footprint on printed circuit boards, supporting high density component assemblies.

Manufactured in Taiwan, Province Of China, this LED is designed for industrial and commercial use cases including electronic displays, control panels, instrumentation, and lighting systems requiring reliable, high-quality blue LED indicators.

This blue LED features a 1205 rectangular package for surface mounting. It operates with a maximum forward current of 60 mA ensuring reliability. The device exhibits an 80 mcd luminosity with a wide 160° viewing angle. The lens is diffused and clear to provide soft, uniform light output.

Suitable for front panel indicators and keypad backlighting. Designed with an industry-standard footprint compatible with automatic placement machinery. Compact lens dimensions of 3.2 x 1.2 x 1.1 mm save valuable space on PCBs.

RoHS compliant for environmentally safe usage. Ideal for LCD backlighting and symbol/switch illumination applications. Discover more electronic components in the LED category at EnvMart for various industrial, laboratory, and commercial lighting solutions.
