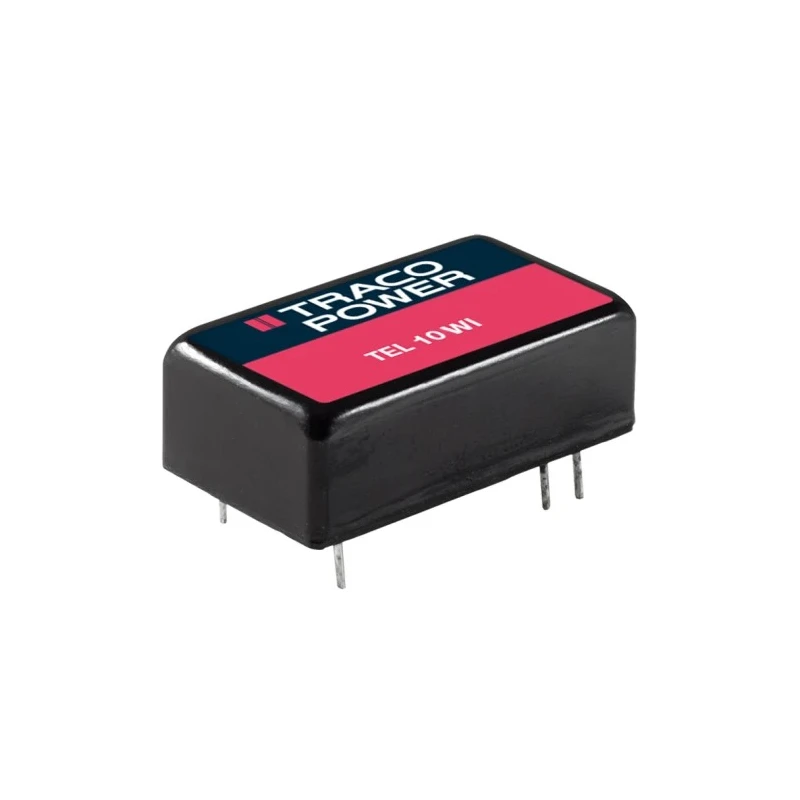

TRACOPOWER DC/DC Converter, Dual Output ±12V DC, 10W Power, PCB Mount, 9-36V Input Voltage, DIP-16 Package, TEL 10-2422WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 23.8mm |
| Model | TEL 10-2422WI |
| Depth | 8mm |
| Width | 13.7mm |
| Mount Type | PCB |
| Series | TEL 10WI |
| Maximum Operating Temperature | 88°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2540000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 416mA |
| Isolation Voltage | 1kV dc |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
Key Features
- Offers dual isolated outputs of +12V DC and -12V DC for flexible power supply.
- Supports a wide input voltage range from 9V to 36V DC ensuring application versatility.
- Compact DIP-16 PCB mount package enables easy incorporation into electronic systems.
- Operates efficiently at 87%, minimizing heat generation and energy loss.
- Designed for robust performance with operating temperature from -40°C to +88°C.
- Features 1kV DC isolation voltage for safety and noise reduction.
- Provides an MTBF of 2,540,000 hours guaranteeing long-term reliability.
- Ideal for industrial electronics, automation systems, and instrumentation requiring stable dual voltages.
Product Description
TRACOPOWER TEL 10-2422WI is an isolated DC/DC converter designed for industrial and commercial applications requiring dual isolated output voltages of ±12V DC with a maximum power rating of 10W. It accepts a wide DC input voltage range of 9 to 36 V, making it adaptable to various power supply environments.
The compact DIP-16 package supports PCB mounting, optimizing space-saving in electronic assemblies. With built-in six-sided shielding and an insulated base plate, it provides excellent protection against external interference and enhances thermal management, ensuring stable operation under demanding conditions.
The converter operates with high efficiency of 87%, reducing heat dissipation and improving energy conservation, making it suitable for applications where reliable power delivery and energy efficiency are critical.
Designed for durability, this model operates in extreme temperature ranges from -40°C to +88°C, ideal for harsh industrial environments. Electrical isolation of 1kV DC enhances safety and minimizes noise susceptibility, further ensuring robust circuit performance.
This product is well-suited for automation systems, industrial electronics, instrumentation, and IT equipment that require stable dual polarity voltages in compact form factors. It complies with recognized emission and safety standards, facilitating integration in commercial and industrial use cases.
Dual ±12V DC isolated outputs for versatile power supply. Wide input voltage acceptance from 9 to 36 V DC. High efficiency at 87% for reduced thermal loss. Compact DIP-16 PCB mount package saves space. Operating temperature range from -40°C to +88°C.
1kV DC isolation voltage for enhanced safety. MTBF of over 2.5 million hours for reliability. Built-in filters and shielding meet emissions standards. Ideal for industrial, automation, instrumentation, and IT applications.
Manufactured in Taiwan under strict quality standards, the TRACOPOWER TEL 10-2422WI delivers dependable and efficient power conversion. Browse EnvMart's extensive DC/DC Converter range for highly reliable industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TEL 10-2422WI accepts an input voltage range from 9V to 36V DC.
This model provides dual isolated outputs of +12V DC and -12V DC, with a maximum output power of 10W.
It operates with an efficiency of 87%, minimizing heat generation and energy loss.
The dimensions of the DIP-16 package are 23.8mm in length, 13.7mm in width, and 8mm in depth.
The maximum operating temperature for this converter is 88°C.
It features an isolation voltage of 1kV DC, enhancing safety and reducing noise susceptibility.
The minimum operating temperature for the TEL 10-2422WI is -40°C.
The mean time between failures (MTBF) for this model is 2,540,000 hours, indicating long-term reliability.
This model is designed for PCB mounting, optimizing space in electronic assemblies.
It is ideal for industrial electronics, automation systems, instrumentation, and IT equipment requiring stable dual voltages.
The +12V output provides a maximum output current of 416mA.
The converter includes built-in six-sided shielding and an insulated base plate, which provide excellent protection against external interference and enhance thermal management.
