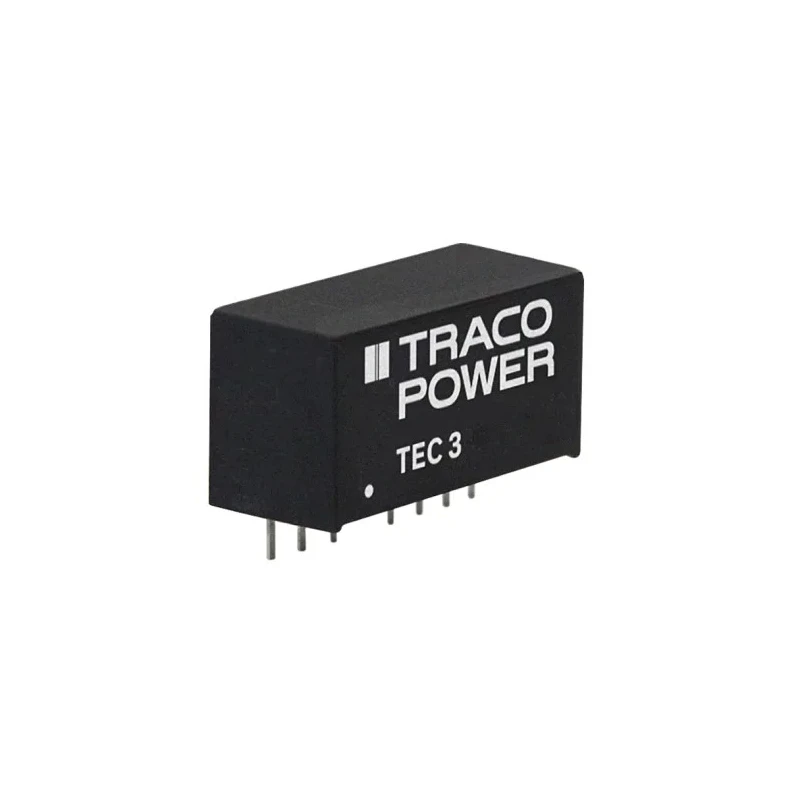

TRACOPOWER DC/DC Converter SIP-8 Package 12V dc Output 125mA 18-36V Input 3W Efficiency 84% TEC 3-2422
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 3 DC/DC Converter, 12V dc/ 125 mA |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 21.8mm |
| Model | TEC 3-2422 |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| MTBF | 5124000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V dc |
Key Features
- Equipped with a compact SIP-8 package ideal for PCB mounting.
- High efficiency of 84% ensures low thermal loss during operation.
- Operating temperature suitable for extreme environments from -40°C to +90°C.
- Provides two regulated outputs with isolation voltage of 1.6kV dc for safety and performance.
- Designed for continuous short circuit protection and no minimum load requirement.
- Features a reliable mean time between failures (MTBF) of 5,124,000 hours.
- Complies with RoHS directives and manufactured in Taiwan, Province Of China.
Product Description
TRACOPOWER TEC 3-2422 is a high-performance DC/DC Converter designed for industrial and electronic applications requiring efficient and reliable voltage conversion. It features a 12V dc output voltage at a current of 125 mA and operates within a wide input voltage range of 18V to 36V dc. The converter is housed in a compact SIP-8 package perfect for PCB mounting, providing space-saving integration in electronic assemblies.
The unit offers a maximum output power of 3 watts with an efficiency of 84%, minimizing energy loss and ensuring thermal stability. Its wide operating temperature range from -40°C to +90°C makes it suitable for harsh environments often found in industrial, laboratory, and commercial electronic equipment.
It provides dual regulated outputs with a 2:1 input ratio, an isolation voltage of 1600 V dc for enhanced safety, and continuous short circuit protection allowing for stable and safe operation without the need for a minimum load. With a robust MTBF of over 5 million hours, it promises high reliability and durability.
The product adheres to RoHS compliance standards, ensuring its environmental compatibility. Engineered and manufactured in Taiwan, the TEC 3-2422 converter offers excellent performance characteristics suitable for power supplies, instrumentation, telecommunications, and control systems in industrial and commercial settings.
Compact SIP-8 package designed for PCB mounting. Wide input voltage range from 18V to 36V dc with 2:1 input ratio. Output voltage of 12V dc at 125 mA current. Maximum output power rated at 3 watts. High efficiency of 84% reduces thermal losses.
Operating temperature range from -40°C to +90°C for demanding environments. 1.6 kV dc isolation voltage for safety and electrical separation. Continuous short circuit protection and fully regulated outputs. Mean Time Between Failures (MTBF) of 5,124,000 hours indicating reliability.
RoHS compliant manufacturing ensures environmental safety. Manufactured in Taiwan, Province Of China ensuring quality workmanship.
TRACOPOWER DC/DC Converters are essential for power management solutions across various industrial, laboratory, telecommunications, manufacturing, and commercial applications. They provide efficient voltage conversion with enhanced safety features and robust design to comply with industrial standards. Explore the complete range of DC/DC Converters at EnvMart for reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18V to 36V dc, providing a 2:1 input ratio for flexibility in various applications.
This unit provides a regulated output voltage of 12V dc at a current of 125 mA.
The maximum output power of the TEC 3-2422 is rated at 3 watts.
It has an efficiency rating of 84%, which helps minimize thermal losses during operation.
The operating temperature range for this model is from -40°C to +90°C, making it suitable for extreme environments.
This converter is housed in a compact SIP-8 package, which is ideal for PCB mounting.
It includes continuous short circuit protection and an isolation voltage of 1.6 kV dc for enhanced safety and performance.
This model provides two regulated outputs.
The MTBF for the TEC 3-2422 is 5,124,000 hours, indicating high reliability.
Yes, it complies with RoHS directives, ensuring its environmental compatibility.
The dimensions of this model are 21.8 mm in length, 11.2 mm in depth, and 9.1 mm in width.
It is suitable for industrial, laboratory, telecommunications, and commercial applications requiring efficient voltage conversion.
