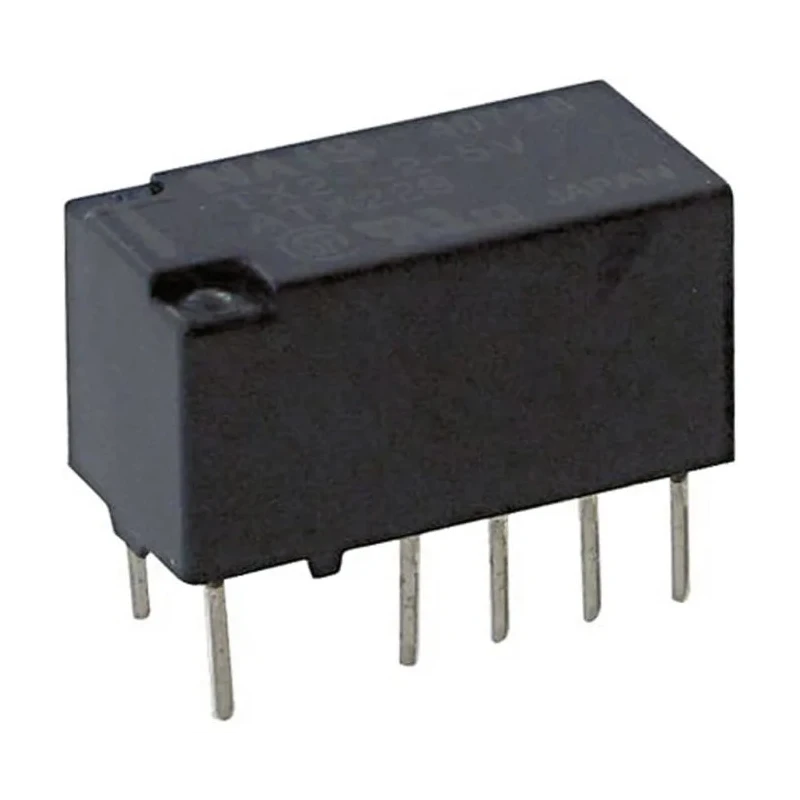

Panasonic Signal Relay PCB Mount 5V DC Coil, 2A Switching Current, DPDT Contact Configuration TX2-L2-5V
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-L2-5V |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TX2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 200mW |
| UL recognised, | CSA,:BSI |
Key Features
- This relay features a high sensitivity coil power of 200mW, enhancing efficient operation.
- It supports switching AC and DC voltages up to 220V.
- Compact dimensions with a height of 8.2mm, length of 15mm, and width of 7.4mm make it suitable for surface mounting.
- Gold plated contacts ensure reliable signal transmission and long-lasting durability.
- Operating temperature ranges from -40°C to 70°C, suited for diverse industrial environments.
- This TX2 series latching relay is recognized by UL, CSA, and BSI with RoHS compliance.
- Ideal for electronics applications in communications, measurement, security, automotive, home appliances, and medical devices.
Product Description
Panasonic TX2-L2-5V PCB Signal Relay provides a 5V dc coil voltage and supports a switching current of 2A with a double pole double throw (DPDT) contact configuration. Designed for PCB mounting, this relay maintains compact dimensions of 15mm length, 7.4mm width, and 8.2mm height, suitable for tight spaces in industrial and electronic circuit boards.
The coil power of 200mW ensures high sensitivity and efficient switching performance. Its switching capabilities extend to 220V AC and 220V DC, accommodating a variety of signal relay demands in automated systems.
Gold plated contact material enhances conductivity and reduces wear, providing reliability over extended use. The relay exhibits robust endurance, with operating temperature tolerance from -40°C to 70°C, making it well-suited for harsh industrial, automotive, and medical environments.
The TX2 series latching design offers excellent resistance to surge, vibration, and shock, with a 2000 Vac breakdown voltage. It complies with recognized international standards, including UL, CSA, and BSI, and meets RoHS environmental criteria.
Common applications include communications equipment, measurement instruments, security systems, home appliances, automotive electronics, and medical devices where precise and reliable signal relay switching is mandatory.
High sensitivity coil power of 200mW for energy-efficient operation. Gold plated contacts provide dependable electrical connections. Compact PCB terminal mounting ensures easy installation in circuit boards. Wide operating temperature range from -40°C to 70°C for industrial reliability.
Recognized safety certifications: UL, CSA, BSI, and RoHS compliant. Suitable for industrial, medical, automotive, and communication applications. Explore our Electronics & Electricals category for a comprehensive selection of high-quality Signal Relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5V DC.
It can handle a maximum switching current of 2A.
The dimensions are 15mm in length, 7.4mm in width, and 8.2mm in height.
This model features a double pole double throw (DPDT) contact configuration.
The operating temperature range is from -40°C to 70°C.
It supports switching AC and DC voltages up to 220V.
The coil power is 200mW, which enhances its sensitivity and efficiency.
This relay is designed for PCB mounting.
The contacts are made of gold plated material for enhanced conductivity and reliability.
It is recognized by UL, CSA, and BSI, and is RoHS compliant.
Common applications include communications equipment, measurement instruments, security systems, home appliances, automotive electronics, and medical devices.
The coil resistance is 125Ω.
