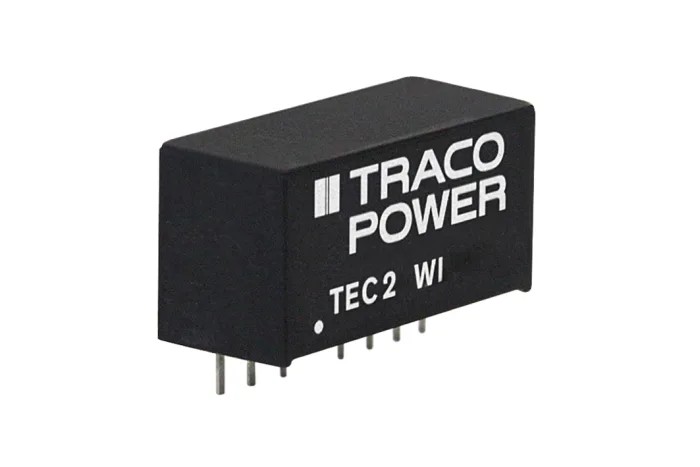

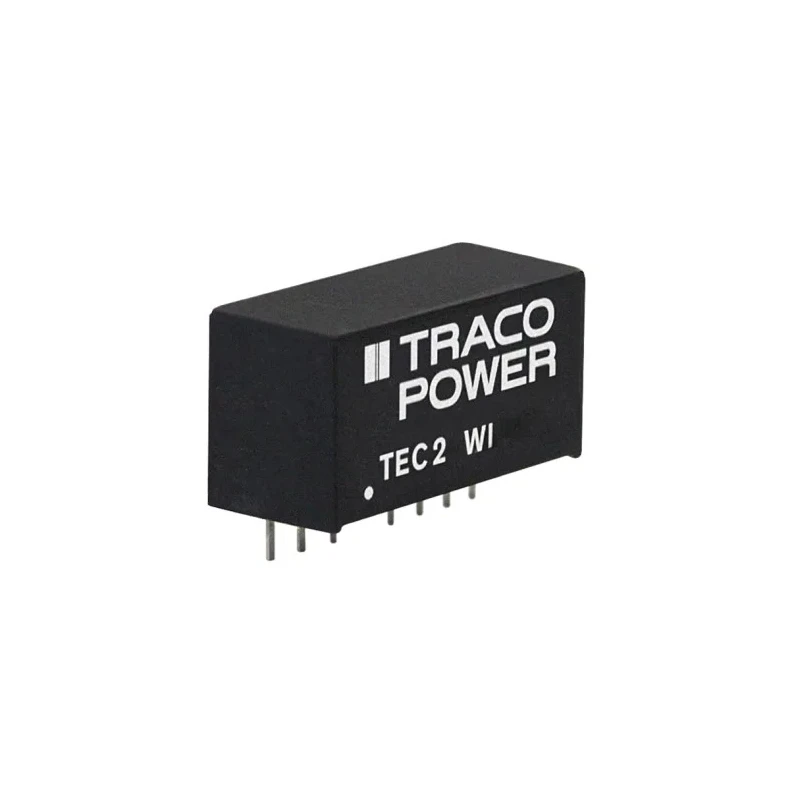

TRACOPOWER 2W SIP-8 DC/DC Converter, 5 V and -5 V Outputs, 200 mA, 9-36 V Input Voltage, 79% Efficiency TEC 2-2421WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2WI DC/DC Converter, 5V, -5 V/ 200 |
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 21.8mm |
| Model | TEC 2-2421WI |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2WI |
| Maximum Operating Temperature | 93°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6620000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- Compact SIP-8 package suitable for PCB mounting.
- High efficiency of 79% for reduced thermal losses.
- Wide operating temperature range from -40°C to +93°C.
- Supports isolation voltage up to 1.6 kV DC for electrical safety.
- Fully regulated outputs with no minimum load requirement.
- Continuous short circuit protection for durability.
- Remote On/Off control feature included.
- MTBF rated at 6,620,000 hours for high reliability.
Product Description
TRACOPOWER TEC 2-2421WI is a high-performance 2 Watt DC/DC Converter in SIP-8 package designed for durable and efficient voltage conversion with dual output voltages of 5 V and -5 V at 200 mA maximum output current. It accepts a wide input voltage range from 9 to 36 V DC, making it adaptable to diverse industrial and commercial power supply requirements.
This converter offers a high efficiency of 79%, significantly reducing thermal losses and improving energy savings. The operating temperature range from -40°C to +93°C extends its applicability in harsh environmental conditions, including industrial, laboratory, and electronic systems.
The unit features an isolation voltage of 1600 V DC, ensuring electrical isolation between input and output circuits for improved safety and signal integrity. Its compact SIP-8 package allows easy integration onto printed circuit boards.
Additional functional benefits include fully regulated outputs over 0 - 100% load without any minimum load requirement, continuous short circuit protection, and a remote On/Off capability for flexible control. Rated mean time between failures (MTBF) is 6,620,000 hours, promising high reliability in critical applications.
This DC/DC converter is RoHS compliant and manufactured in Taiwan, Province Of China, to meet global environmental standards. Compact SIP-8 package suitable for PCB mounting. High efficiency of 79% for reduced thermal losses.
Wide operating temperature range from -40°C to +93°C. Supports isolation voltage up to 1.6 kV DC for electrical safety. Fully regulated outputs with no minimum load requirement. Ultra-wide 4:1 input voltage ratio ensuring flexibility.
Continuous short circuit protection for durability. Remote On/Off control feature included. MTBF rated at 6,620,000 hours for high reliability.
This TRACOPOWER TEC 2-2421WI DC/DC Converter is suitable for industrial, laboratory, electronic, and HVAC applications requiring stable dual voltage outputs with efficient power management. Browse more DC/DC Converters on EnvMart for comprehensive power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a wide input voltage range from 9 to 36 V DC.
It provides dual output voltages of 5 V and -5 V.
The maximum output current for this unit is 200 mA.
The efficiency of the TEC 2-2421WI is rated at 79%.
It operates within a temperature range from -40°C to +93°C.
This unit supports an isolation voltage of up to 1.6 kV DC.
It is designed for PCB mounting in a compact SIP-8 package.
No, it features fully regulated outputs without any minimum load requirement.
It includes continuous short circuit protection for enhanced durability.
The MTBF is rated at 6,620,000 hours, indicating high reliability.
Yes, this DC/DC converter is RoHS compliant, meeting global environmental standards.
This converter is suitable for industrial, laboratory, electronic, and HVAC applications requiring stable dual voltage outputs.
