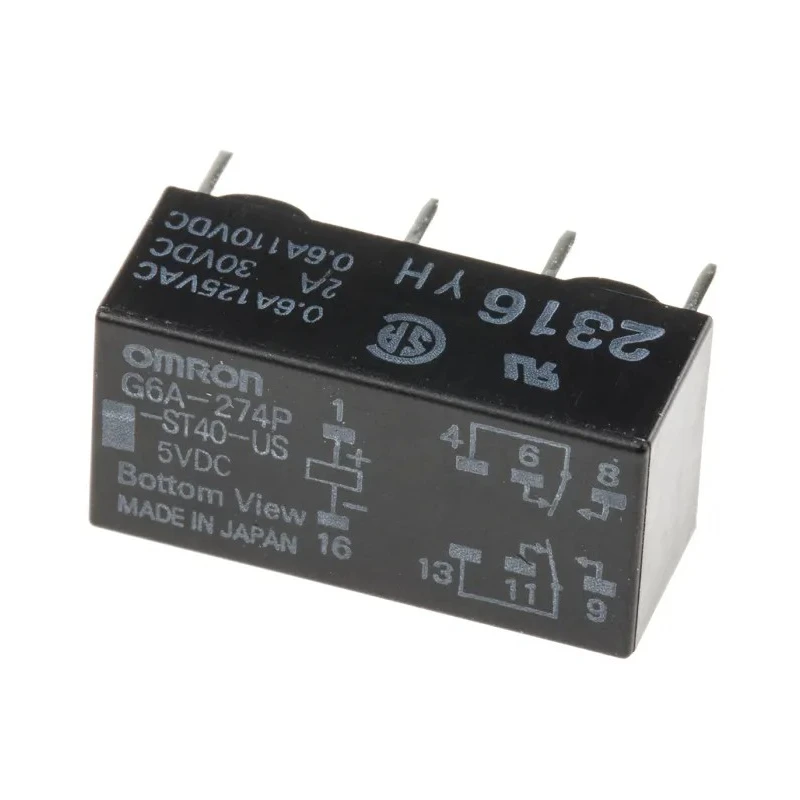

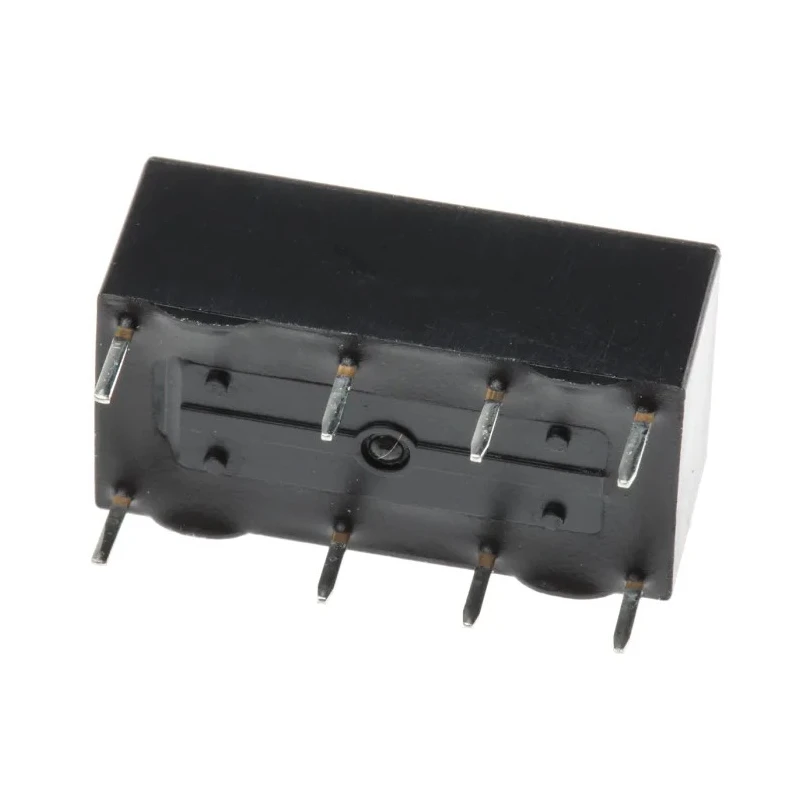

Omron PCB Signal Relay, 5V DC Coil, 2A Switching Current, DPDT Contact Configuration G6A-274P-ST40-US DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 8mm |
| Length | 20mm |
| Model | G6A-274P-ST40-US DC5 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6A |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
| Switching Power | 200mW |
| Omron PCB Mount Non-Latching Relay, 5V dc Coil, 2A Switching Current, DPDTBrand | Omron |
Key Features
- Designed for PCB mounting with compact dimensions of 20mm length, 10.1mm width, and 8mm height.
- Offers a switching AC voltage rating up to 250V and DC voltage rating up to 220V for versatile use.
- Gold plated contacts ensure excellent conductivity and durability.
- Fully sealed construction minimizes magnetic leakage and protects against environmental factors.
- Capable of operating across a wide temperature range from -40°C to 70°C.
- Coil power consumption is efficient at 400mW with coil resistance of 62.5 Ohms.
- Meets RoHS compliance ensuring environmentally safe design.
- Impulse withstand voltage rating of 1500V enhances operational reliability in telecommunications and industrial equipment.
Product Description
Omron G6A-274P-ST40-US DC5 PCB Signal Relay is engineered for compact and efficient control in electronic devices requiring reliable switching. The relay features a 5V DC coil and a double-pole double-throw (DPDT) contact configuration, capable of managing a switching current of 2A. Its PCB mount design with small dimensions (20mm x 10.1mm x 8mm) makes it suitable for densely packed circuit boards.
The relay is rated for switching AC voltage up to 250V and DC voltage up to 220V with a switching power of 200mW. Gold plated contacts ensure durability and excellent signal integrity, making it ideal for telecommunications equipment and other industrial automation applications. It is fully sealed to prevent magnetic leakage and withstands an impulse voltage of 1500V, enhancing robustness in harsh electrical environments.
The operating temperature range from -40°C to 70°C allows for use in diverse climatic conditions. Coil power is optimized at 400mW with a coil resistance of 62.5 Ohms, maintaining energy efficiency. Compliance with RoHS standards supports environmentally responsible manufacturing.
Designed for PCB mounting with compact dimensions. DPDT contact configuration offers flexible switching options. Gold plated contacts for reliable conductivity. Fully sealed design to minimize magnetic leakage. Wide operating temperature range ensures dependability.
Impulse withstand voltage of 1500V for high reliability. RoHS compliant for eco-friendly applications. Ideal for telecommunications and industrial automation.
This Omron relay series is widely used in electronics manufacturing, automation systems, and signal conditioning applications, providing trusted performance and durability. Choose Omron G6A-274P-ST40-US DC5 for efficient, compact, and reliable PCB Signal Relay solutions.
Explore more relays and electrical components in our comprehensive Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 2A.
The relay has compact dimensions of 20mm in length, 10.1mm in width, and 8mm in height.
It operates with a coil voltage of 5V DC.
The maximum switching voltage is 250V AC and 220V DC.
This relay features a double-pole double-throw (DPDT) contact configuration.
The coil power consumption is 400mW.
It operates effectively within a temperature range of -40°C to 70°C.
Yes, this relay meets RoHS compliance standards, ensuring an environmentally safe design.
The contacts are made of gold-plated material, ensuring excellent conductivity.
The coil resistance is 62.5 Ohms.
The impulse withstand voltage rating is 1500V, enhancing operational reliability.
This model is designed for PCB mounting, making it suitable for densely packed circuit boards.
