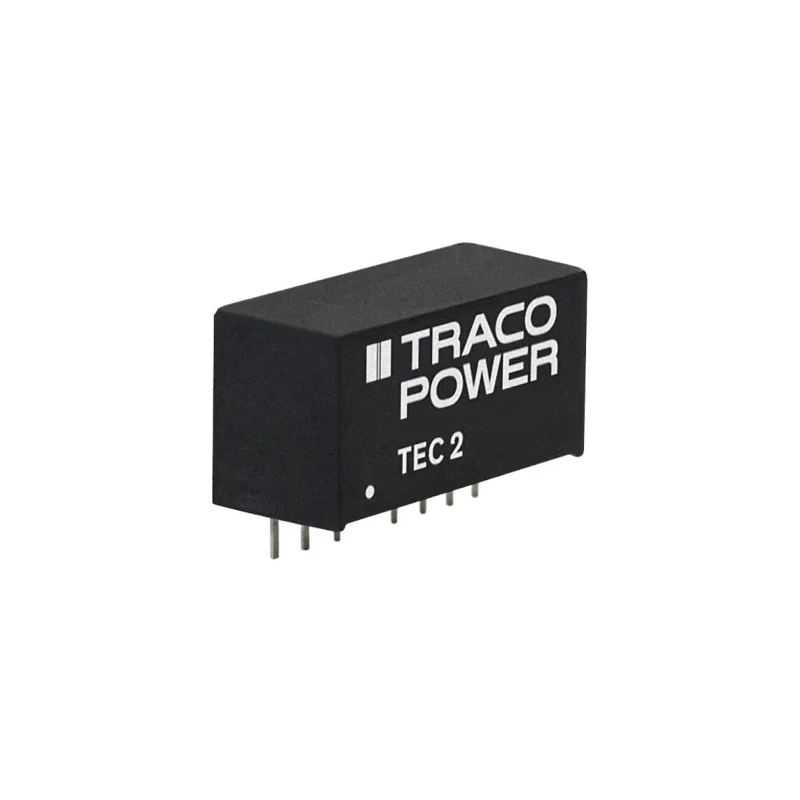

TRACOPOWER 2 Watt SIP-8 DC/DC Converter, 5 V, -5 V, 200 mA Output Current, 36 V to 75 V Input, 1.6 kV Isolation TEC 2-4821
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2 DC/DC Converter, 5V, -5 V/ 200 mA |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 21.8mm |
| Model | TEC 2-4821 |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2 |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6620000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 36V |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact SIP-8 package designed for PCB mounting.
- High isolation voltage of 1.6 kV DC for safe operation.
- Wide operating temperature range from -40°C to 95°C.
- Efficiency rated at 81% to reduce thermal losses.
- Fully regulated outputs over 0 to 100% load with no minimum load required.
- Continuous short circuit protection for reliable durability.
- Remote on/off functionality for flexible control.
- MTBF of 6,620,000 hours for enhanced reliability.
Product Description
TRACOPOWER TEC 2-4821 is a high-performance 2 Watt SIP-8 DC/DC Converter providing dual output voltages of 5 V and -5 V with an output current of 200 mA. Designed for PCB mounting, it accepts a wide input voltage range from 36 V to 75 V DC, making it suitable for various industrial and electronic applications.
The converter features a robust isolation voltage of 1.6 kV DC, ensuring electrical safety and noise immunity in complex systems. With an efficiency of 81%, it significantly reduces thermal losses, enabling operation over an extended temperature range from -40°C to +95°C, suitable for harsh environments.
TEC 2 series converters are fully regulated across the entire load range without requiring a minimum load, making them adaptable to fluctuating power demands. The built-in continuous short circuit protection and remote on/off functionality enhance both safety and control.
This product boasts a high MTBF of 6,620,000 hours, reflecting exceptional reliability for critical applications in industrial electronics, telecommunications, and power management systems.
Manufactured in Taiwan, Province Of China, the TEC 2-4821 complies with RoHS standards, emphasizing environmentally responsible production. Compact SIP-8 package for ease of integration on PCBs. 1.6 kV DC isolation voltage for safety and noise reduction.
Wide input voltage range supports flexible system designs. Efficient operation reduces heat and energy consumption. Extended operating temperature supports industrial environments. Fully regulated outputs ensure stable voltage under varying loads.
Short circuit protection enhances device safety. Remote on/off functionality for versatile control. High MTBF ensures long-term reliability. RoHS compliant and environmentally friendly manufacture.
Suitable for industrial, telecommunications, and electronic power management applications requiring compact, efficient, and reliable DC/DC conversion. Explore more DC/DC Converters and power management solutions via EnvMart for your next design or replacement project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 5 V and -5 V.
It accepts a wide input voltage range from 36 V to 75 V DC.
The maximum output current is 200 mA.
The efficiency is rated at 81%, which helps reduce thermal losses during operation.
The dimensions are 21.8 mm in length, 11.2 mm in depth, and 9.1 mm in width.
It features a robust isolation voltage of 1.6 kV DC, ensuring electrical safety and noise immunity.
The operating temperature range is from -40°C to +95°C.
This unit is designed for PCB mounting.
Yes, it includes continuous short circuit protection for enhanced safety.
It is suitable for industrial, telecommunications, and electronic power management applications.
RoHS compliance indicates that the product is manufactured in an environmentally responsible manner, adhering to restrictions on hazardous substances.
The mean time between failures (MTBF) is 6,620,000 hours, reflecting its reliability for critical applications.
