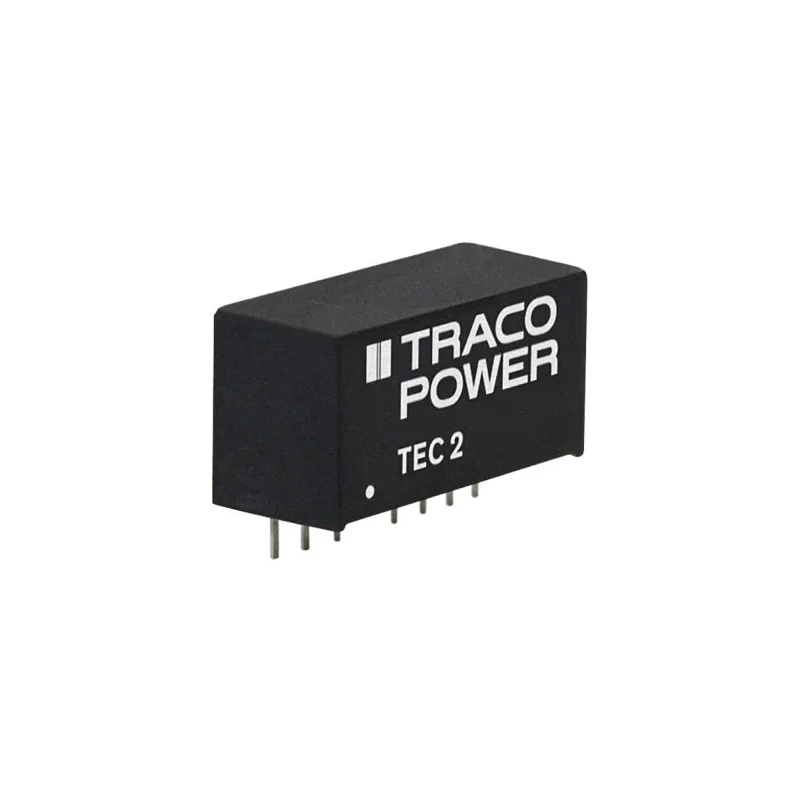

TRACOPOWER TEC 2 DC/DC Converter, 12V DC Output, 167mA, 13.2V DC Max Input, 4.5V Min Input, 2W Power, SIP TEC 2-0912
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 2 DC/DC Converter, 12V dc/ 167 mA |
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 21.8mm |
| Model | TEC 2-0912 |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2 |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6620000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 167mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact SIP-8 package ideal for PCB mounting applications.
- Fully regulated output over 0 - 100% load without minimum load requirement.
- High efficiency rated at 83% with reduced thermal losses.
- Wide operating temperature range from -40°C to +95°C for harsh environments.
- Single output of 12V DC at 167mA ensuring stable power supply.
- Isolation voltage of 1.6kV DC providing electrical separation and safety.
- Robust MTBF rating of 6,620,000 hours emphasizing reliability.
- Compliance with RoHS standards ensuring environmentally safe design.
Product Description
TRACOPOWER TEC 2-0912 DC/DC Converter is a high-performance power supply solution designed for critical electronic applications requiring stable and efficient voltage conversion. This compact SIP-8 package converter offers a fully regulated 12V DC output at 167mA, operating reliably with input voltages ranging from 4.5V minimum to 13.2V maximum. Its 2 Watt output power and 83% efficiency reduce thermal losses, expanding its usable temperature range from -40°C to +95°C, suitable for industrial and commercial environments.
The converter’s I/O isolation system achieves a test voltage of 1600 VDC, ensuring electrical isolation for sensitive circuitry. The TEC 2 series focuses on cost-effectiveness without compromising on performance or longevity, boasting an MTBF of over 6.6 million hours. Its fully regulated output maintains voltage stability across the entire load range without a minimum load requirement.
Designed for PCB mounting, the SIP package occupies minimal space with a length of 21.8mm, width of 9.1mm, and depth of 11.2mm. Protective features include continuous short circuit protection and remote On/Off control, making it ideal for embedded power applications in industrial electronics, automation, instrumentation, and communication equipment.
Compact SIP-8 housing suitable for PCB mounting. Fully regulated output voltage ensuring reliable power delivery. Wide input voltage range and 2:1 input ratio enhancing flexibility. High isolation voltage meets safety standards.
Extended operating temperature range for harsh conditions. Continuous short circuit protection enhances safety. Remote On/Off support for control system integration. RoHS compliant design ensuring environmental safety. High MTBF guarantees long service life.
Efficiency of 83% minimizes heat dissipation.
This TRACOPOWER DC/DC Converter is manufactured in Taiwan, Province Of China, ensuring high-quality standards and reliable operation for demanding industrial, laboratory, HVAC, telecommunications, manufacturing, and commercial power supply applications. The TEC 2 series is a robust choice for converting and regulating power efficiently in compact embedded systems.
Explore our wide range of DC/DC Converters and power solutions at EnvMart to find the perfect fit for your electronic power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEC 2-0912 provides a regulated output voltage of 12V DC with a maximum output current of 167mA.
This model has an efficiency rating of 83%, which helps reduce thermal losses during operation.
The input voltage range for this converter is from 4.5V minimum to 13.2V maximum.
The SIP package of this model measures 21.8mm in length, 9.1mm in width, and 11.2mm in depth.
The isolation voltage for this DC/DC converter is 1.6kV DC, providing electrical separation for safety.
It operates reliably within a temperature range of -40°C to +95°C, making it suitable for harsh environments.
This unit is designed for PCB mounting, allowing for compact integration into electronic applications.
The TEC 2-0912 includes continuous short circuit protection and remote On/Off control for enhanced safety and integration.
The MTBF for this model is rated at 6,620,000 hours, indicating a high level of reliability.
Yes, this converter is compliant with RoHS standards, ensuring it meets environmental safety requirements.
This model is suitable for embedded power applications in industrial electronics, automation, instrumentation, and communication equipment.
The input ratio for this converter is 2:1, enhancing its flexibility in various applications.
