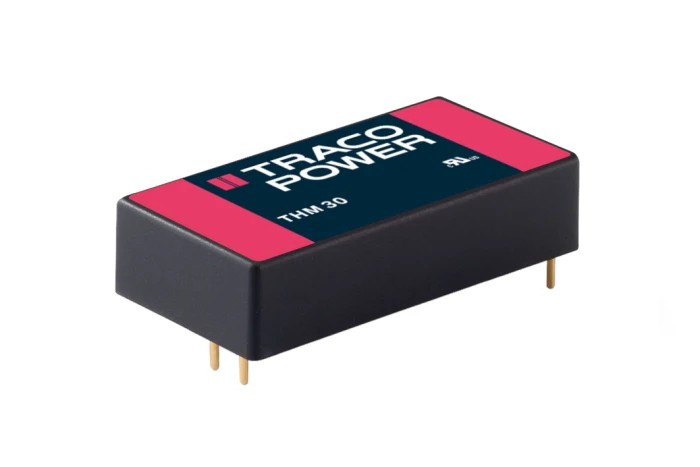

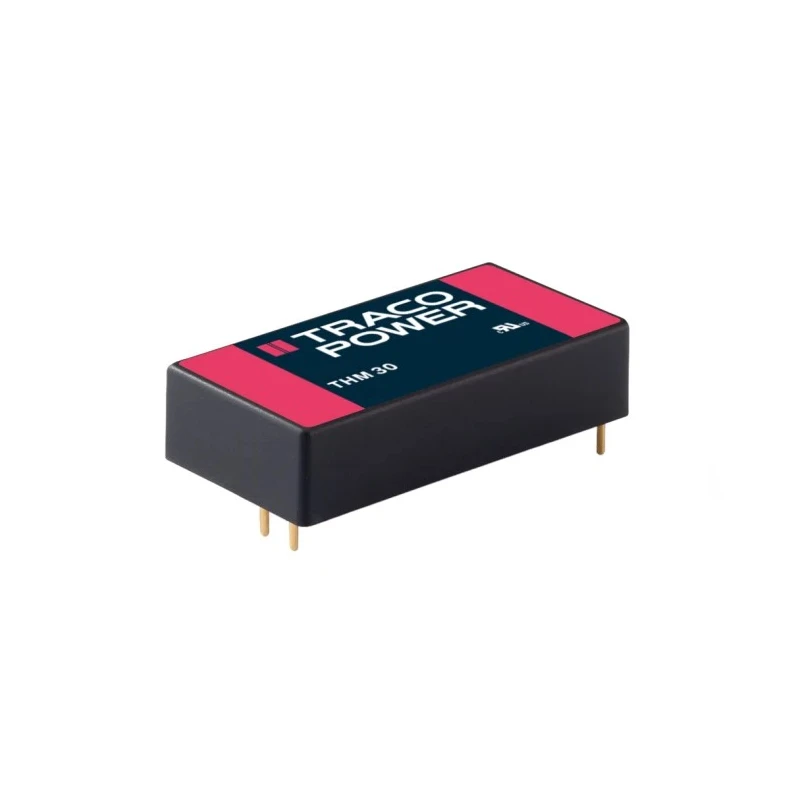

TRACOPOWER Medical Grade 30W Dual Output DC/DC Converter 5V DC 3A, 18V Input, 6-Pin PCB THM 30-1221
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 30 DC/DC Converter, 5V dc/ 3 A, 18V |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 50.8mm |
| Model | THM 30-1221 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | THM 30 |
| Maximum Operating Temperature | 80°C |
| Package Type | 2 x 1 in |
| Minimum Operating Temperature | -40°C |
| MTBF | 1140000h |
| Number of outputs | 2 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -5V dc |
| Wide 2 | 1 input voltage 30 W DC/DC converter in a 2 x 1 plastic case |
Key Features
- Provides a dual output of 5V DC at 3A and -5V DC output voltages.
- Operates with an input voltage range from 9V to 18V DC.
- Compact 2 x 1 inch PCB mount package with 6-pin configuration.
- Offers reinforced 5000VAC isolation and low leakage current less than 2.5 μA.
- Designed for extended ambient temperatures from -40°C to 80°C.
- High efficiency up to 86% for reliable energy conversion.
- MTBF rated at 1,140,000 hours ensuring long operational life.
- Ideal for medical, transportation, control, measurement, and IGBT driver applications.
Product Description
TRACOPOWER THM 30-1221 is a high-reliability medical grade DC/DC converter offering 30 W output power and dual output voltage capabilities. This 6-pin PCB mount converter operates from a wide input voltage range of 9V to 18V DC. It measures 2 x 1 inches and is enclosed in a plastic case suitable for compact PCB integration. With reinforced isolation of 5000 VACrms and a leakage current below 2.5 microamperes, it provides excellent safety and noise immunity for sensitive electronics.
The device is engineered for extended temperature operation from -40°C up to +80°C, making it suitable for demanding industrial and medical environments. It features a typical efficiency of 86%, ensuring energy-efficient power conversion critical in medical and instrumentation applications. The THM 30 series guarantees high availability with a mean time between failures (MTBF) of 1,140,000 hours. The converter supports output currents of 3A at 5V DC and a negative 5V output for balanced dual-polarity supply requirements.
This product is widely used in transportation systems, control and measurement electronics, and IGBT driver circuitry due to its reliability and compliance with strict safety standards despite no formal approvals. It operates flawlessly up to 5000 meters altitude and comes with a 5-year product warranty, reflecting TRACOPOWER’s commitment to quality. Manufacturing origin is Taiwan, Province Of China.
Provides dual outputs with 5V DC at 3A and -5V DC output voltage. Wide 9V to 18V DC input range with 2:1 input voltage ratio. Reinforced isolation rated at 5000 VAC to ensure safety and noise reduction. Extended temperature range from -40°C to +80°C.
Low leakage current less than 2.5 μA. High efficiency of 86% for effective power use. Compact PCB mount package with 6 pins. Mean time between failures of 1,140,000 hours. Ideal for medical, transportation, control, measurement, and IGBT applications.
Discover robust power solutions in the Electronics & Electricals category at EnvMart, including high-quality DC/DC Converters like the TRACOPOWER THM 30-1221.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output power of 30W.
It operates within a wide input voltage range of 9V to 18V DC.
It offers dual outputs of 5V DC at 3A and -5V DC.
The converter measures 50.8mm in length, 25.4mm in width, and 10.2mm in depth.
This unit is designed for PCB mounting with a 6-pin configuration.
It has a typical efficiency of 86%, ensuring effective power conversion.
The maximum operating temperature is rated at 80°C.
It features reinforced isolation rated at 5000 VAC.
The MTBF is rated at 1,140,000 hours, indicating long operational life.
It is engineered for extended ambient temperatures from -40°C to +80°C.
This model is ideal for medical, transportation, control, measurement, and IGBT driver applications.
