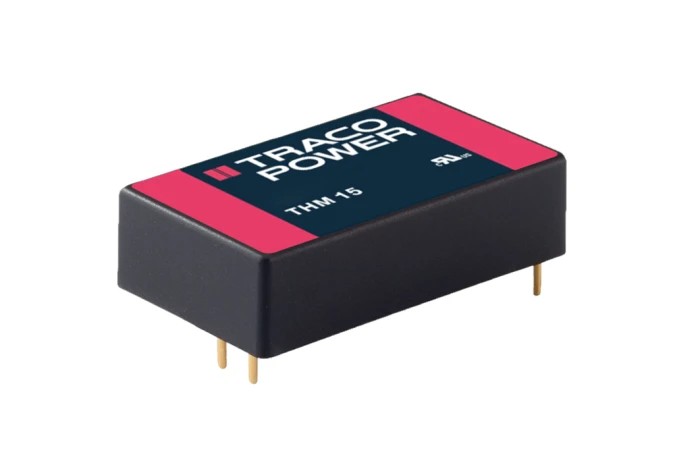

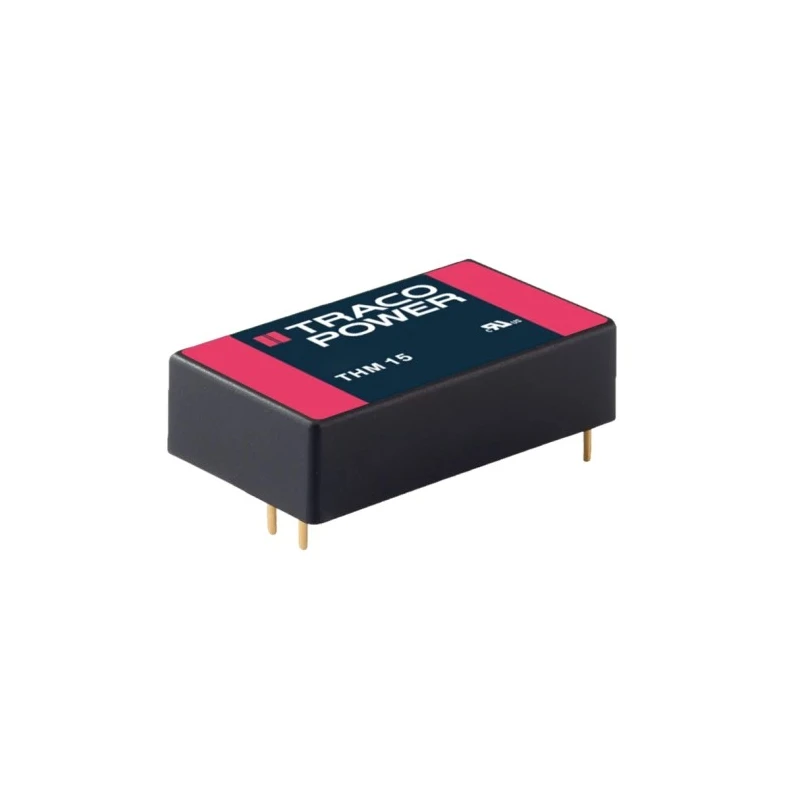

TRACOPOWER Medical Grade 15W DC/DC Converter 24V DC 625mA Input 18-36V Through Hole THM 15-2415

TRACOPOWER THM 15-2415 is a highly reliable medical grade DC/DC converter delivering 15 Watts of power, with a regulated 24V DC output at 625mA current. Its wide input voltage range from 18V to 36V DC makes it suitable for various power supply conditions. The through-hole mounting package ensures easy integration onto PCBs within compact spaces, measuring just 40.6mm length, 25.4mm width, and 10.2mm depth in a durable plastic case.

This converter features a reinforced isolation system rated at 5000 VACrms which protects sensitive circuits and reduces leakage current to less than 2.5 μA, making it ideal for medical, transportation, industrial control, and measurement applications. It operates efficiently up to 90% efficiency and performs reliably across a broad temperature range from -40°C to a maximum of 85°C, allowing use in harsh and demanding environments including altitude up to 5000 meters.

The THM 15 series converters are designed with highest grade components to ensure long-term durability and a mean time between failures (MTBF) of approximately 2,080,000 hours. This unit reliably supports precision electronics such as IGBT drivers and measurement instruments where stable power and isolation are critical.

High efficiency output performance at 90%. Strong isolation voltage of 5000 VACrms. Extended operational temperature range from -40°C to 85°C. Low leakage current less than 2.5 μA. Compact through-hole plastic package for easy PCB mounting.

Single output with 6 pins for straightforward connectivity. Suitable for medical and industrial power supply applications. Wide input range 18-36V DC with 2:1 input ratio.

Manufactured in Taiwan, Province Of China, this DC/DC Converter series is backed by a 5-year product warranty. It is particularly tailored for applications in medical instrumentation, industrial control systems, transportation and IGBT driver power supplies. For more detailed integration and design resources, technical documentation and 3D mechanical models are available.
