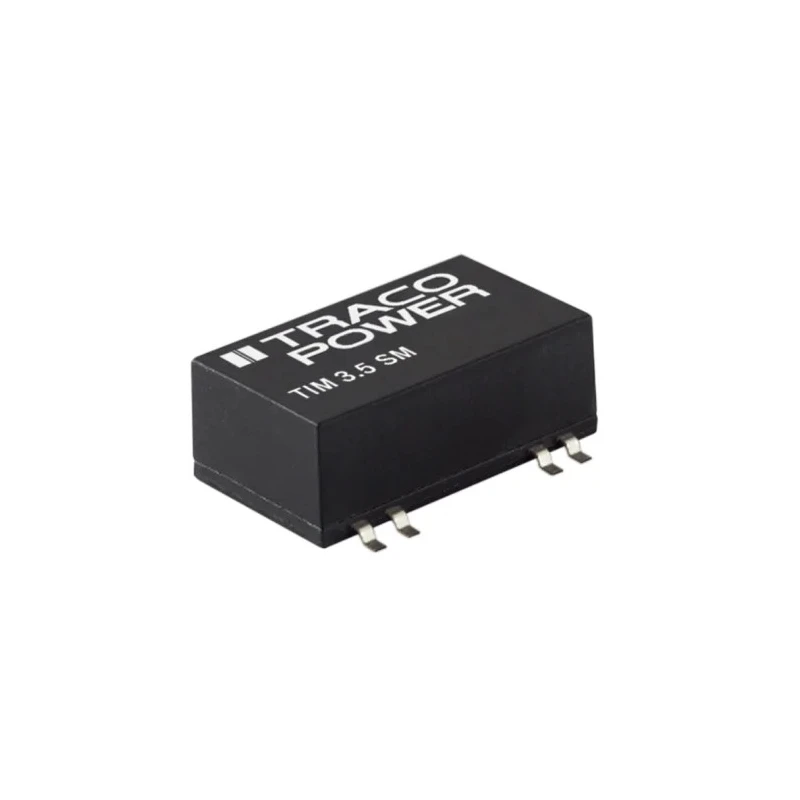

TRACOPOWER DC/DC Converter Surface Mount 12V DC Output 292mA 75V DC Max Input 3.5W TIM 3.5-4812SM
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 24.3mm |
| Model | TIM 3.5-4812SM |
| Depth | 10.5mm |
| Width | 14.4mm |
| Mount Type | Surface |
| Series | TIM 3.5 |
| Maximum Operating Temperature | 90°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 5040000h |
| Number of outputs | 1 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 16 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 292mA |
| Isolation Voltage | 5kV ac |
| Input Ratio | 1:12 |
| Input Ratio1 | 12 |
Key Features
- Compact surface mount design suitable for various electronics applications.
- Wide input voltage range from 36V to 75V DC for flexible deployment.
- High isolation voltage of 5kV AC ensures effective circuit protection.
- Operating temperature range from -40°C to 90°C allows reliable performance in harsh environments.
- High efficiency of 82% minimizes energy loss during conversion.
- Single output configuration with 16 pins supporting secure connections.
- MTBF of 5,040,000 hours promotes long operational life and reliability.
- Manufactured in Taiwan with adherence to ISO quality standards.
Product Description
TRACOPOWER TIM 3.5-4812SM is a high-quality DC/DC converter designed for surface mount applications. It supplies a regulated 12V DC output at 292mA with a maximum input voltage capability of 75V DC, delivering a maximum output power of 3.5 watts. This device incorporates a robust 5kV AC isolation rated for 250VAC working voltage, suitable for medical and industrial applications requiring reinforced input/output isolation.
With an operating temperature range from -40°C to +90°C, the TIM 3.5-4812SM is capable of functioning reliably in harsh environments. The device features high efficiency of 82% which reduces thermal dissipation to increase overall system energy savings. The compact SMD-16 package measures 24.3mm in length, 14.4mm in width, and 10.5mm in depth, allowing flexible integration with limited PCB space.
This converter series supports multiple output voltages including 5.0, 12, 15, 24, ±12, and ±15 VDC with a 2:1 input voltage ratio, allowing versatility across various power supply designs. Its input ranges span from 36V to 75V DC, making it suitable for high-voltage DC bus applications.
The TRACOPOWER TIM 3.5-4812SM complies with IEC/ES 60601-1 medical certifications and maintains quality per ISO 13485 and IPC-A-610 level 3 standards, backed by a 5-year product warranty. It exhibits low leakage current and an input filter compliant with EN55022 Class A requirements.
Compact surface mount SMD-16 package for space-constrained designs. High isolation voltage of 5kV AC for reinforced input/output separation. Wide operational temperature from -40°C to +90°C ensures durable performance. High efficiency rated at 82% for lower power losses.
Single output with stable 12V DC at 292mA output current. Certified to IEC/ES 60601-1 for medical and industrial safety standards. Low leakage current and EN55022 Class A compliant EMI filter included. Reliable with MTBF over 5 million hours and 5-year warranty.
The TRACOPOWER TIM 3.5-4812SM DC/DC Converter is ideally suited for industrial, medical, laboratory, telecommunications, and instrumentation applications requiring isolated power supply conversion. Its robust design and certifications ensure dependable operation in safety-critical systems and harsh environments.
Explore further products in the Electronics & Electricals category for related power supply and voltage conversion solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC with a current of 292mA.
The maximum input voltage for the TIM 3.5-4812SM is 75V DC.
It has an efficiency rating of 82%, which helps minimize energy loss during conversion.
The isolation voltage is rated at 5kV AC, providing effective circuit protection.
The dimensions of the TIM 3.5-4812SM are 24.3mm in length, 14.4mm in width, and 10.5mm in depth.
The operating temperature range is from -40°C to +90°C, allowing reliable performance in harsh environments.
This converter is suitable for industrial, medical, laboratory, telecommunications, and instrumentation applications requiring isolated power supply conversion.
The TIM 3.5-4812SM features a single output configuration.
The MTBF for this model is rated at 5,040,000 hours, indicating a long operational life.
It utilizes a surface mount design, making it suitable for compact PCB layouts.
This model complies with IEC/ES 60601-1 medical certifications and adheres to ISO 13485 and IPC-A-610 level 3 standards.
The input voltage range for the TIM 3.5-4812SM is from 36V to 75V DC.
