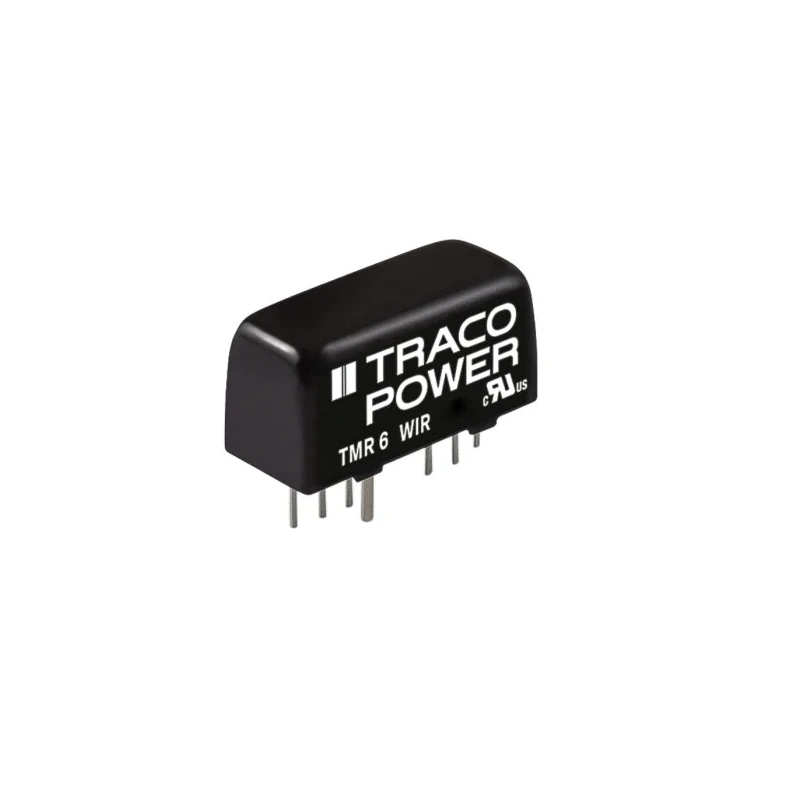

TRACOPOWER Isolated 6W DC/DC Converter SIP-8 Package 12V DC Output 500mA 9V-36V Input TMR 6-2412WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 6WI DC/DC Converter, 12V dc/ 500 mA |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 21.8mm |
| Model | TMR 6-2412WIR |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TMR 6WI |
| Maximum Operating Temperature | +100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2950000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Wide 2 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- The converter features high efficiency of up to 87% enabling stable operation.
- Compact SIP package occupies only a 21.8 x 9.1 x 11.2 mm footprint.
- Designed for through-hole mounting with six pins and 1.6kV DC isolation voltage.
- Operates reliably from -40°C up to +100°C ambient temperature.
- Features remote On/Off control and continuous short circuit protection.
- MTBF rating of 2,950,000 hours ensures long-term reliability.
- Single output DC/DC converter ideal for industrial, communication, instrumentation and power supply applications.
- Manufactured in Taiwan and fully RoHS compliant.
Product Description
TRACOPOWER TMR 6-2412WIR is a high-efficiency isolated DC/DC converter module providing a regulated output of 12V DC at 500mA from a flexible 9V to 36V DC input range. The converter is enclosed in a compact SIP-8 plastic package measuring 21.8mm length, 9.1mm width and 11.2mm depth, which optimizes board space usage while offering robust through-hole mounting with six pins.
This 6W DC/DC converter series supports a wide 4:1 input voltage ratio and delivers a maximum output power of 6 watts with an exceptional efficiency of 87%. Its excellent temperature tolerance allows operation between -40°C and +100°C ambient, making it suitable for harsh industrial environments.
The product features remote On/Off control functionality and indefinite short-circuit protection for enhanced safety and durability. With an isolation voltage rating of 1.6kV DC, it provides reliable electrical isolation for sensitive electronics. The device's Mean Time Between Failures (MTBF) is approximately 2.95 million hours, demonstrating high reliability expected in critical applications.
Applications for this DC/DC converter include communication systems, instrumentation equipment, industrial electronics, and other scenarios requiring isolated, compact, and efficient power conversion solutions. Manufactured in Taiwan, the product fully complies with RoHS environmental standards and comes with a 3-year warranty.
High-power density SIP package with small footprint of only 2.0 cm2 board area. Wide input voltage range supporting 9V to 36V DC sources. Regulated 12V DC output at 500mA current with up to 6W power output. Indefinite short-circuit protection and remote On/Off control.
Wide operating temperature from -40°C to +100°C suitable for industrial environments. 1.6kV DC electrical isolation for enhanced safety and noise immunity. Compact 21.8 x 9.1 x 11.2 mm through-hole SIP package with 6 pins.
High reliability with MTBF of 2,950,000 hours. RoHS compliant and manufactured in Taiwan.
This TRACOPOWER TMR 6-2412WIR converter is an optimal choice for engineers and designers seeking a robust, small-sized isolated DC/DC power module for various demanding electronic and industrial power conversion needs. Explore more TRACOPOWER products and other DC/DC Converters at EnvMart for diverse applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TMR 6-2412WIR provides a regulated output of 12V DC at a current of 500mA.
It operates with a flexible input voltage range of 9V to 36V DC.
This model features an efficiency of up to 87%, enabling stable operation.
The SIP package measures 21.8mm in length, 9.1mm in width, and 11.2mm in depth.
It can operate reliably in ambient temperatures ranging from -40°C to +100°C.
This unit is designed for through-hole mounting with six pins.
The converter has an isolation voltage rating of 1.6kV DC, providing reliable electrical isolation.
The TMR 6-2412WIR delivers a maximum output power of 6 watts.
Yes, it features indefinite short-circuit protection for enhanced safety.
The MTBF for this converter is approximately 2,950,000 hours, indicating high reliability.
Yes, the converter is fully RoHS compliant, ensuring it meets environmental standards.
It is suitable for applications in communication systems, instrumentation equipment, and industrial electronics.
