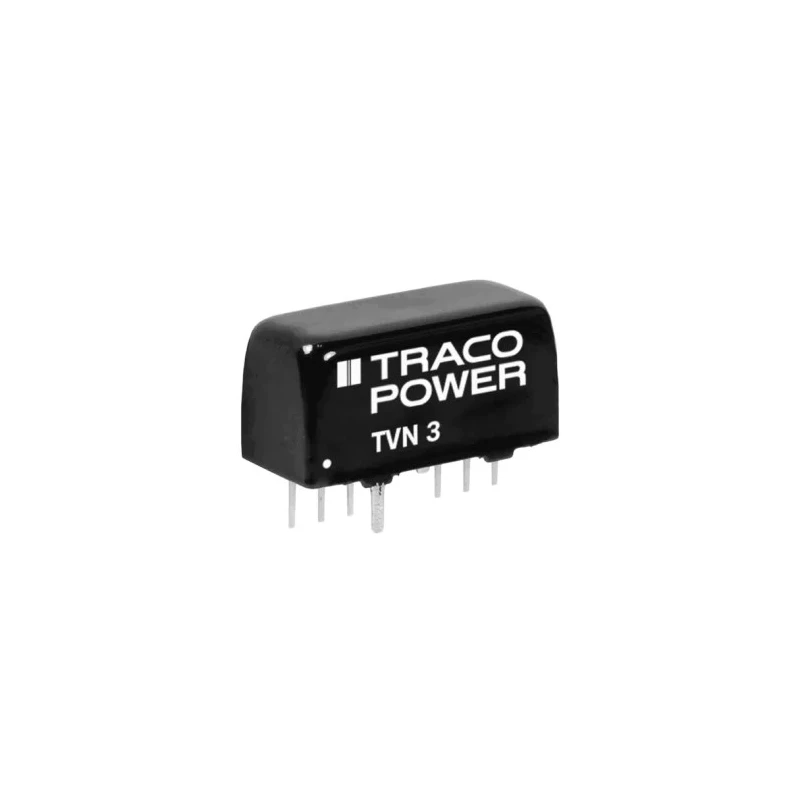

TRACOPOWER DC/DC Converter 5V DC 300mA, 13.2V DC Input, 4.5V Input, 3W Through Hole TVN 3-0921
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TVN 3 DC/DC Converter, 5V dc/ 300 mA, 1 |
| Brand | TRACOPOWER |
| Efficiency | 78% |
| Length | 21.8mm |
| Model | TVN 3-0921 |
| Depth | 11.2mm |
| Width | 9.6mm |
| Mount Type | Through Hole |
| Series | TVN 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5600000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 12 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 300mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -5V dc |
Key Features
- Compact SIP package with 12 pins and through hole mounting.
- Wide operating temperature range from -40°C to 90°C.
- Isolation voltage rated at 1.6kV DC for safety.
- Efficiency up to 78% ensuring low power loss.
- High MTBF of 5.6 million hours for reliable performance.
- Designed for industrial and medical electronic applications.
Product Description
TRACOPOWER TVN 3-0921 is a DC/DC Converter designed to provide a stable 5V DC output at 300mA current from input voltages ranging from 4.5V to 13.2V DC. The device achieves a maximum output power of 3W and is housed in a compact SIP package with 12 pins designed for through hole mounting.
It operates efficiently with up to 78% efficiency, which reduces energy loss and heat generation. The converter is capable of withstanding an isolation voltage of 1.6kV DC, ensuring electrical safety within the system. Its wide operating temperature range from -40°C up to 90°C suits harsh industrial and medical environments.
Featuring a MTBF (Mean Time Between Failures) of 5.6 million hours, the TVN 3-0921 model ensures high reliability and longevity in demanding conditions. Its compact dimensions (21.8mm length, 9.6mm width, and 11.2mm depth) make it suitable for space-constrained circuit boards.
This DC/DC converter series is especially apt for use in industrial electronics, power management systems, medical equipment, and other electronics requiring isolated voltage conversion with safety standards.
Compact SIP package design with through hole mounting. Wide 2:1 input voltage ratio for versatility. High isolation voltage of 1.6kV DC for protection. Durable operation across -40°C to +90°C temperature range. Efficient performance at 78% efficiency rating.
Long service life with MTBF of 5.6 million hours. Two output voltages supporting multiple load conditions. Package dimensions ideal for compact electronic assemblies. Explore more DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V DC with a maximum output current of 300mA.
It accepts input voltages ranging from 4.5V to 13.2V DC.
The maximum output power of this unit is 3W.
It has an efficiency rating of up to 78%, which helps reduce energy loss and heat generation.
The dimensions are 21.8mm in length, 9.6mm in width, and 11.2mm in depth.
It is rated for an isolation voltage of 1.6kV DC, ensuring electrical safety.
It operates within a wide temperature range from -40°C to 90°C.
This unit features two outputs.
It is designed for through hole mounting.
The MTBF for the TVN 3-0921 is 5.6 million hours, indicating high reliability.
It comes in a compact SIP package with 12 pins.
It is designed for use in industrial electronics, power management systems, and medical equipment that require isolated voltage conversion.
