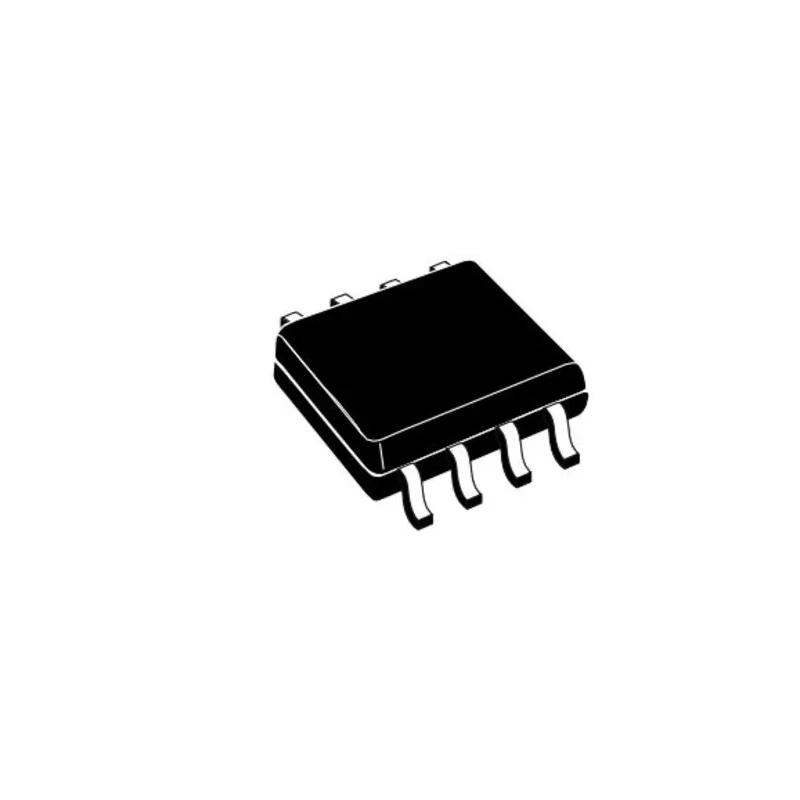

STMicroelectronics Operational Amplifier, 560 MHz Gain Bandwidth, 2 Channels, 8-Pin SO-8 Package TSB612IYDT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier, 560 MHz Gain Bandwidth, 2 Channels, 8-Pin SO-8 Package TSB612IYDT

Name: STMicroelectronics Operational Amplifier, 560 MHz Gain Bandwidth, 2 Channels, 8-Pin SO-8 Package TSB612IYDT
Brand: STMicroelectronics
SKU: 414385
Price: 3.76 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.75mm
Length	5mm
Model	TSB612IYDT
Width	4mm
Mount Type	Surface
Series	TSB612
Maximum Operating Temperature	125°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100, AEC-Q3
Maximum Supply Voltage	36V
Minimum Supply Voltage	2.7V
GBP - Gain Bandwidth Product	560MHz
Input Bias Current	15 nA
Vos - Input Offset Voltage	1 mV
Slew Rate	0.2V/μs
Input Offset Current	10 nA

Key Features

Offers dual channels for versatile amplification applications.
Wide supply voltage range from 2.7 V to 36 V ensures adaptability.
Low input bias current and offset voltage optimize accuracy.
Operating temperature range from -40°C to 125°C supports diverse environments.
Complies with RoHS standards and automotive quality AEC-Q100, AEC-Q3 standards.
Compact dimensions with 5 mm length, 4 mm width, and 1.75 mm height reduce PCB space requirements.
Rail-to-rail output and unity gain stable operation enable efficient performance.
Low power consumption under 125 μA per amplifier at 36 V supply voltage.

Product Description

STMicroelectronics TSB612IYDT is a high-performance operational amplifier designed for precision and high-frequency applications. Featuring a 560 MHz gain bandwidth product and dual channels, this device operates efficiently with a low power consumption of less than 125 μA per amplifier at 36 V supply voltage, making it suitable for space- and power-sensitive designs.

Its surface mount SO-8 package offers compact physical dimensions of 5 mm length, 4 mm width, and 1.75 mm height, which minimize PCB footprint, ideal for modern electronics manufacturing including automotive systems that require AEC-Q100 and AEC-Q3 qualification.

Key electrical features include a wide supply voltage range from 2.7 V to 36 V, low input bias current of 15 nA, input offset voltage of 1 mV, and a slew rate of 0.2 V/μs. The amplifier maintains stability at unity gain and provides rail-to-rail output, ensuring maximum output swing consistent with the supply voltages.

This operational amplifier is applicable in diverse industrial, automotive, and general electronics use cases demanding reliable, high-speed analog signal conditioning, including sensor interfaces, audio processing, and power management circuits.

Offers dual channels for versatile amplification applications. Wide supply voltage range from 2.7 V to 36 V ensures adaptability. Low input bias current and offset voltage optimize accuracy. Operating temperature range from -40°C to 125°C supports diverse environments.

Complies with RoHS standards and automotive quality AEC-Q100, AEC-Q3 standards. Compact package design saves PCB space. Rail-to-rail output enables efficient voltage utilization. Low power consumption enhances energy efficiency.

Set contains one STMicroelectronics TSB612IYDT Operational Amplifier in SO-8 package. Explore more precision amplifier solutions and components in the Electronics & Electricals category at EnvMart for your industrial and commercial applications.
