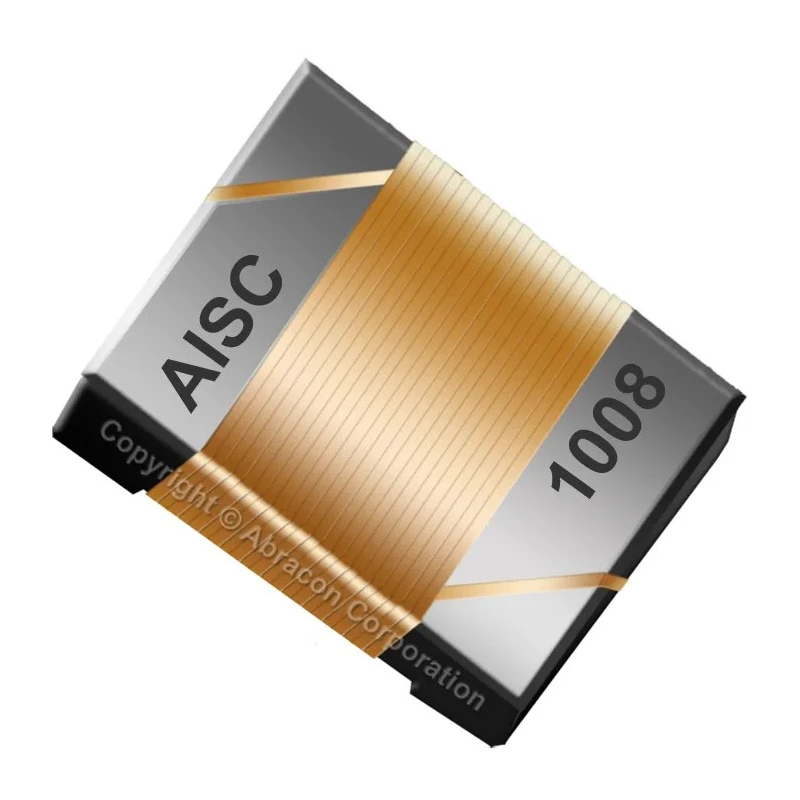

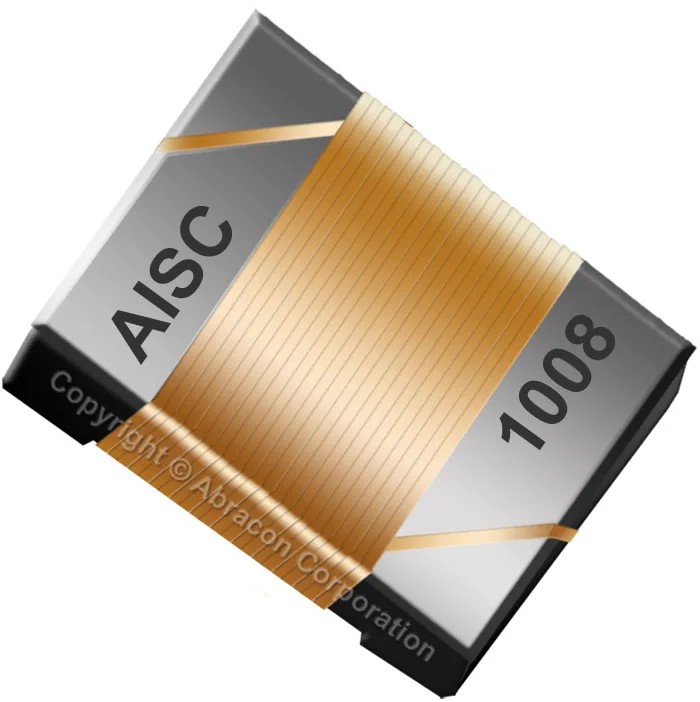

Abracon Unshielded Surface Mount Inductor with Ceramic Core 100 nH 1 A Idc Q:60 AISC-1008HQ-R10J-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.7mm |
| Length | 2.6mm |
| Model | AISC-1008HQ-R10J-T |
| Depth | 2.1mm |
| Packaging | Tape & Reel |
| Series | AISC-1008HQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 100nH |
| Standards/Approvals | QS 9000, RoHS/RoHS II, ISO 9001:2008 |
| Package/Case | Surface Mount |
| Maximum DC Current | 1A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.16Ω |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 8100MHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |
| Standards/ApprovalsQS 9000, RoHS/RoHS II, ISO 9001 | 2008 |
Key Features
- Unshielded wirewound construction provides low DC resistance of 0.16 Ω.
- Compact size with dimensions of 2.6 mm length, 1.7 mm height, and 2.1 mm depth.
- Suitable for operating temperatures from -40°C to 125°C.
- Maximum self-resonant frequency of 8100 MHz ensures excellent high-frequency performance.
- Packaged in tape and reel format for efficient automated assembly.
- Moulded design offers mechanical stability and reliability.
- Ideal for applications such as cell phones, cable modems, Bluetooth, GPS, WLAN, and broadband networks.
Product Description
Abracon AISC-1008HQ-R10J-T unshielded surface mount inductor features a ceramic core wirewound construction, providing 100 nH inductance and capable of handling a maximum DC current of 1 A. This inductor is designed for high-frequency applications with a quality factor of 60 and a maximum self-resonant frequency reaching 8.1 GHz, suitable for demanding RF and signal integrity needs.
The compact surface mount package measures 2.6 mm in length, 1.7 mm in height, and 2.1 mm in depth, making it ideal for space-constrained electronic designs. Its surface mount termination style allows for efficient automated PCB assembly, and packaging in tape and reel format supports high-volume manufacturing.
Operating temperature range from -40°C to 125°C ensures reliability in diverse environmental conditions. The low maximum DC resistance of 0.16 Ω contributes to minimal power loss and improved energy efficiency. The moulded ceramic construction provides mechanical robustness and stability.
This inductor conforms to QS 9000, RoHS, RoHS II, and ISO 9001:2008 standards, reflecting quality and environmental compliance. Applications include mobile phones, cable modems, ADSL, Bluetooth devices, WLAN, GPS modules, broadband networking equipment, video cameras, and LCD televisions.
Unshielded wirewound ceramic core design. Compact dimensions: 2.6 mm × 1.7 mm × 2.1 mm. Maximum DC current: 1 A. Maximum DC resistance: 0.16 Ω. Operating temperature range -40°C to 125°C. Maximum self-resonant frequency: 8100 MHz.
Packaging: Tape & Reel. High quality factor of 60. Compliance with QS 9000, RoHS, RoHS II, ISO 9001:2008.
This Abracon Surface Mount Inductor provides high current capacity, low resistance, and excellent frequency response necessary for modern electronic components across industrial, telecommunications, consumer electronics, and commercial applications. Browse EnvMart's Electronics & Electricals category for related precision passive components and surface mount solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 100 nH.
This model can handle a maximum DC current of 1 A.
The inductor measures 2.6 mm in length, 1.7 mm in height, and 2.1 mm in depth.
The maximum self-resonant frequency is 8100 MHz.
The operating temperature range is from -40°C to 125°C.
The maximum DC resistance is 0.16 Ω.
It features a wirewound construction with a ceramic core.
It is packaged in tape and reel format for efficient automated assembly.
This inductor has a minimum quality factor of 60.
It complies with QS 9000, RoHS, RoHS II, and ISO 9001:2008 standards.
This inductor is suitable for applications such as mobile phones, cable modems, Bluetooth devices, WLAN, GPS modules, and broadband networking equipment.
This inductor has a pin count of 2.
