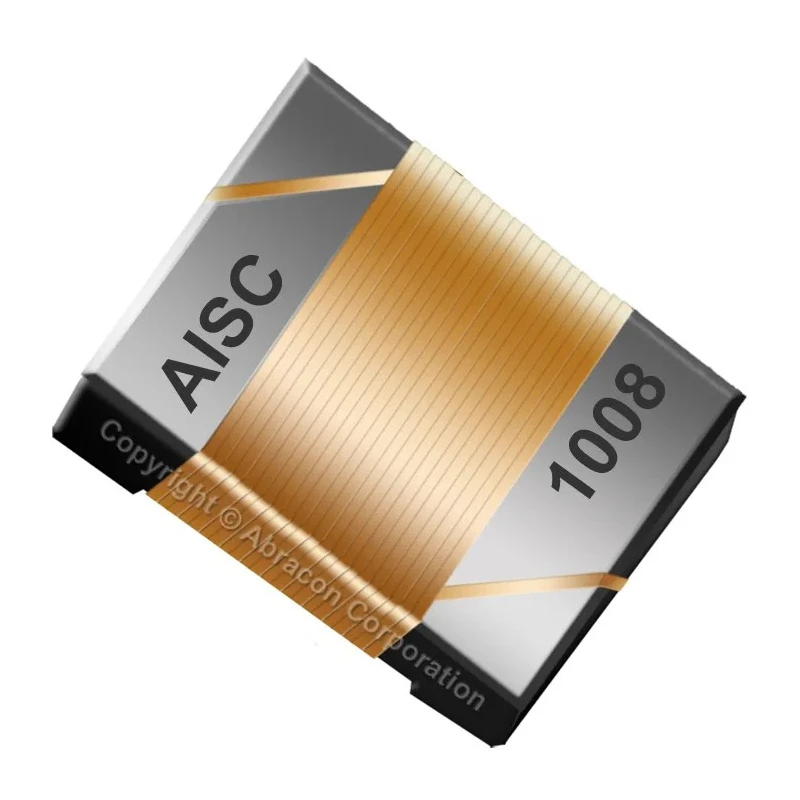

Abracon Unshielded Surface Mount Inductor with Ceramic Core 100 nH 1 A Idc Q:60 AISC-1008HQ-R10J-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.7mm |
| Length | 2.6mm |
| Model | AISC-1008HQ-R10J-T |
| Depth | 2.1mm |
| Packaging | Tape & Reel |
| Series | AISC-1008HQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 100nH |
| Standards/Approvals | QS 9000, RoHS/RoHS II, ISO 9001:2008 |
| Package/Case | Surface Mount |
| Maximum DC Current | 1A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.16Ω |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 8100MHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |
| Standards/ApprovalsQS 9000, RoHS/RoHS II, ISO 9001 | 2008 |
Key Features
- Unshielded wirewound construction with ceramic core ensures high reliability.
- Compact surface mount package measuring 2.6mm in length and 1.7mm in height.
- Wide operating temperature range from -40°C to 125°C for robust performance.
- Low maximum DC resistance of 0.16Ω minimizes power loss.
- High maximum self resonant frequency of 8100MHz suitable for high-frequency applications.
- Supplied in tape & reel packaging for automated assembly processes.
Product Description
The Abracon AISC-1008HQ-R10J-T is an unshielded surface mount inductor optimized for high-frequency electronic applications.
Featuring a ceramic core and wirewound construction, this 100 nH inductor offers excellent current handling capability up to 1 A DC with a quality factor of 60, making it ideal for use in cell phones, cable modems, Bluetooth devices, WLAN, GPS, broadband networks, and video cameras.
Its compact dimensions of 2.6mm length, 2.1mm depth, and 1.7mm height facilitate space-saving PCB designs while maintaining low DC resistance of 0.16Ω to ensure efficient operation.
This component operates reliably in temperature ranges from -40°C to 125°C and features a high self-resonant frequency up to 8.1 GHz, enabling use in advanced RF circuits. The AISC-1008HQ-R10J-T is molded for robust protection and supplied in tape and reel packaging compatible with automatic surface mount assembly lines.
Unshielded wirewound ceramic core inductor construction. Compact surface mount size with 2.6mm length and 1.7mm height. Rated for maximum DC current of 1 A and maximum DC resistance of 0.16 Ω. Wide operating temperature range from -40°C to 125°C.
High quality factor minimum of 60 and self-resonant frequency up to 8100 MHz. Compliant with QS 9000, RoHS, and ISO 9001:2008 certifications. Tape & reel packaging suitable for automated production.
This surface mount inductor is suited for telecommunications, consumer electronics, network equipment, and other industrial electronic uses requiring high frequency and current performance within compact footprints.
EnvMart offers this Abracon AISC-1008HQ-R10J-T Surface Mount Inductor with assured quality and comprehensive product information for engineering and manufacturing professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100 nH.
It is rated for a maximum DC current of 1 A.
This unit measures 2.6 mm in length, 2.1 mm in depth, and 1.7 mm in height.
The maximum self-resonant frequency is 8100 MHz.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum DC resistance is 0.16 Ω, which helps minimize power loss.
It has a minimum quality factor of 60.
It is supplied in tape and reel packaging, suitable for automated assembly processes.
This inductor features a wirewound construction with a ceramic core.
It complies with QS 9000, RoHS, and ISO 9001:2008 certifications.
It is suitable for telecommunications, consumer electronics, network equipment, and other industrial electronic uses requiring high frequency and current performance.
The AISC-1008HQ-R10J-T has a pin count of 2.
