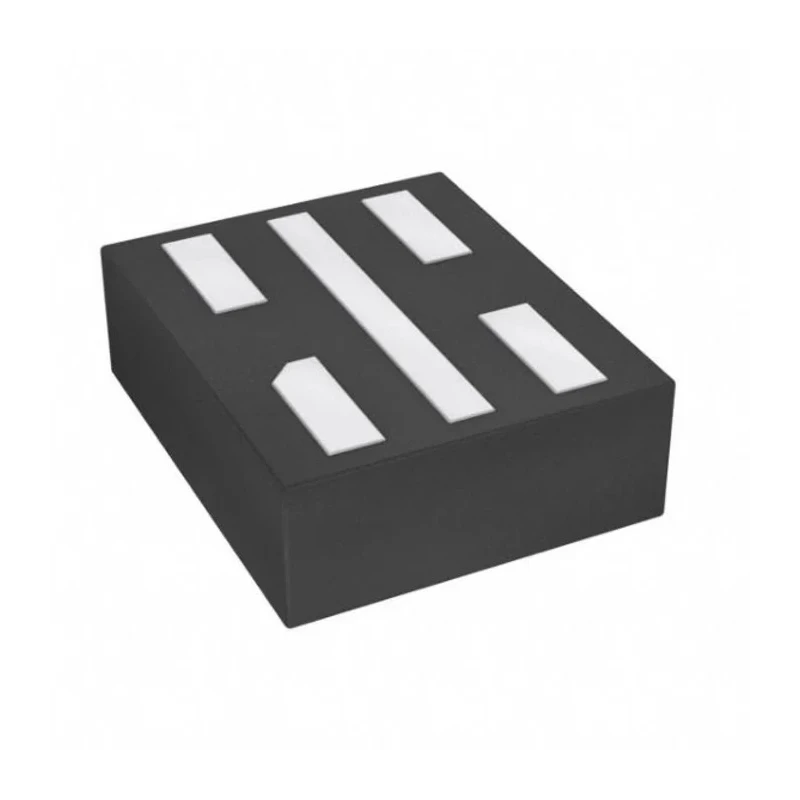

STMicroelectronics 128 kB Serial EEPROM, 450 ns 5-Pin UFDFPN Serial-I2C M24128-BFMH6TG

STMicroelectronics M24128-BFMH6TG is a high-performance 128 kB Serial EEPROM, featuring a fast 450 ns random access time and a 5-pin UFDFPN surface mount package. This Serial-I2C EEPROM operates up to 1 MHz clock frequency and is organized as 16k x 8 bits memory architecture, providing 128 kilobits (16 kilobytes) of storage capacity.

It supports a single supply voltage range from 1.7 V to 5.5 V and operates reliably over a wide temperature range from -40°C to +85°C, making it suitable for demanding automotive, industrial, and consumer electronics applications.

The device offers byte and page write operations within 5 ms and features write protection capabilities to safeguard the entire memory array. Enhanced electrostatic discharge (ESD) and latch-up protections contribute to device robustness.

With a long data retention period of around 200 years and endurance beyond 4 million write cycles, the M24128-BFMH6TG EEPROM provides dependable non-volatile memory storage for embedded systems requiring frequent updates and reliable data integrity.

Supports multiple I²C bus modes including 1 MHz, 400 kHz, and 100 kHz. The UFDFPN package enables compact surface mounting, ideal for space-limited designs. Compliant with automotive AEC-Q100 standards for temperature and quality requirements.

Suitable for applications in automotive electronics, industrial controllers, communications, and consumer devices. Incorporates an additional identification page for secure storage of sensitive application parameters (specific to M24128-D variants).

This product is an ideal choice for engineers seeking a reliable, small footprint serial EEPROM with excellent endurance and automotive-grade specifications. Browse the full range of EEPROMs and semiconductor products at EnvMart to find compatible components for your system design requirements.
