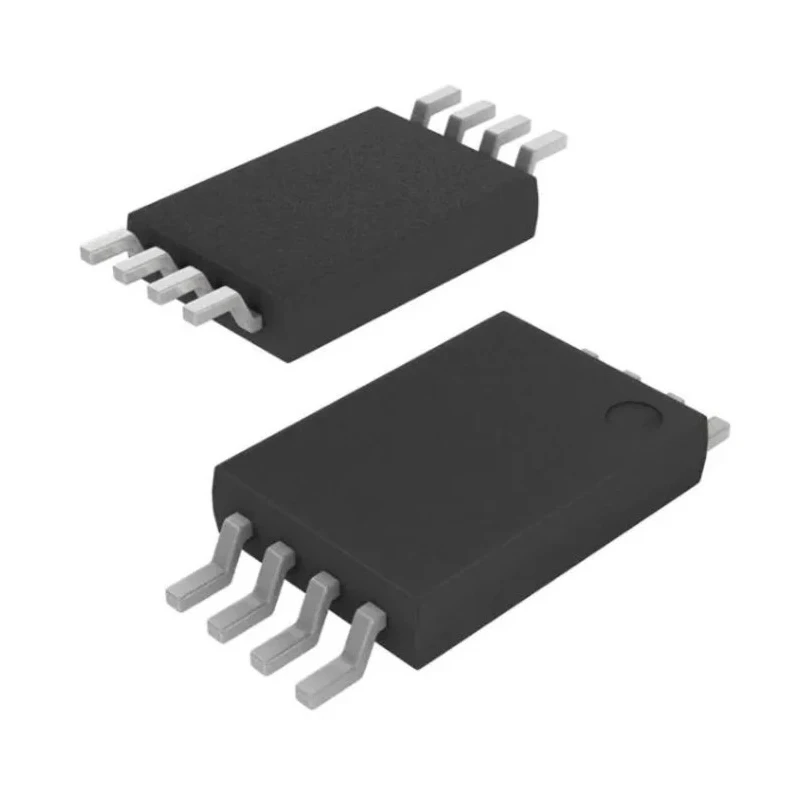

STMicroelectronics Operational Amplifier, Dual Channel, 1.1 MHz Gain Bandwidth, 8-Pin TSSOP-8, 3-30 V Supply, LM2904YPT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier, Dual Channel, 1.1 MHz Gain Bandwidth, 8-Pin TSSOP-8, 3-30 V Supply, LM2904YPT

Name: STMicroelectronics Operational Amplifier, Dual Channel, 1.1 MHz Gain Bandwidth, 8-Pin TSSOP-8, 3-30 V Supply, LM2904YPT
Brand: STMicroelectronics
SKU: 414184
Price: 0.34 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.2mm
Length	3.1mm
Model	LM2904YPT
Width	4.5mm
Mount Type	Surface
Series	LM2904
Output Current	40mA
Maximum Operating Temperature	125°C
Package Type	TSSOP-8
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q3, AEC-Q100
Maximum Supply Voltage	30V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	1.1MHz
Input Bias Current	150 nA
Vos - Input Offset Voltage	7 mV
Slew Rate	0.6V/μs
Input Offset Current	30 nA

Key Features

Dual operational amplifier with high DC voltage gain of 100 dB.
Wide bandwidth unity gain of 1.1 MHz with temperature compensation.
Operates from 3 V minimum up to 30 V maximum supply voltage.
Low input bias current of 150 nA and low input offset current of 30 nA.
Surface mount TSSOP-8 package with 8 pins and compact dimensions.
Input common-mode voltage range includes the negative rail.
Automotive standard compliant with AEC-Q3 and AEC-Q100 certifications.
Maximum operating temperature of 125°C ensures high reliability in harsh environments.

Product Description

STMicroelectronics LM2904YPT is a highly reliable dual operational amplifier designed for automotive and industrial control applications. This device is packaged in an 8-pin TSSOP-8 surface mount format, featuring a gain bandwidth product of 1.1 MHz, making it well-suited for precision amplification needs.

The amplifier incorporates two independent high-gain operational amplifiers with internally implemented frequency compensation to ensure stable performance over a wide frequency range. It operates from a minimum supply voltage of 3 V up to a maximum of 30 V, supporting a broad range of system voltages.

Exceptional electrical characteristics include a large DC voltage gain of 100 dB, a low input bias current of 150 nA, and a minimal input offset current of 30 nA. The input common-mode voltage range extends to the negative rail, allowing the amplifier to respond effectively to input signals down to the ground level. The output current rating of 40 mA provides adequate drive capability for many industrial interfacing tasks.

Further manufactured to meet automotive standards AEC-Q3 and AEC-Q100, the LM2904YPT ensures rugged performance in temperature extremes from -40°C up to 125°C. Its compact dimensions of 3.1 mm length, 4.5 mm width, and 1.2 mm height, combined with the surface mount TSSOP-8 package, facilitate space-saving PCB layouts.

This operational amplifier is ideal for applications requiring robust analog signal conditioning such as sensor interfacing, automotive control modules, industrial instrumentation, and general purpose amplification tasks in harsh environments.

Dual independent Operational Amplifiers with internal frequency compensation. High DC voltage gain of 100 dB for precise amplification. Wide bandwidth of 1.1 MHz ensures fast response times. Low supply current per amplifier reduces power consumption.

Input offset voltage of 7 mV max enhances signal accuracy. Robust automotive-grade qualification guarantees reliability. Surface mount TSSOP-8 package with compact dimensions. Explore the range of STMicroelectronics amplifiers on EnvMart for high quality and trusted industrial electronics components.
