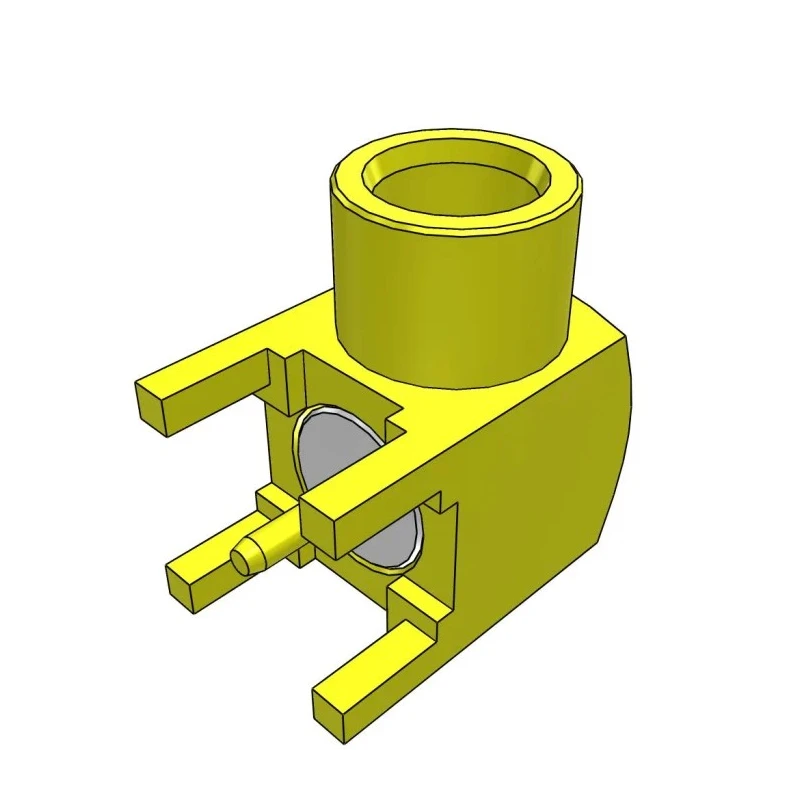

Samtec MCX7 Series PCB Mount Female MCX Coaxial Connector 75 Ω Right Angle Body Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Right Angle |
| Model | MCX7 |
| Mount Type | PCB |
| Operating Frequency | 0, 4.5, 6GHz |
| Series | MCX7 |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Cable Type | RG179 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Operates across a wide frequency range of 0 to 6 GHz.
- Constructed with gold-plated contacts and body for reliable conductivity and corrosion resistance.
- PCB mount type with through-hole termination ensures secure mechanical connection.
- Supports operating temperatures from -65°C to 125°C.
- Designed for use with RG179 type cable.
- Normal polarity female connector compliant with RoHS standards.
- Maximum working voltage of 170 Vrms suitable for various electronic uses.
Product Description
Samtec MCX7-J-P-HN-RA-TH1 is a high-performance MCX series coaxial connector designed for PCB mounting with female gender and a right-angle body featuring through-hole termination. This connector delivers a stable 75 Ω impedance and supports operation within a frequency range from 0 to 6 GHz, making it ideal for high-frequency electronic signal transmission applications.
The connector is manufactured with gold plating on both the contacts and body to ensure excellent corrosion resistance and superior electrical conductivity. Suitable for use with RG179 cables, it supports normal polarity and complies fully with RoHS environmental standards.
Engineered for robust industrial use, it operates reliably within a broad temperature range from -65°C to 125°C. The maximum working voltage rating of 170 Vrms allows safe operation in demanding electrical environments. Its right-angle orientation and through-hole termination offer easy PCB integration with secure mechanical fastening.
Wide operating frequency range of 0 to 6 GHz. Gold-plated contact and body plating for durability and performance. PCB mount with through-hole termination for secure installation. Operating temperature range between -65°C and 125°C.
Compatible with RG179 cable type. RoHS compliant with lead-free solderable finish. Maximum working voltage of 170 Vrms.
This connector finds extensive application in industrial, laboratory, telecommunications, and electronics manufacturing environments where reliable, precise RF signals are essential.
Explore Samtec products on EnvMart for high-quality connectors designed for demanding signal integrity and rugged usage.
Explore more products in our Electronic Components, Power & Connectors category.
