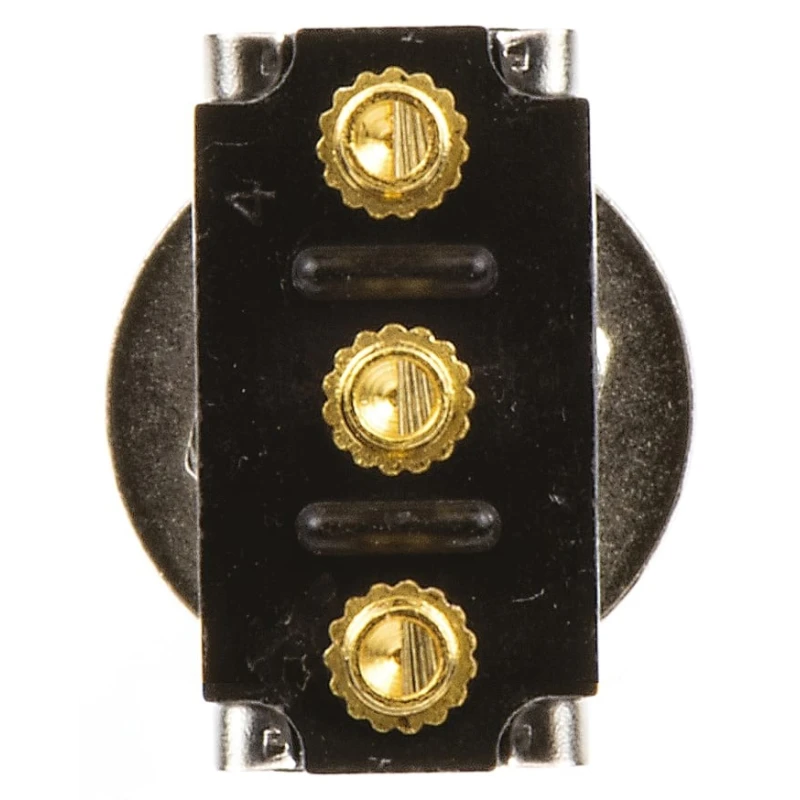

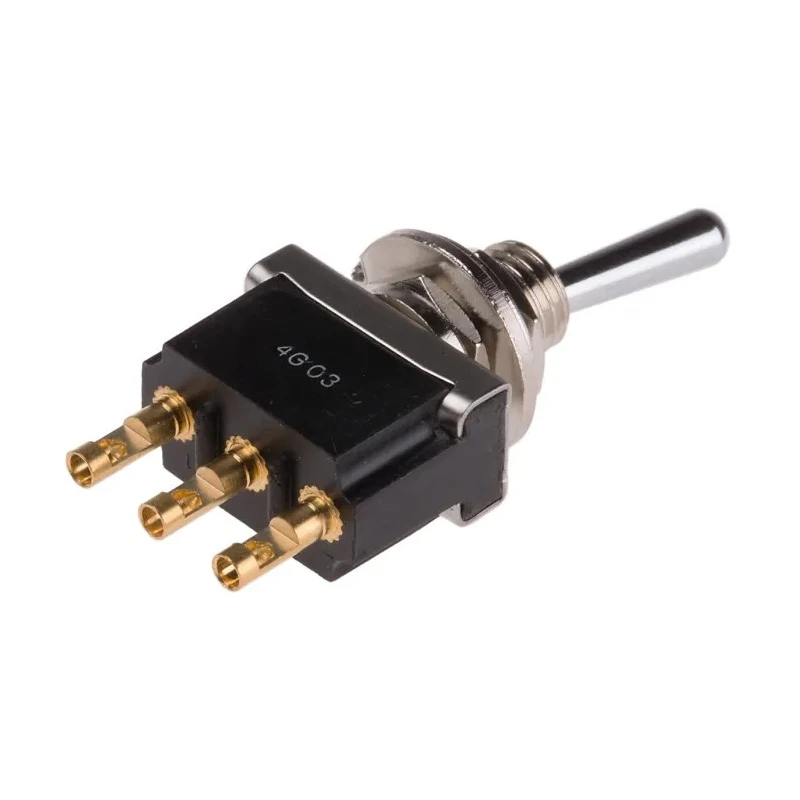

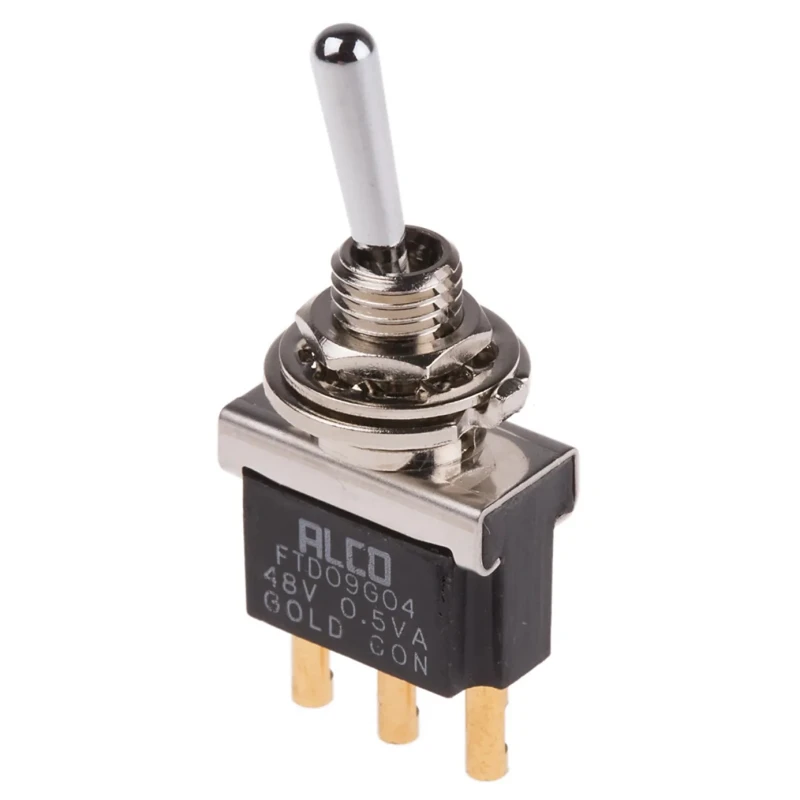

TE Connectivity Toggle Switch Panel Mount On-On SPDT Solder Terminal 12 V dc 250 V ac FTD09G04

TE Connectivity FTD09G04 toggle switch is a robust panel mount switch offering reliable On-On SPDT switching operation. This switch is rated for control voltages of 12 V dc and 250 V ac, making it suitable for a wide range of electrical and electronic applications.

The switch features a chrome plated brass actuator lever with a length of 16.5 mm, enabling efficient manual operation. It incorporates solder bucket terminals which are ideal for secure solder connections on printed circuit boards or wiring assemblies.

Designed for industrial and commercial environments, it boasts IP67 and IP68 ingress protection ratings that ensure functionality even under water immersion or dusty conditions. It has a panel cutout size of 6.2 mm and a glass-filled polyester enclosure complying with UL 94V-0 flame retardant standards.

The toggle switch has a slow make-and-break contact mechanism providing smooth switching with reduced arcing. It supports a maximum switch contact current of 14mA and achieves an impressive mechanical life expectancy of 100,000 operations, ensuring long-term reliability.

Operating temperature ranges from -20°C to 80°C, suitable for many indoor and outdoor applications. Silver contacts are standard on this unit, providing excellent conductivity and corrosion resistance.

This toggle switch features a slow make-and-break action ensuring reliable performance. The actuator is a chrome plated brass lever measuring 16.5 mm in length. It has solder bucket terminals compatible with PCB assembly.

The switch is waterproof with IP67 and IP68 ratings suitable for harsh environments. It supports a switch contact current of 14mA, ideal for low-power switching applications. The panel cutout size required for mounting is 6.2 mm in diameter.

This model offers a mechanical life of up to 100,000 operations. The switch housing is a glass-filled polyester case rated UL 94V-0 for flame retardance. Operating temperature range spans from -20°C to 80°C ensuring durability in varied conditions.

Silver contacts are used for reliable conductivity across most versions.

This Toggle Switch is ideal for use in industrial automation, electrical control panels, manufacturing machinery, and other commercial electronic assemblies requiring durable and high-integrity panel-mounted switching solutions.
