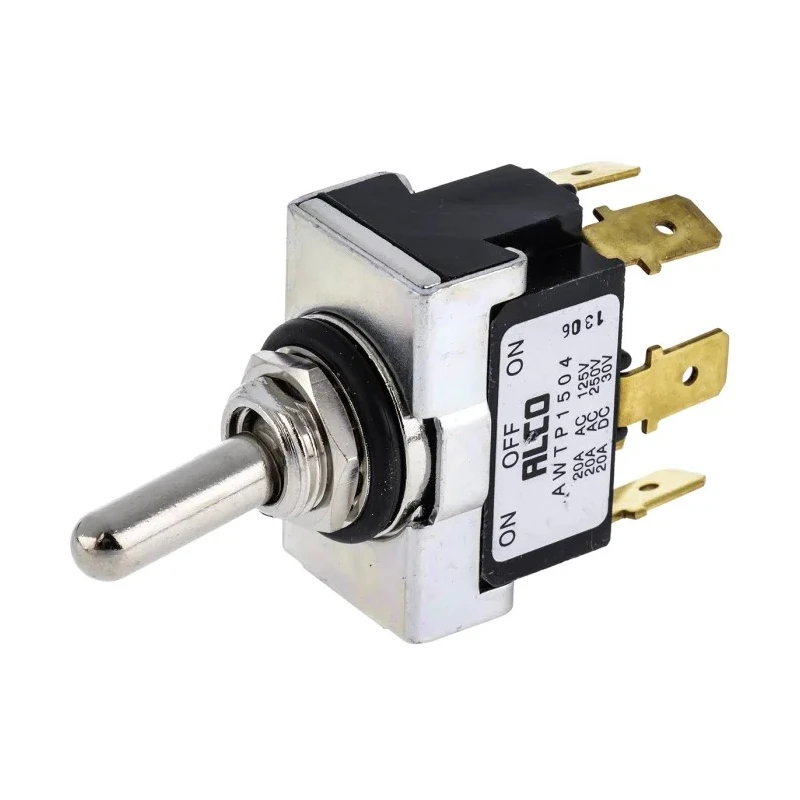

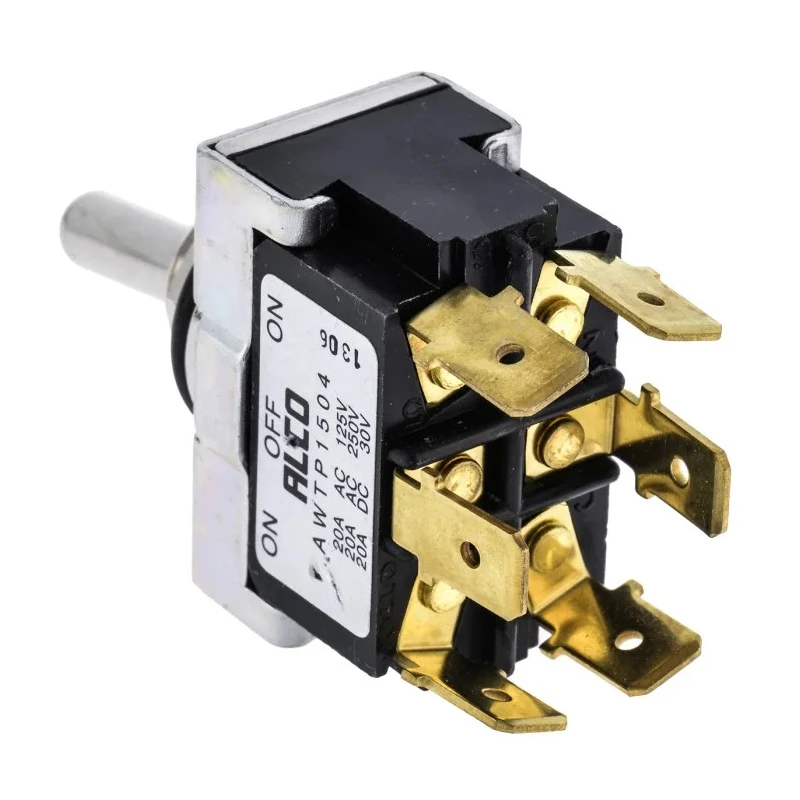

TE Connectivity Toggle Switch Panel Mount On-Off-On DPDT Tab Terminal 30 V dc 250 V ac AWTP1504
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | AWTP1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 8A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
| Bulgin Toggle Switch, Panel Mount, On-Off-On, DPDT, Screw TerminalBrand | Bulgin |
Key Features
- Panel mounting type with robust brass actuator and glass filled polyester case.
- Rated for 30 V dc and 250 V ac operation with 8A contact current capacity.
- Features silver plated contacts sealed to IP67 for dust and water ingress protection.
- Terminals are tab type for easy connection through 0.25 in receptacles or soldering.
- Designed for industrial environments with minimum operating temperature of -20°C and maximum of 70°C.
- Mechanical life expectancy of 40000 cycles ensures long-term reliable operation.
- RoHS compliant and approved under UL and CSA standards.
- Compact actuator length of 17.5 mm for panel space optimization.
Product Description
TE Connectivity AWTP1504 toggle switch is a durable panel mount switch designed for reliable On-Off-On switching in electrical circuits. Its DPDT (double pole double throw) contact configuration supports versatile electrical control applications.
The switch features a brass actuator of 17.5 mm length housed in a glass filled polyester case, offering excellent mechanical strength and chemical resistance. Silver plated contacts are sealed to achieve an IP67 rating, providing protection against dust ingress and water immersion enhancing suitability for harsh industrial environments.
Designed to operate with 30 V dc and 250 V ac contact voltages, the switch supports a contact current of 8A. The tab terminal type ensures easy and secure connections using 1/4 inch receptacles or direct soldering.
Operating temperature ranges from -20°C to 70°C accommodate diverse climate conditions and industrial setups. The mechanical life cycle rating of 40000 cycles reflects robust endurance for frequent switching operations.
The product complies with RoHS directives, affirming environmental safety, and has approvals from UL and CSA to guarantee electrical safety and standard compliance.
This toggle switch is suitable for various industrial, automation, electrical control panel, and manufacturing applications requiring reliable manual switching with enhanced protection against dust and moisture.
Panel mounting type with brass actuator and glass filled polyester case. DPDT contact configuration with On-Off-On switching operation. Rated for 8A contact current at 30 V dc and 250 V ac. IP67 waterproof sealing with silver plated contacts.
Tab terminal connections compatible with 1/4 inch receptacles or soldering. Operating temperature from -20°C to 70°C for industrial use. Mechanical life expectancy of 40000 cycles ensuring durability. RoHS compliant and UL, CSA approved for safety and compliance.
Explore more Toggle Switches and electrical components in the Switches & Sockets category on EnvMart for your automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a DPDT (double pole double throw) contact configuration, allowing for versatile electrical control applications.
It is rated for 30 V dc and 250 V ac operation with a contact current capacity of 8A.
The switch has an IP67 rating, providing protection against dust ingress and water immersion.
This model operates within a temperature range of -20°C to 70°C, making it suitable for various industrial environments.
It features tab type terminals, which are compatible with 1/4 inch receptacles or can be directly soldered.
The mechanical life expectancy is rated at 40,000 cycles, ensuring reliable operation over time.
The actuator is made of brass and is housed in a glass filled polyester case, providing strength and chemical resistance.
Yes, it is RoHS compliant and has approvals from UL and CSA, ensuring it meets safety and compliance standards.
The actuator length is 17.5 mm, which helps optimize panel space.
The toggle switch is manufactured in India.
It is suitable for various industrial, automation, electrical control panel, and manufacturing applications requiring reliable manual switching.
This model operates with an On-Off-On switching mechanism, allowing for multiple circuit control options.
