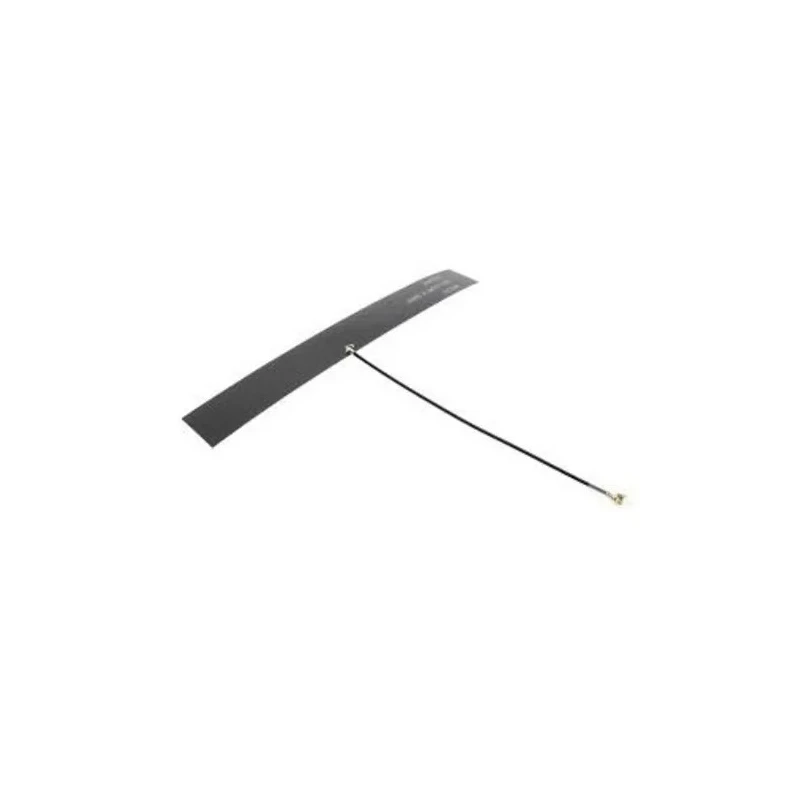

Molex Multi-Band Antenna T-Bar 698 MHz to 6000 MHz with UFL/IPEX MHF Connector 146234-0100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | UFL/IPEX MHF |
| Series | 146234 |
| Gain | 5dBi |
| Lead Length | 0.14m |
| Standards/Approvals | CHINA RoHS, RoHS |
| Maximum Frequency | 6000MHz |
| Connector Gender | Female |
| Minimum Frequency | 698MHz |
| Internal/External | Internal |
| RF Protocols | 2G (GSM/GPRS), 3G (UTMS), 4G (LTE) |
| Antenna Physical Form | T-Bar |
| Antenna Mount Type | Adhesive |
| Directivity | Omni-Directional |
| Number of Bands | 3 |
Key Features
- Compact T-bar physical form factor with adhesive mounting method.
- Operates on three frequency bands with 5 dBi gain for improved signal strength.
- Internal antenna with a lead length of 0.14 meters and a female UFL/IPEX MHF connector.
- Omni-directional directivity providing wide-area coverage.
- Designed for 2G (GSM/GPRS), 3G (UTMS), and 4G (LTE) RF protocols.
- Connector compatible with 50 ohm input impedance systems.
- Lead cable included with the antenna for ease of installation.
- Compliance with CHINA RoHS and RoHS environmental standards.
Product Description
The Molex 146234-0100 multi-band antenna features a wide operating frequency range from 698 MHz to 6000 MHz, suitable for modern communication applications requiring multi-band support including 2G (GSM/GPRS), 3G (UTMS), and 4G (LTE) standards. This T-bar form factor antenna is designed for internal applications with an adhesive mounting mechanism, providing easy installation on various surfaces.
This antenna includes a 0.14 meter lead length terminated with a female UFL/IPEX MHF connector, compatible with 50 ohm impedance systems commonly used in telecommunications and wireless devices. Its omni-directional directivity and 5 dBi gain help ensure reliable signal reception and transmission over wide coverage areas.
Compliance with CHINA RoHS and RoHS directives assures environmental safety and adherence to regulatory requirements. The antenna, which weighs only 1.3 grams, is ideal for applications requiring lightweight and compact design such as IoT devices, wireless routers, mobile telecommunications equipment, and embedded wireless systems.
Engineered to meet the demands of the electronic components sector, the Molex 146234 series provides stable performance and ease of integration in manufacturing environments. Its multi-band capability makes it a versatile solution for various industrial, commercial, and communication technology uses.
Compact T-bar antenna with adhesive mounting. Supports multi-band frequencies from 698 MHz up to 6000 MHz. Compatible with 2G, 3G, and 4G RF protocols for broad cellular coverage. 5 dBi gain and omni-directional pattern for effective signal propagation.
Includes female UFL/IPEX MHF connector and lead cable. Lightweight design with 1.3 grams net weight. RoHS compliant for environmental safety. Manufactured in China to ensure consistent quality.
This multi-band antenna is essential for electronic component manufacturers, telecommunications providers, and engineering professionals requiring reliable antenna solutions that support current wireless standards. Explore more antennas and components in the Electronics & Electricals category at EnvMart to expand your technical capabilities.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a wide frequency range from 698 MHz to 6000 MHz, supporting various communication protocols.
It features a gain of 5 dBi, which helps improve signal strength and reception.
The antenna uses an adhesive mounting method, allowing for easy installation on various surfaces.
It is equipped with a female UFL/IPEX MHF connector, compatible with 50 ohm input impedance systems.
It weighs only 1.3 grams, making it suitable for lightweight applications.
Yes, it complies with CHINA RoHS and RoHS environmental standards, ensuring safety and regulatory adherence.
The antenna features omni-directional directivity, providing wide-area coverage for signal propagation.
It has a compact T-bar physical form factor, designed for internal applications.
