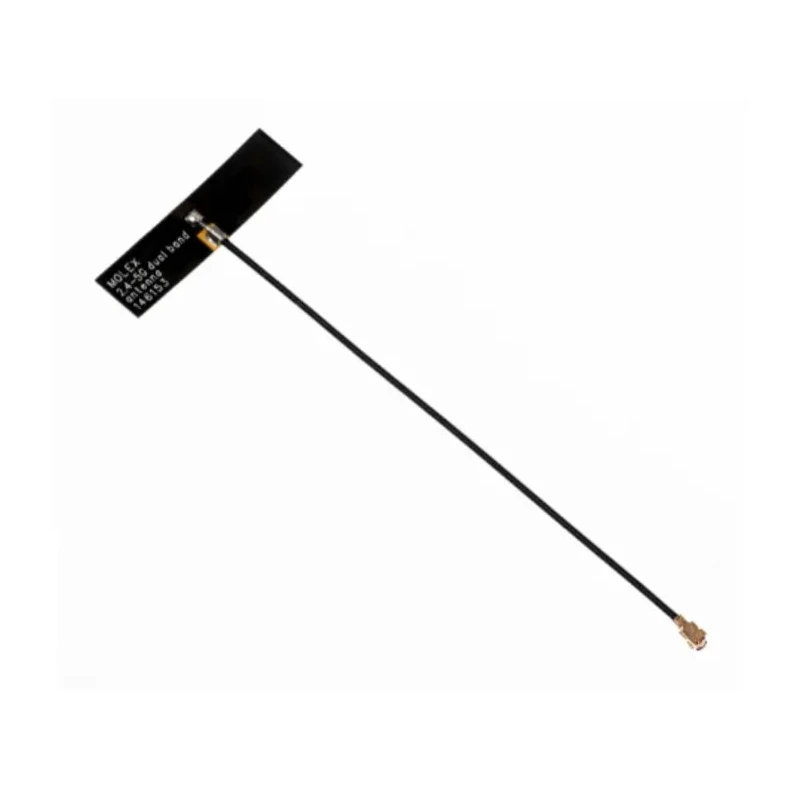

Molex Internal T-Bar WiFi Antenna with I-PEX MHF4 Connector, Dual Band 2400-5930MHz 3.7dBi Gain 150mm Cable 146153-1150

Name: Molex Internal T-Bar WiFi Antenna with I-PEX MHF4 Connector, Dual Band 2400-5930MHz 3.7dBi Gain 150mm Cable 146153-1150
Brand: Molex
SKU: 412405
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Cable Length	150mm
Connector Type	I-PEX MHF4
Series	146153
Gain	3.7dBi
Standards/Approvals	EU ELV, Halogen Free Status, REACH SVHC, EU RoHS, RoHS Phthalates, CHINA RoHS
Maximum Frequency	5930MHz
Connector Gender	Female
Minimum Frequency	2400MHz
Internal/External	Internal
RF Protocols	WiFi (Dual Band)
Antenna Physical Form	T-Bar
Antenna Mount Type	Adhesive
Directivity	Omni-Directional
Number of Bands	2

Key Features

High efficiency balanced dipole-type antenna optimized for 2.4 to 5 GHz applications.
3.7 dBi gain providing enhanced signal quality.
Omni-directional directivity for uniform signal coverage.
Includes 150 mm flex cable with female I-PEX MHF4 connector.
Adhesive mounting for easy installation on devices.
Supports WiFi 6E, Bluetooth, and ZigBee protocols.
Complies with EU ELV, Halogen Free, REACH SVHC, EU RoHS, RoHS Phthalates and China RoHS standards.
Ground plane independent installation, flexible for various device layouts.

Product Description

Molex 146153-1150 is an internal T-Bar WiFi antenna featuring a high-efficiency balanced dipole design with I-PEX MHF4 female connector and 150 mm flex cable. It operates over dual bands from 2400 MHz to 5930 MHz enabling connectivity for WiFi 6E, Bluetooth, and ZigBee wireless protocols. This antenna provides a gain of 3.7 dBi and omni-directional directivity for broad signal coverage within electronic devices.

The antenna uses adhesive mount technology allowing simple and secure installation inside enclosed equipment. Its ground plane independent design offers flexibility in placement without signal degradation caused by metallic surfaces. The ultra-light weight of approximately 0.682 grams ensures no significant impact on device weight or balance.

Compliance with strict environmental and safety standards such as EU ELV, Halogen Free Status, REACH SVHC, and multiple RoHS directives including EU and China versions, guarantees eco-friendly and safe operation. Manufactured in China with quality assurance, it is suitable for various industrial, consumer, and commercial electronic wireless applications.

Typical industrial applications include embedded WiFi networking devices, IoT modules, Bluetooth communication products, and ZigBee sensor networks. The antenna's compact T-Bar form factor and adhesive mounting make it highly suitable for integration in tightly packed PCBs and equipment enclosures in industries like telecommunications, electronics manufacturing, and smart appliances.

High efficiency balanced dipole antenna optimized for 2.4 to 5 GHz frequencies. 3.7 dBi gain with omni-directional radiation pattern. Dual band operation supports WiFi (Dual Band), Bluetooth, and ZigBee. Adhesive mounting provides easy installation options.

150 mm cable length with I-PEX MHF4 female connector. Complies with EU ELV, Halogen Free, REACH SVHC, EU RoHS, RoHS Phthalates, and China RoHS standards. Lightweight at approximately 0.682 grams suitable for compact devices.
